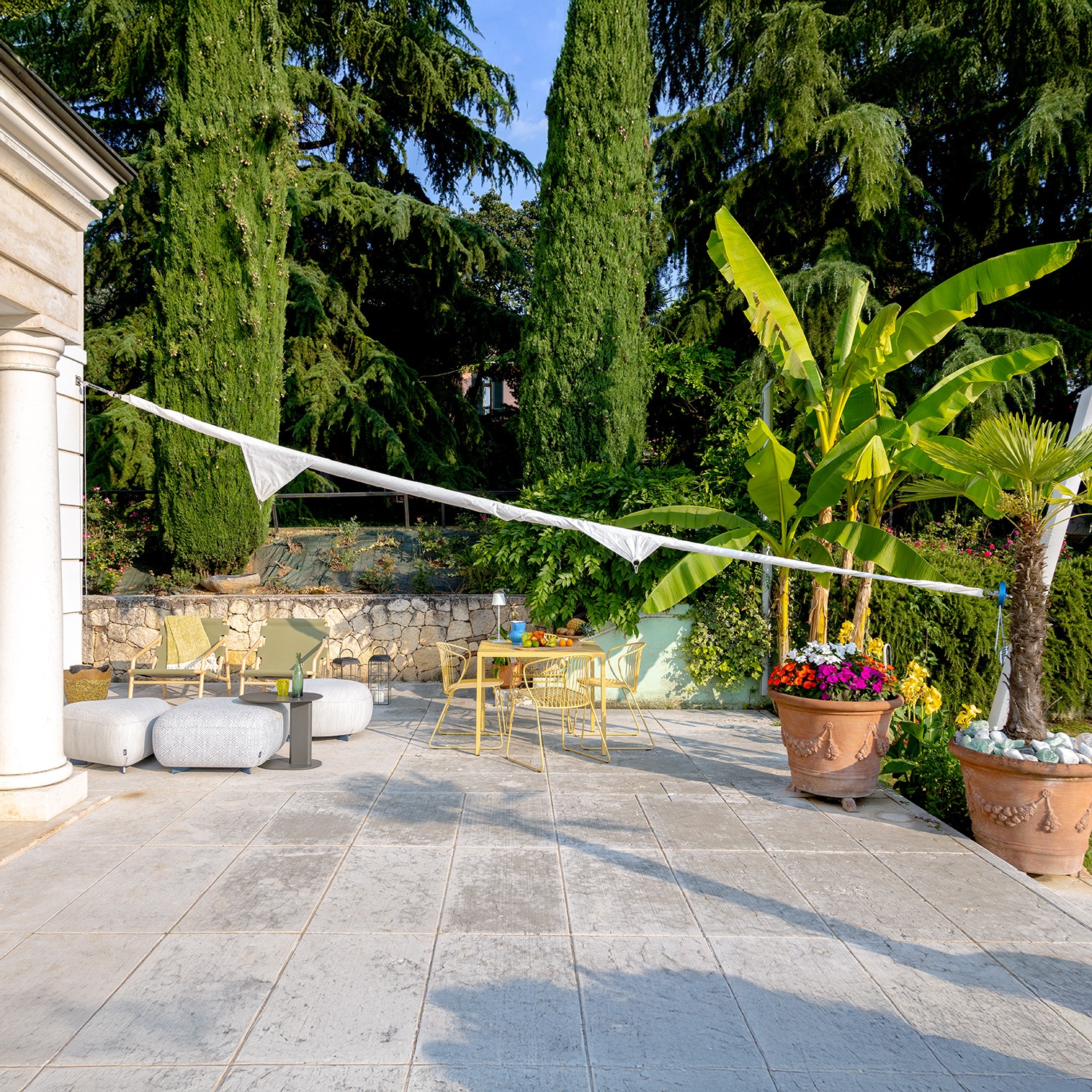

SolariA Furl Waterproof Roll-Up Our best retractable, radial-cut furling sun shade sail
Solaria Furl Waterproof, rolls up on itself thanks to the Maanta furler.
This Premium sail protects from rain and you will always be safe: in case of heavy storms or prolonged absences, you can quickly close the sail via the included furler.
The roll-up sail Solaria Furl Waterproof is made in radial cut with Purishade®-fabric.
- Roll-up rectractable shade sail, waterproof, with radial cut
- Manual roll-up sytem (no maintenance), retractable in seconds
- Corners with multilayer reinforcements
- Corner plates in 316 marine grade stainless steel
- The only one with adjustable perimeter straps
Product or design questions?
Get our free design help or call us on ✆ +1 888 269 9779
YOU CAN TRUST
Free design service
Delivery 24 / 48 hours
After-Sales Service
Accessories
Description
SOLARIA FURL waterproof: The roll-up sail with nautical design and technology
Nautical technology at the service of roll-up shade sails.
Solaria Furl was born from the need to quickly and safely roll up our
high-quality radial sails.
The performance of the product combined with ease of use allows opening and closing maneuvers in
a maximum of 27 seconds. The same can be said for installation and set-up operations that will
be within everyone's reach.
FURLER (winder): The nautical quality of the materials
(aluminum and 316 stainless steel) combined with the unique design means that this
product sets a new standard in roll-up retractable shade sail canopies.
SOLARIA: Radial-cut sail that allows greater distribution of the
tension,
structural rigidity, durability and better wind resistance (up to 38 mph).
Radial cutting invented in 1983 by sails designer Tom Schnackenberg introduced a
revolution in terms of fiber orientation and thus cutting as well as seaming. Radial sails are
more wind resistant and last longer because of the more even tension and load distribution.

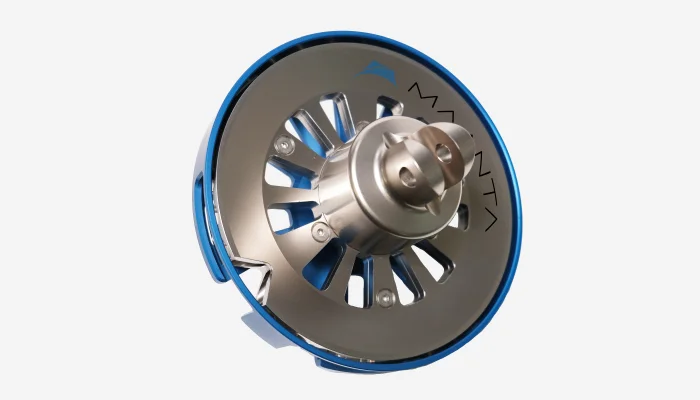

THE FURLER OF SOLARIA FURL
We started with the idea of using a nautical gennaker
furler. Soon, however, the Maanta team realized that the requirements for a shade sail are
completely different. After many months of planning, we made the Maanta furler from a solid block of aluminum.
This machining from solid makes the piece unique not only in design but also in technical features.
Large bearings are specifically needed to support the horizontal force exerted by the sail, thus solving another major critical issue.
This machining from solid makes the piece unique not only in design but also in technical features.
Large bearings are specifically needed to support the horizontal force exerted by the sail, thus solving another major critical issue.
WHY CHOOSE A MAANTA FURLING SAIL?
THE FURLER, THE S-GRIPP TECHNOLOGY AND THE MILLING MACHINED FROM SOLID.
The particular S-shaped hollow of the furler (S-GRIPP technology), has been studied in order to prevent the endless line necessary for winding from slipping. It is made from solid, i.e., 'hollowed out' from a block of aluminum by means of a CNC lathe.
Very elaborate milling ensures a performance suitable for shade sails and a unique design. This solution requires some very complicated machining but eliminates any risk of rope slippage that would cause difficulties in opening and closing. Rope wear is also greatly reduced compared to a classic nautical furler.
THE CORNERS WITH STAINLESS STEEL PLATES AND THE ADJUSTABLE PERIMETER STRAPS
We use marine grade 316 stainless steel corner plates for all of our sails. The reinforcement plates are part of the tensioning system which, thanks to the adjustable perimeter straps, an exclusive Maanta innovation, are essential for uniformly tensioning the entire sail.
The innovative system with individually adjustable perimeter reinforcement straps allows uniform distribution of tension over the entire surface of the sail.

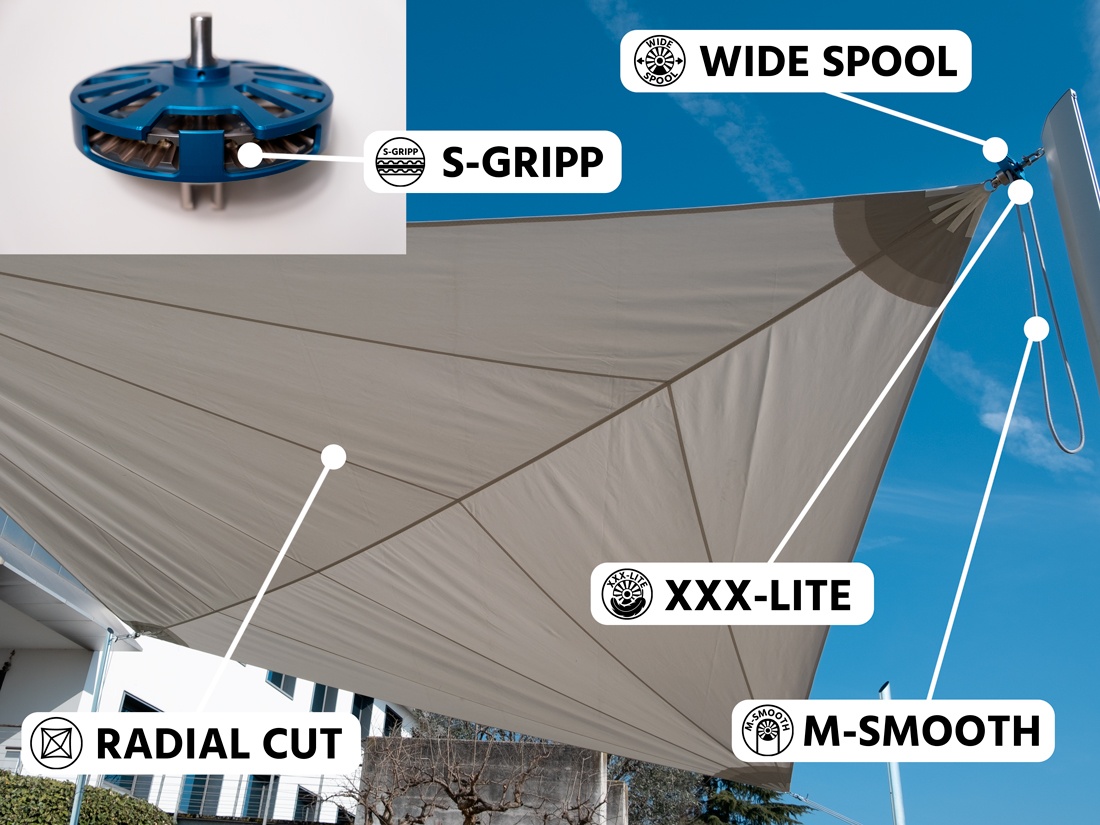

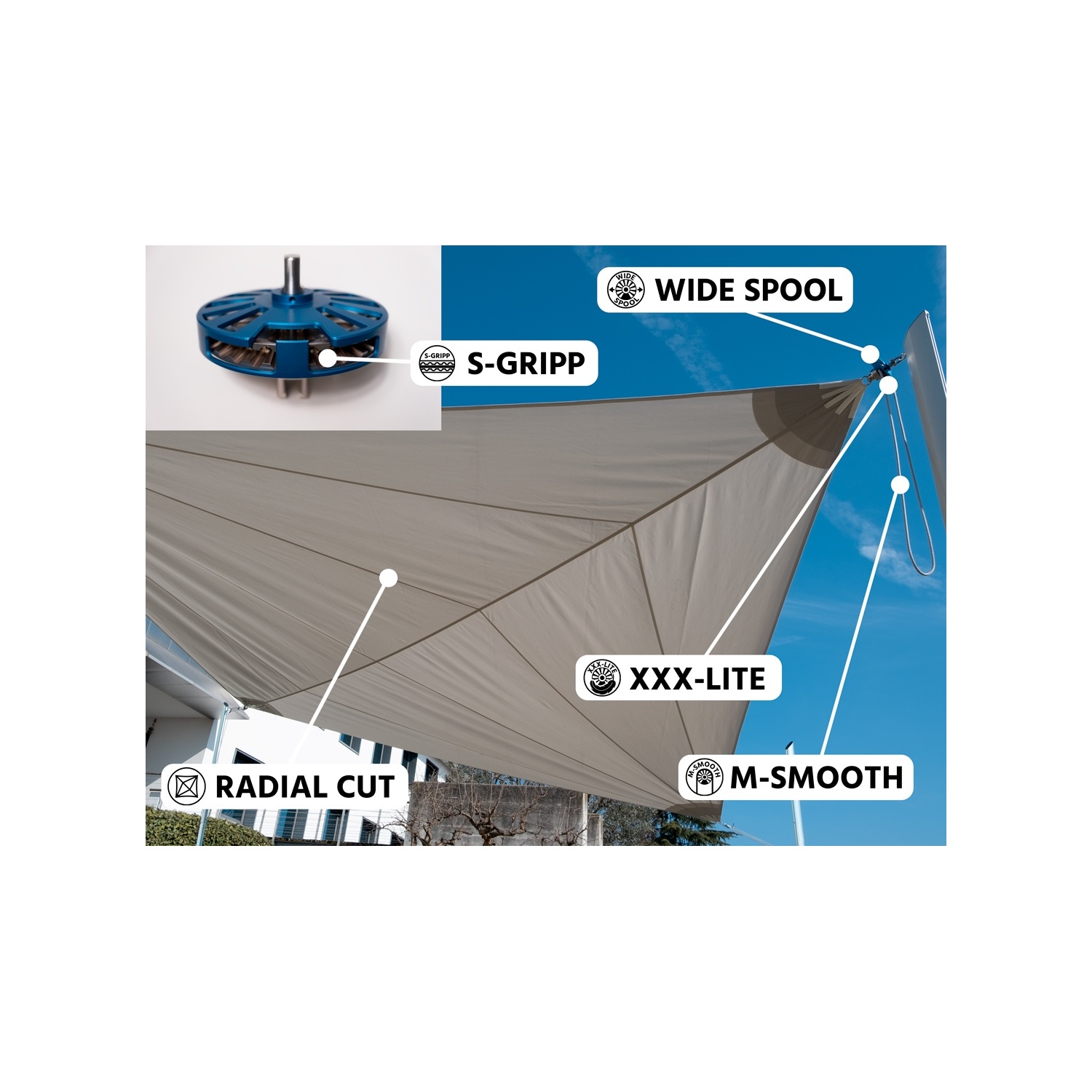

THE TECHNOLOGIES
RADIAL CUT:
Radial seams, among other advantages, better withstand the stress of continuous
winding and unwinding.
WIDE SPOOL:
Larger diameter coil increases the speed of opening and closing.
XXX-LITE:
The lightness created through design and choice of materials enables faster and
more effective windings.
S-GRIPP:
The special S-shaped hollow deforms the nautical rope and ensures greater grip,
less wear and tear, and more effective and safer windings.
M-SMOOTH:
Maanta smooth! No rod and no winding winch.
The furling system via nautical rope ensures smoothness in every maneuver and is designed to be installed just as smoothly and pleasantly!
The furling system via nautical rope ensures smoothness in every maneuver and is designed to be installed just as smoothly and pleasantly!
BENEFITS
1 STEP CONFIGURATION: Muscle Kit X3 included
Thanks to the included Muscle X3 kit, you will be able to tension the sail diagonally
without having to measure to the centimeter. Never again will sails be too small or too big: in just one
step you will be able to configure the sail and have it at home ready for installation.
COVER CAN BE OPENED/CLOSED IN SECONDS
In seconds, with minimal force we will go from sunshine to shadow, from starry sky to
modern cover!
DESIGN
The design of the furler is modern, essential and minimal. It is inspired by modern
nautical furling but also by wide-ranging elements of furniture and objects.
ROBUST, MAINTENANCE-FREE MATERIALS
The choice of combining aluminum elements and polypropylene fabric was made to avoid rust
and wear problems that would be very troublesome.
ENVIRONMENTAL RESPECT
Aluminum, stainless steel and all Maanta fabrics are easily recyclable and environmentally
friendly. All Maanta shipments are made with 'UPS Carbon Neutral' service to fully offset the
CO2 produced by transportation!
EASE OF UNLOADING AND ASSEMBLY
Upon receipt of the goods, there will be no need for forklifts. Assembly will take about 30
minutes!
ABRASION-RESISTANT AND ANTI-MILDEW
Maanta fabrics are selected for their specific abrasion resistance and will not have
problems with wear due to the many openings and closures. Especially the Purishade® fabric demonstrates much more abrasion resistance than its competitors
in Polyester and Acrylic. Both fabrics are also mildew resistant!
A LITTLE HISTORY ON THE DESIGN OF THE FURLER MAANTA
Our research and development crew worked on this project for a long time. Our best sun
sail needed a smart system so that it could be furled and unfurled at will. We started by analyzing
the best players in the nautical market, however, considering the fact that furlers, or nautical
furlers, furl vertically while sail shades roll up horizontally - the distribution of forces
is therefore completely different.
We then started by creating a WIDE SPOOL furler that allows more fabric to be wound than we had
seen.
In the hand, the solidity of the furler is immediately noticeable. The
robustness of the furling mechanism is essential to ensure smoothness and ease of operation. The
design and rigorous choice in nautical materials was made to meet the XXX-LITE standards we set for
ourselves.
Our S-GRIPP technology was developed to prevent the nautical rope from slipping
on the furler: through a forced S-shaped path the rope is 'embedded' in the slot. This
ensures less wear, a secure grip and effective windings without risk of slipping due to the load.
After several tests, here we are at the end of the road: SOLARIA FURL the first
designer roll-up shade sail produced with nautical materials and
technologies.
Data sheet
SOLARIA FURL Waterproof: THE SHADE SAIL ROLLING UP ON ITSELF
The Maanta crew has been well attentive to the needs and demands
of customers, thus integrated nautical technology with shade sails.
Solaria Furl was born from the need to manually furl shade sails, quickly and
safely.
The Maanta furler is made of anodized aluminum painted in a "stainless
steel" look. It has oversized bearings to ensure the best smoothness even under
load. These are important details since shade sails work horizontally and not vertically!
Solaria Furl with waterproof fabric is comes complete with its Furl Kit, consisting
of furler, swivel, Muscle
X3 system witch wall plate and endless line.
PURISHADE® WATERPROOF FABRIC
The first waterproof yet breathable fabric that respects nature and combines toughness, absolute
waterproofness and micro-breathability. It combines eco-friendliness and textile performance
with an aesthetic impact of excellence.
Purishade® by its nature is water-repellent, stain-resistant, and resistant to mold, moths and
bacteria.
Abrasion resistance is measured by a test (UNI EN ISO 12947): Purishade® required 35,000 cycles,
compared with 600 for common polyester and 100 for common acrylic fabrics.
The mechanical strength developed by the fabrics is measured through another laboratory test
(UNI EN ISO 13934-2). Here, too, the results are very clear: Purishade® is 40% stronger than
other common polyester fabrics.
Purishade® is available in 5 colors: ivory, beige, cloud, white and graphite.
You can continue reading with insights on the Purishade® page or request free samples by clicking here.
DATA SHEET
| Model: | Solaria FURL waterproof |
| Available sizes: | Standard and Custom via online configurator |
| Total weight | Variable based on fabric size |
| Fabric | |
Fabric types | Purishade®: Olefin Polypropylene |
Fabric weight | Purishade®: 270 gsm |
| Waterproof | Yes, with sealed seams |
Sealed seams | Yes |
Maximum area | 25 m² |
Wind resistance | Purishade®: 32-38 mph |
Fabric cut | Radial |
| SAIL STRUCTURE | |
Cut | Radial |
Seams | Triple stitch (zigzag) |
Corners | Triple reinforcement |
Plates | 316 stainless steel |
Perimeter | Adjustable straps |
| FURLER STRUCTURE | |
Body | Material: Aluminum and Stainless Steel AISI 316 Color: Anodized in blue and stainless steel |
| Swivel | Material: Aluminum Color: Stainless Steel |
Endless-line | Hand-spliced nautical |
| PACKAGING | |
Box sizes | 2 boxes, maximum size 19x24x27 inches |
Package contents and giveaways

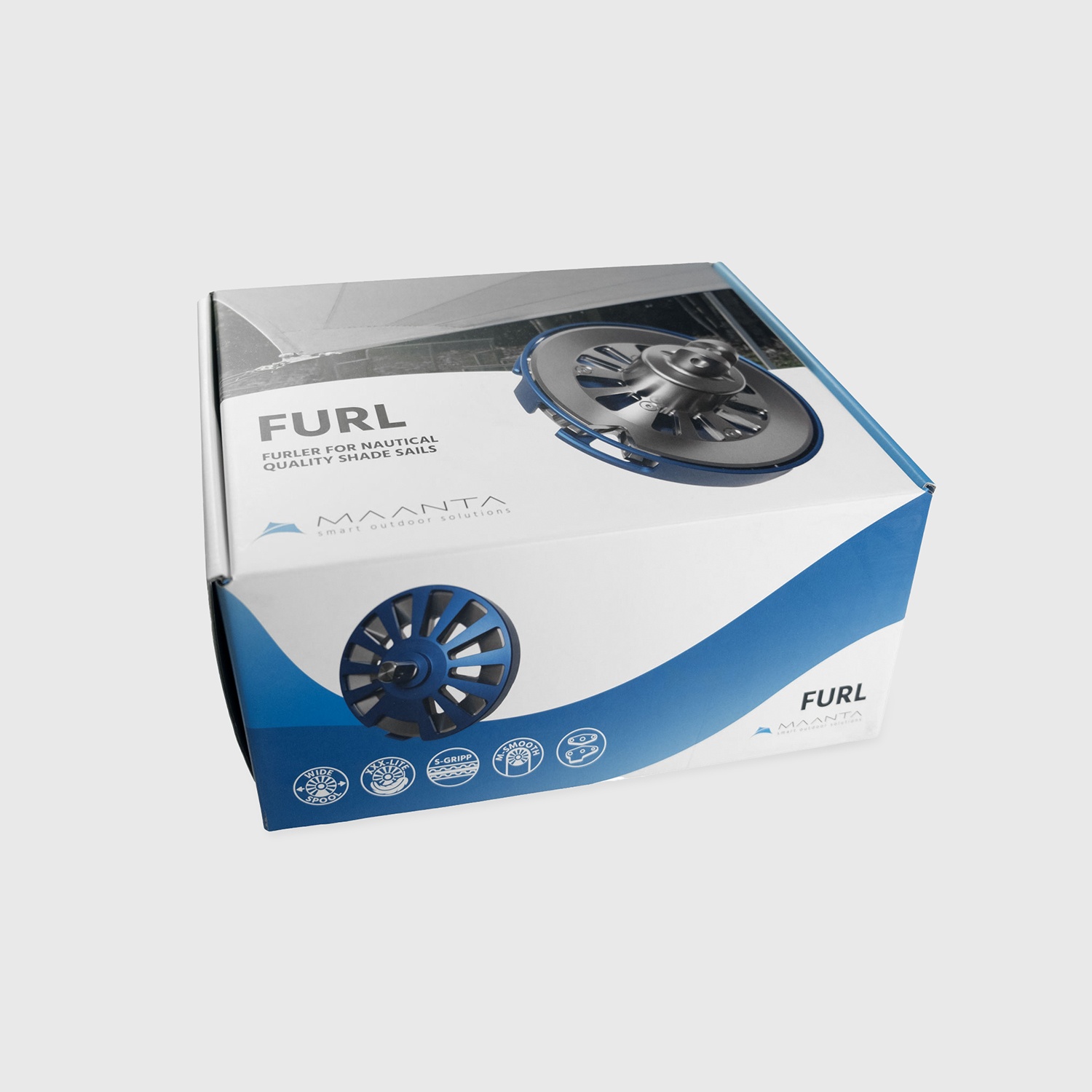

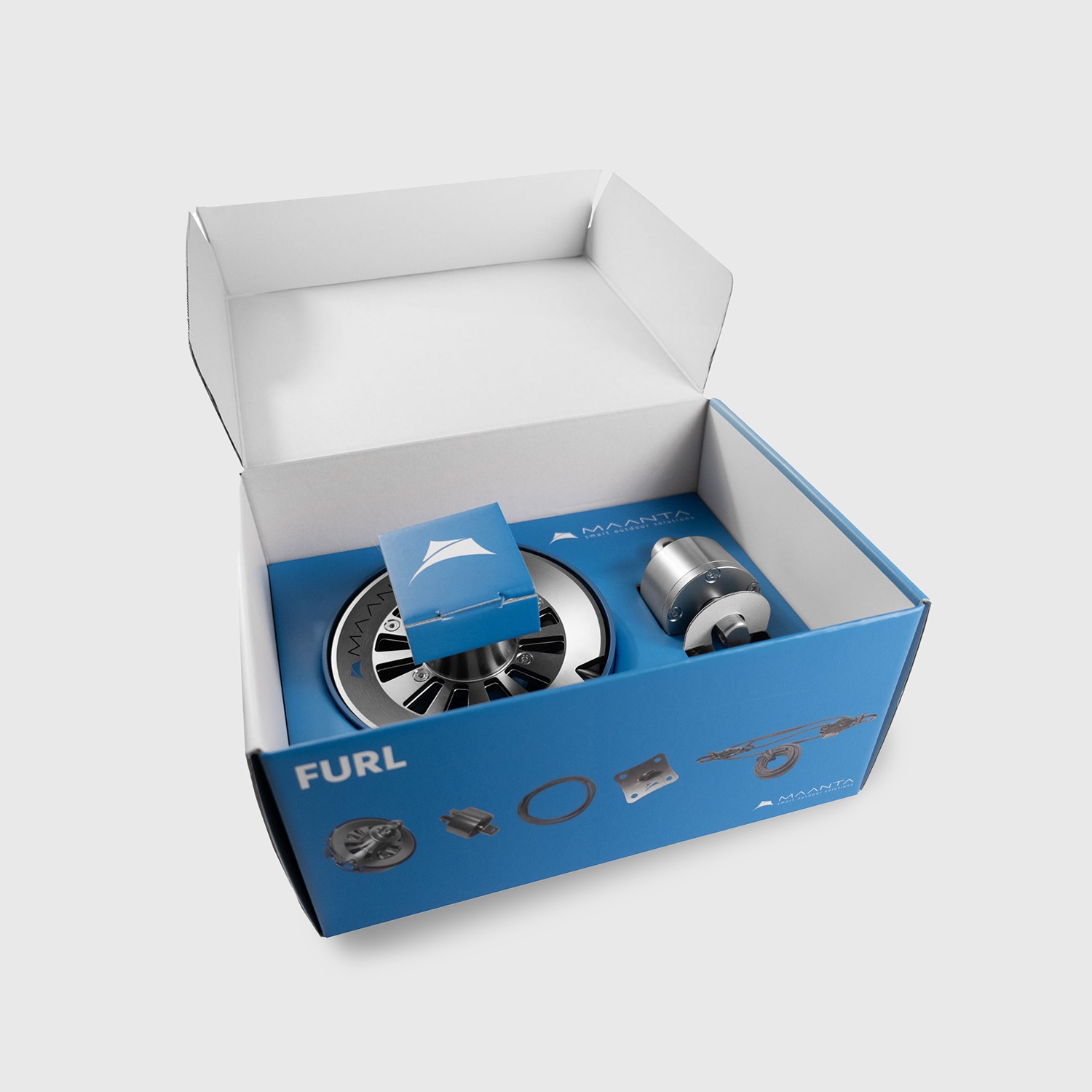

PACKAGE CONTENTS
Solaria FURL waterproof contains all the necessary accessories. This sales policy will
allow you to have a complete product without any surprise.
On this page you will find the included elements.
INCLUDED ELEMENTS
MAANTA FURLER

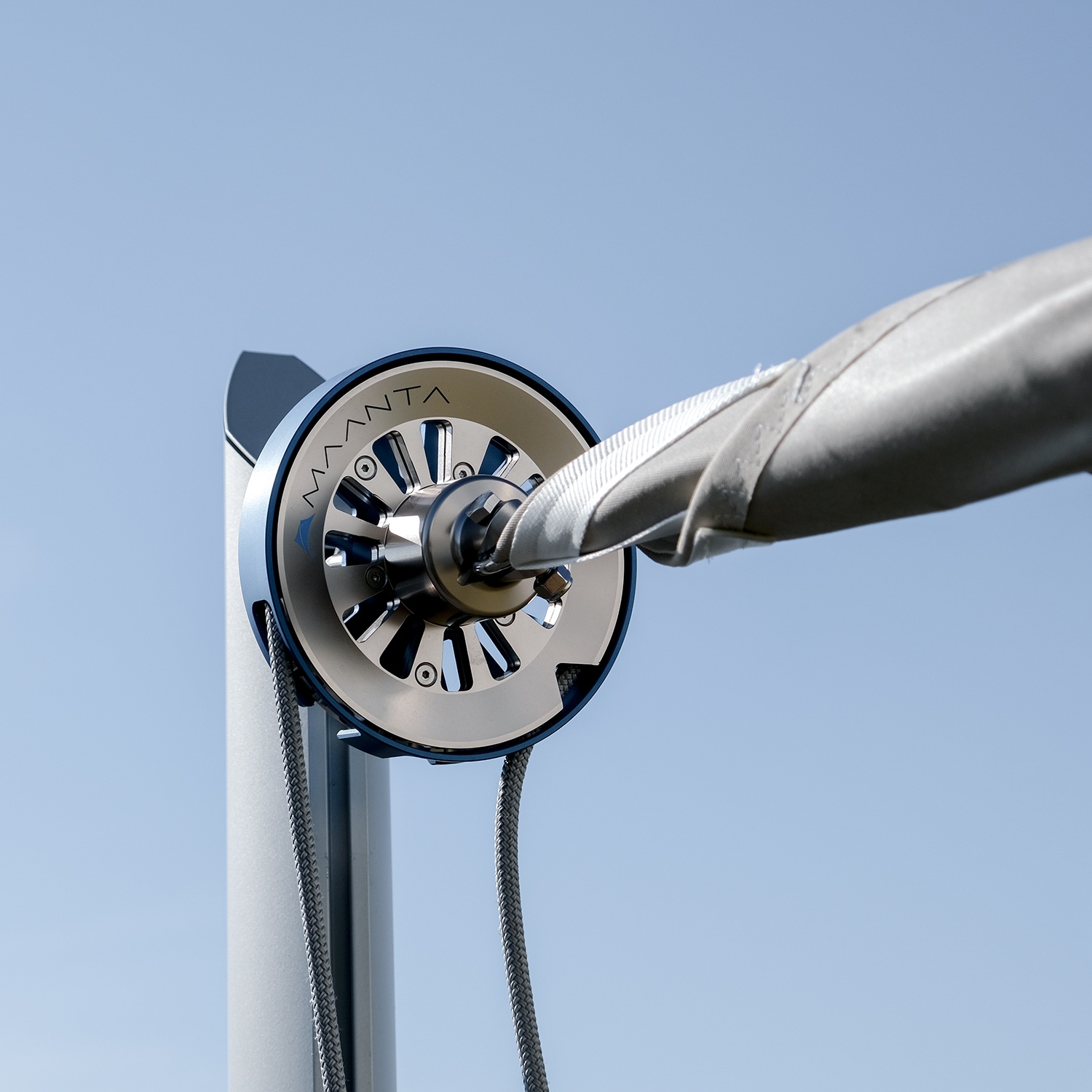

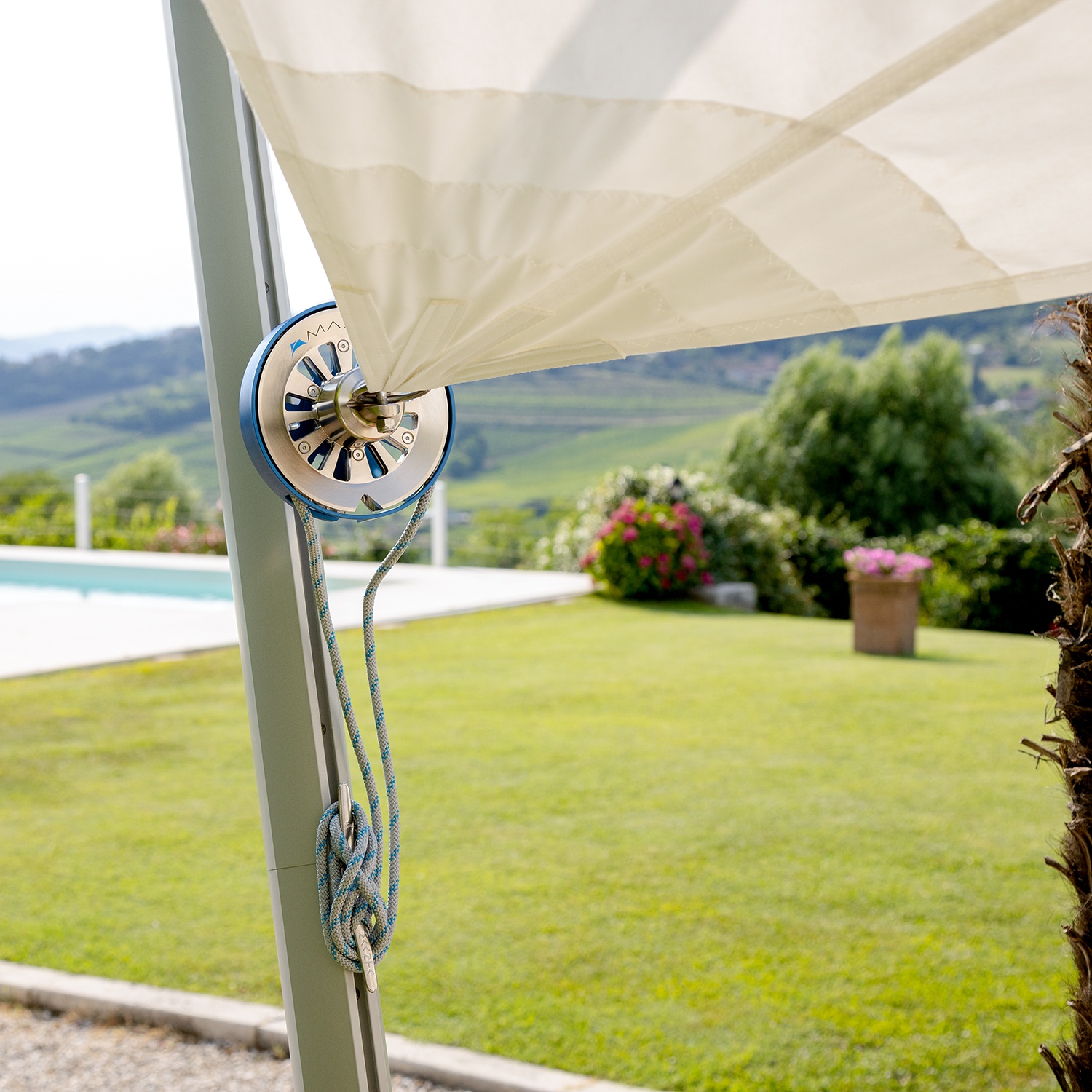

The furler drum is the heart of the furling system. The furler
turns and rolls the sail onto itself via an endless line that fits into the hollow with S-GRIPP technology.
Winder swivel
The swivel is installed on the opposite side of the furler. Thanks to the bearings, it allows
the sail to furl without stressing the fabric.
Muscle X3
The system includes a Muscle X3 kit with wall plate, our tensioning system via pulley
transmission that allows the sail to be tensioned and the furling diagonal to be secured.
Additional fixing accessories are not included. These may be chosen according to the number of
corners to be fixed. See installation examples

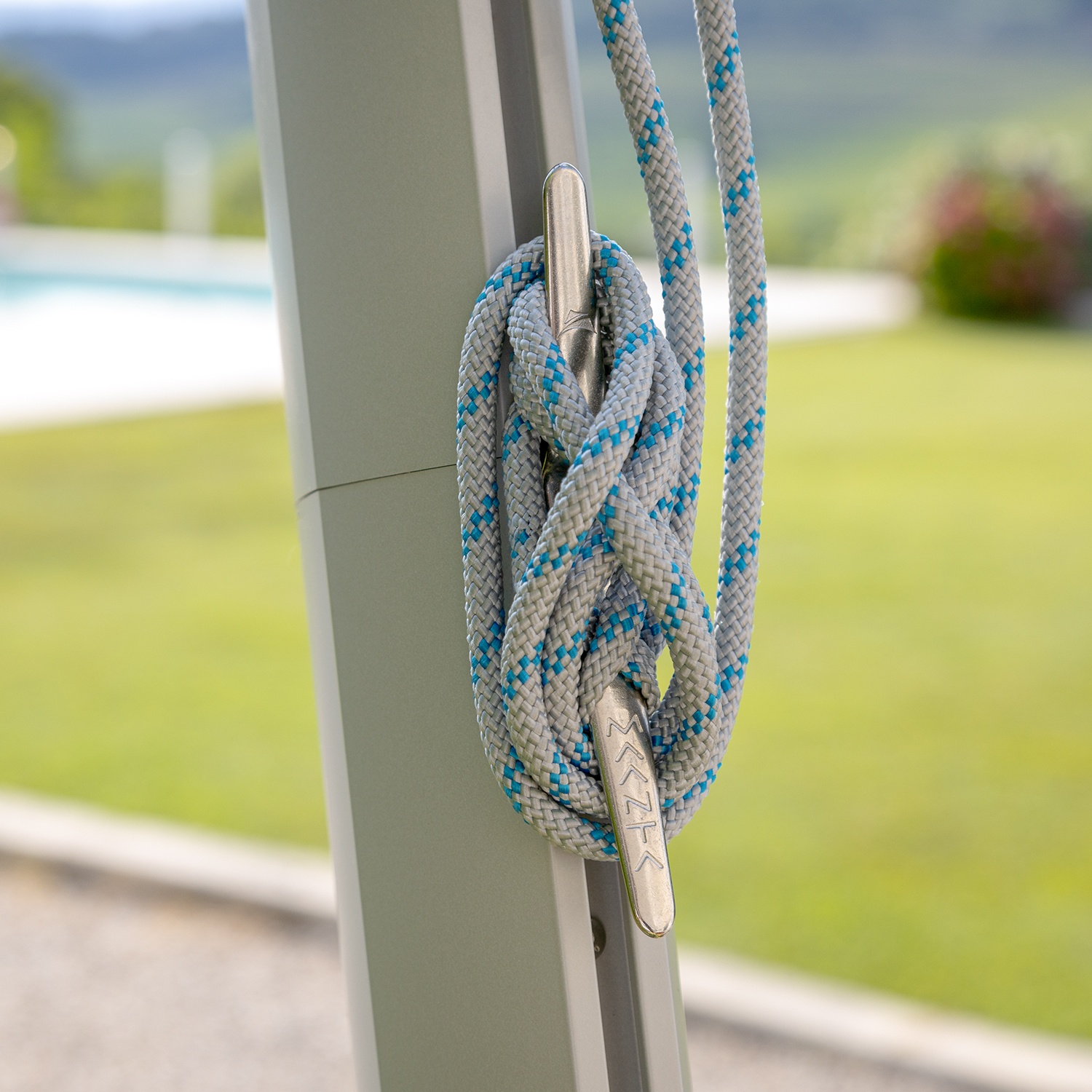

Spliced, endless line
The line used to furl the sail is endless. This avoids having dozens of meters of line that
would fall to the ground. The joining is done by hand in Italy.
Quick-release carabiners
Quick-release carabiners are included in our products to ensure a fast, secure and reliable
connection between the elements. This allows our customers to use the equipment efficiently and with maximum
safety.
INSTALLATION EXAMPLES AND OPTIONAL ACCESSORIES
Two walls and a Maanta pole
The roll-up diagonal AC will be fixed to the two walls. The Furler and its
swivel will need to be attached via two optional Muscle X3 kits.
Optional accessories for this configuration:
1 x poleAlu Simple or Ulisse
2 xMuscle X3
One wall and two Maanta poles
The roll-up diagonal AC will be attached to the wall and the shade sail pole. Maanta poles
already contain the Muscle X3 kit.
Optional accessories for this configuration:
2 x poles Alu Simple or Ulisse
1 x Muscle X3
One wall kit and three Maanta poles
The roll-up diagonal AC will be attached to the wall and the shade sail pole. Maanta poles
already contain the Muscle X3 kit.
Optional accessories for this configuration:
3 x poles Alu Simple or Ulisse
Four Maanta poles
The roll-up diagonal AC will be attached to the two poles that are included with the Muscle X3
kits.
Optional accessories for this configuration:
4 x poles Alu Simple or Ulisse
Instructions & Info
HOW TO INSTALL SOLARIA FURL
Installing Solaria Furl is easy and does not require
specialized labor or specific equipment.
The furl kit comes pre-assembled,
simply follow the steps in the installation video,
or in the printed guides inside the package.
