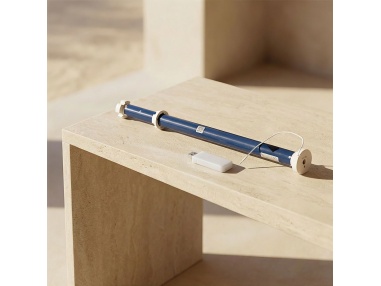

Motor + WiFi Bridge for roller shades Automate your roller shades with voice control

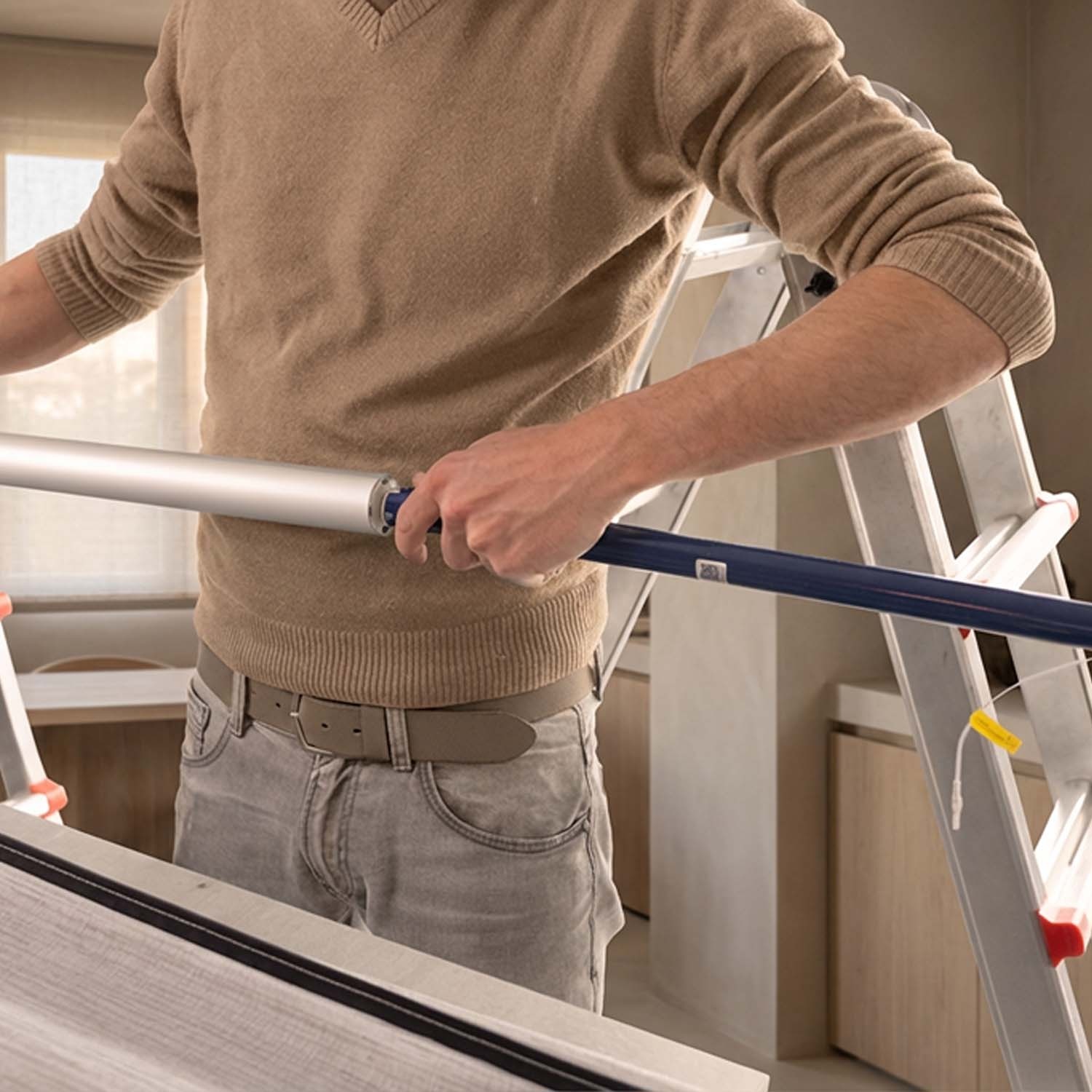

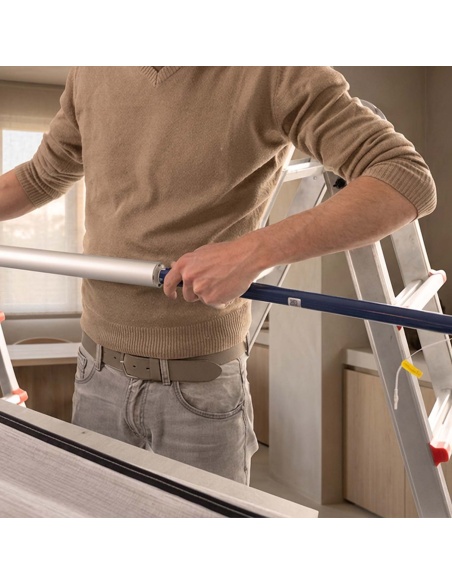

The Maanta roller shade motor installs directly onto the winding shaft in just a few minutes, with no electrician and no wall work required.
Quiet, compact and USB-C rechargeable: control it with the multi-channel remote or, with the optional Wi-Fi Bridge, from your smartphone using Alexa and Google Home.

Built-in USB-C rechargeable battery: 5V power supply, no fixed wiring, no electrician needed. Charge it just like a smartphone.
Speed Regulation & Noise Reduction: adjustable speed with noise levels under 35 dB – quieter than a whisper.
Integrated radio receiver: ready to use with the included remote, 433.92 MHz frequency, no extra modules required.
Smart home compatibility: Matter, Thread, Zigbee, Radio+: works with Alexa and Google Home via the optional Wi-Fi Bridge.

For the version with multi-channel remote control, click here.

Total price

$ 169.00 $ 169.00

Select quantity and buy

Order now and receive it by

with DHL Express

Free design service

After-Sales Service

Delivery 24 / 48 hours

Freedom from electrical wiring

No cables. No electrician.

The motor integrates a rechargeable lithium battery via standard USB. No dedicated electrical system, no technical intervention.

A single charge covers weeks of normal use.

No cables. No electrician.

Freedom from electrical wiring

The rechargeable lithium battery at 5V, Class III extra-low voltage, integrated into the motor, eliminates all dedicated electrical wiring. Simple charging with any standard USB charger. A single charge covers weeks of normal use.

No other roller shade motor so radically eliminates dependence on electrical wiring.

Smart Home

Smartphone control

One device, all integrations: smartphone app control, voice commands with Alexa and Google Home.

Quietness

Speed adjustment

Electronic speed regulation: noise level below 35 dB, comparable to a whispered conversation.

Safety

Overload protection

Anti-overload protection with automatic stop at limit switches: the motor stops on its own, every time.

Precision

Jog Mode

Multiple programmable stop positions, including favourite position and soft stop.

Battery life

Long-lasting battery

Over 6 minutes of continuous operation per charge. Daily use morning and evening: one charge lasts weeks.

Certified

TÜV SÜD Certification

EMC, RF and electrical safety tests passed. CE, FCC-ID, RED, RoHS, WEEE, ErP compliance.

Everything you need: guides and instructions

Document / Video	Format	Action

Technical specifications

Compatibility	Compatible only with Maanta's Kyma and Recta indoor roller blinds
Non-compatibility	Not compatible with Maanta's outdoor drop blinds
Power supply
Power supply	230 V/50Hz – 5V D.C.
Power supply type	Via direct connection with Type C cable, 5 Volt
Motor performance
IP rating	IP20
Opening speed	28 rpm
Torque	1.1 Nm
Noise level	<35 dB
Smart functions
Favourite position	Yes, programmable
Soft stop	Yes
Jog mode	Yes
Protections	Overload protection, automatic stop at limit positions
Communication and control
Radio frequency	433.92 MHz
Installation
Positioning	Right or left (reversible)
Environment and certifications
Operating temperature	-10°C / +60°C
Certification	CE
Blind compatibility	Recta, Kyma (Maanta indoor roller blinds)
Warranty	2 years

Read less -

Read more +

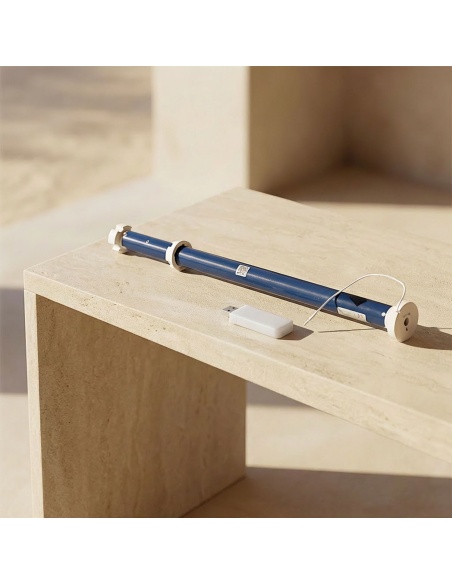

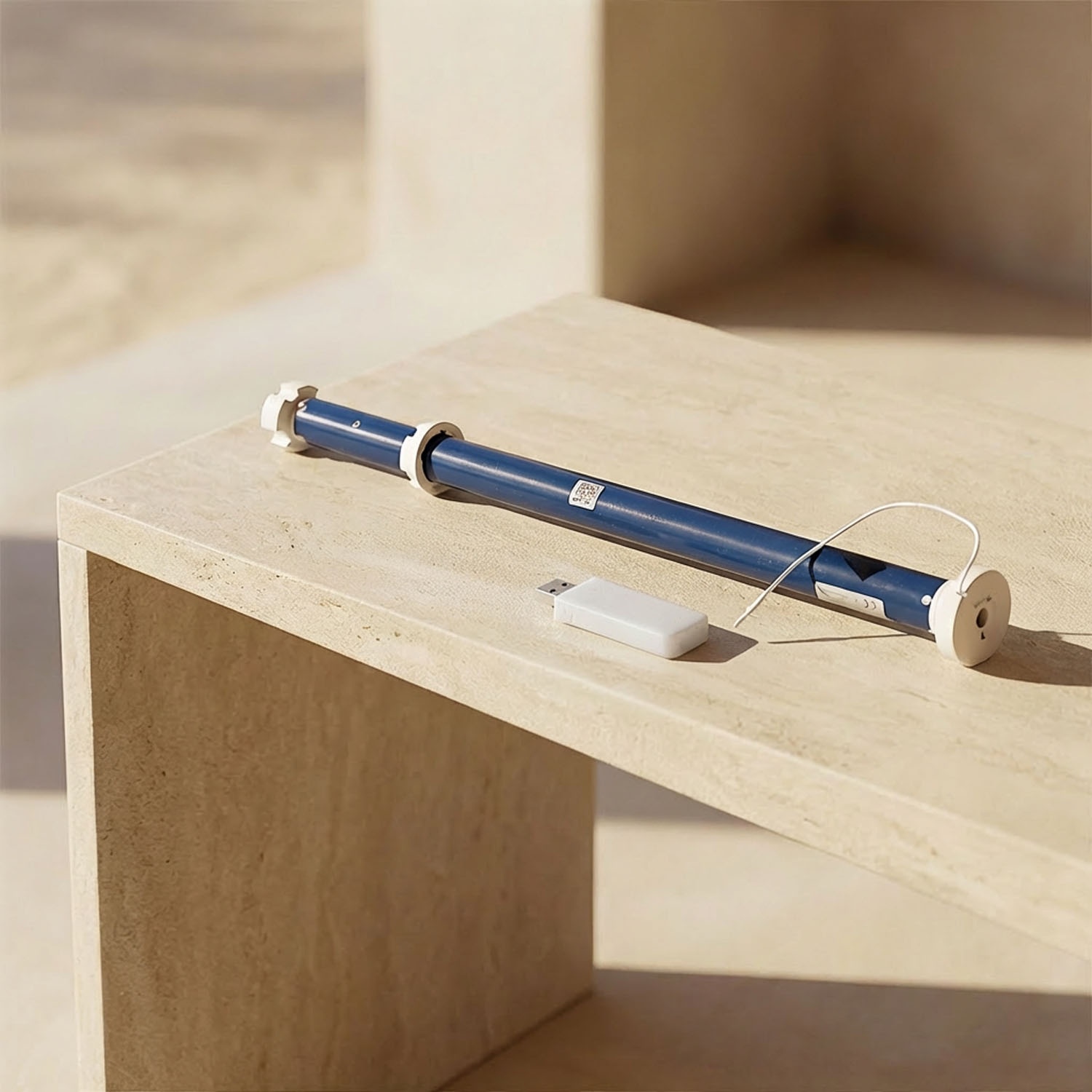

What you receive with the motor

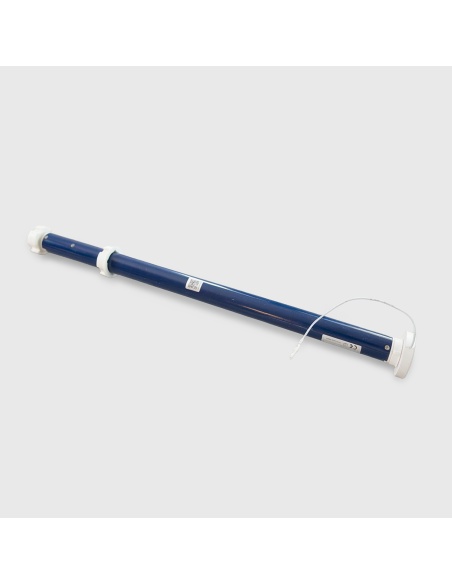

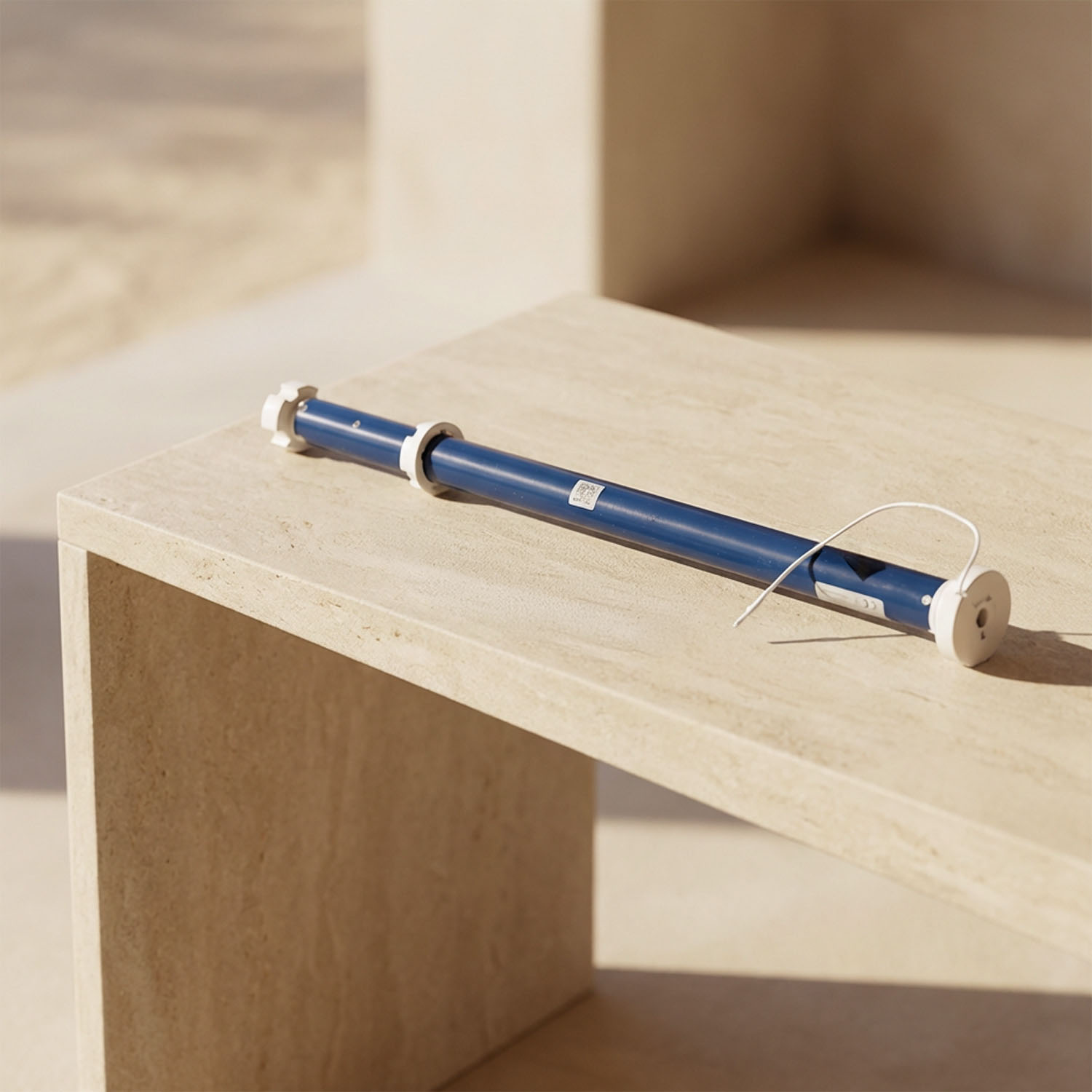

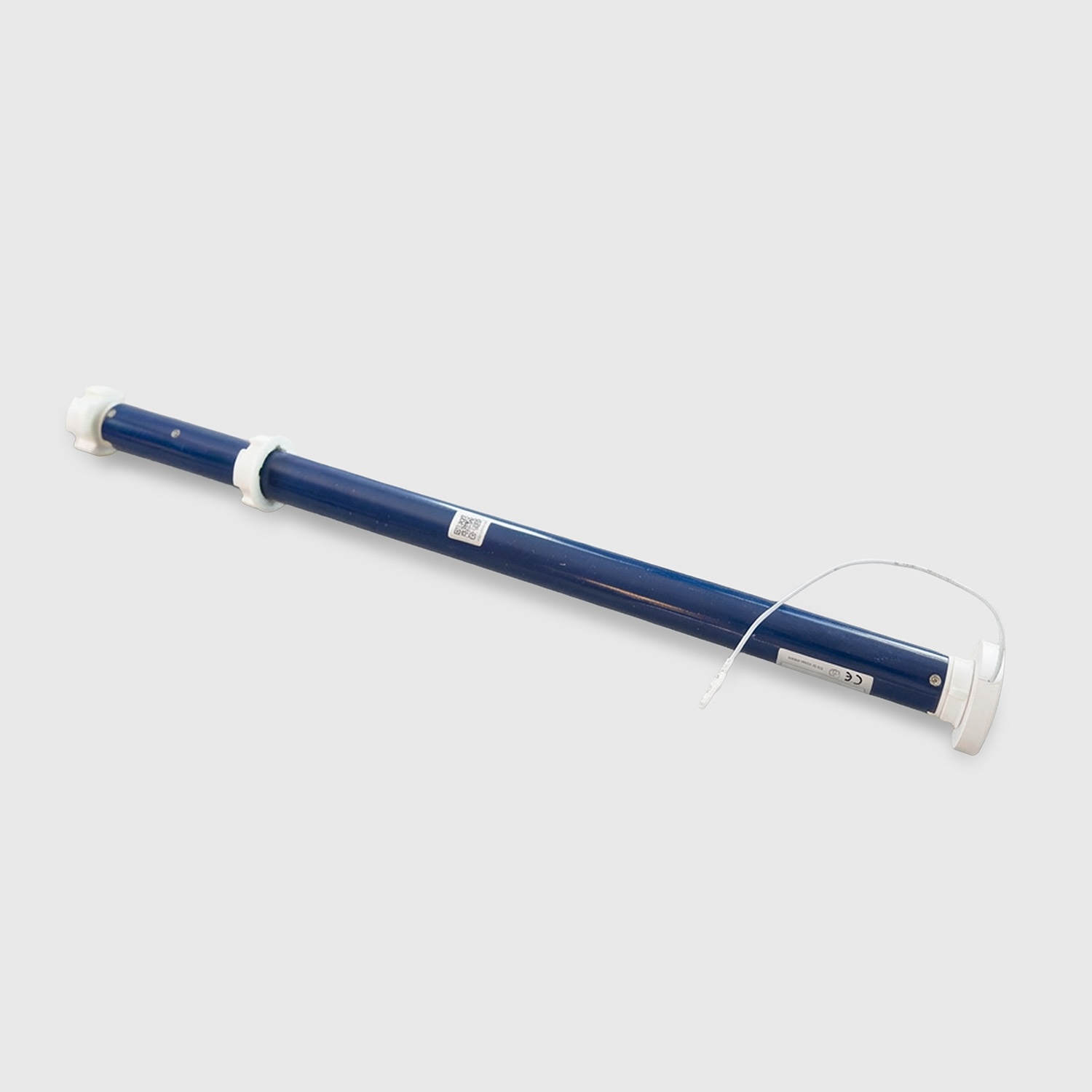

Tubular motor

Rechargeable tubular motor with integrated lithium battery. It fits directly into the winding shaft of Recta or Kyma awnings, on either the right or left side as you prefer.

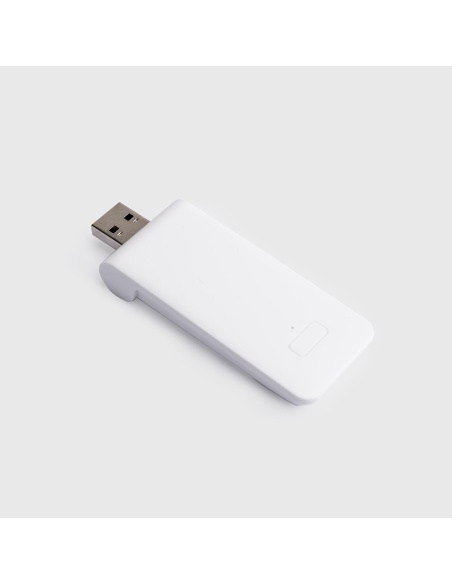

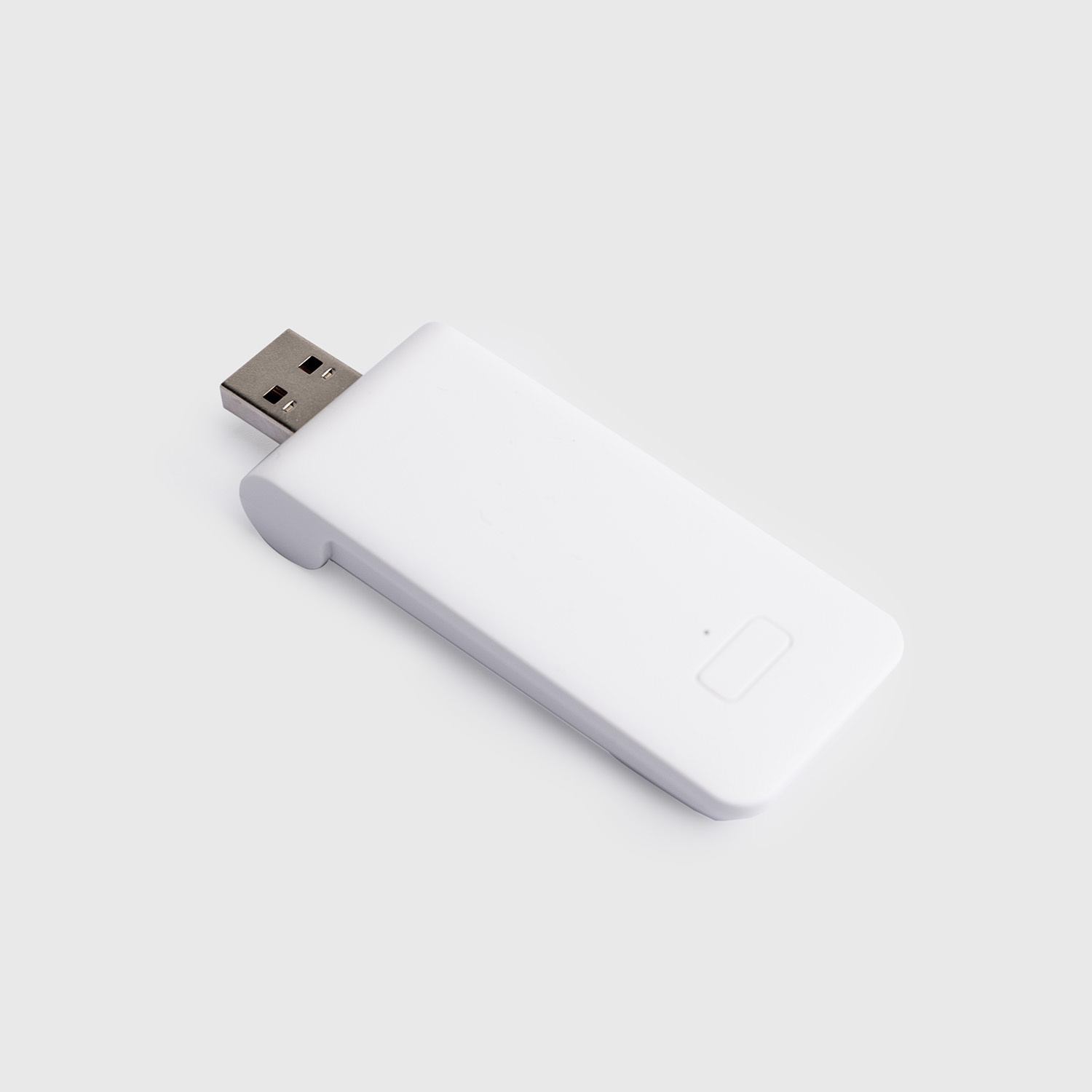

WiFi Bridge

Wireless device to connect to your home router. Enables smartphone control and voice commands with Alexa and Google Home.

Adapters for the winding shaft

Adapter set for connecting the motor to the 1 9/16" winding shaft of Recta and Kyma awnings.

Installation instructions

Manual with illustrated instructions for installation and initial setup via remote control. Also available in digital format on the product page.
