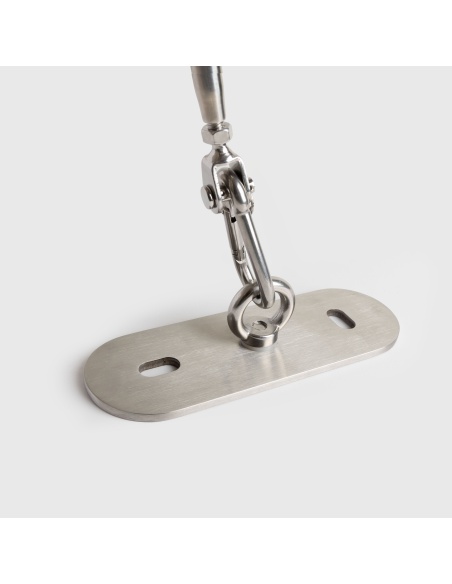

Sartya Wall Plate Kit Anchor Plate for Sails on Insulated Walls

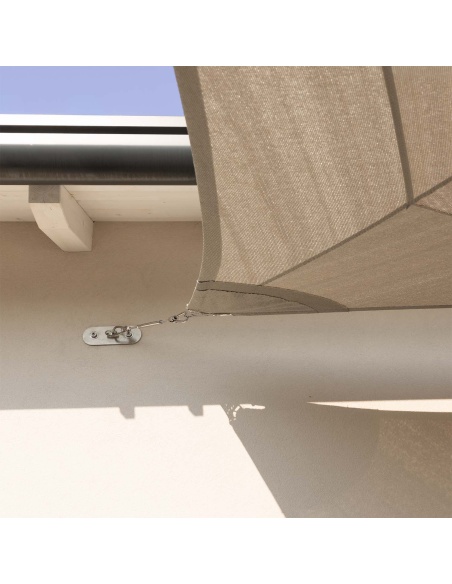

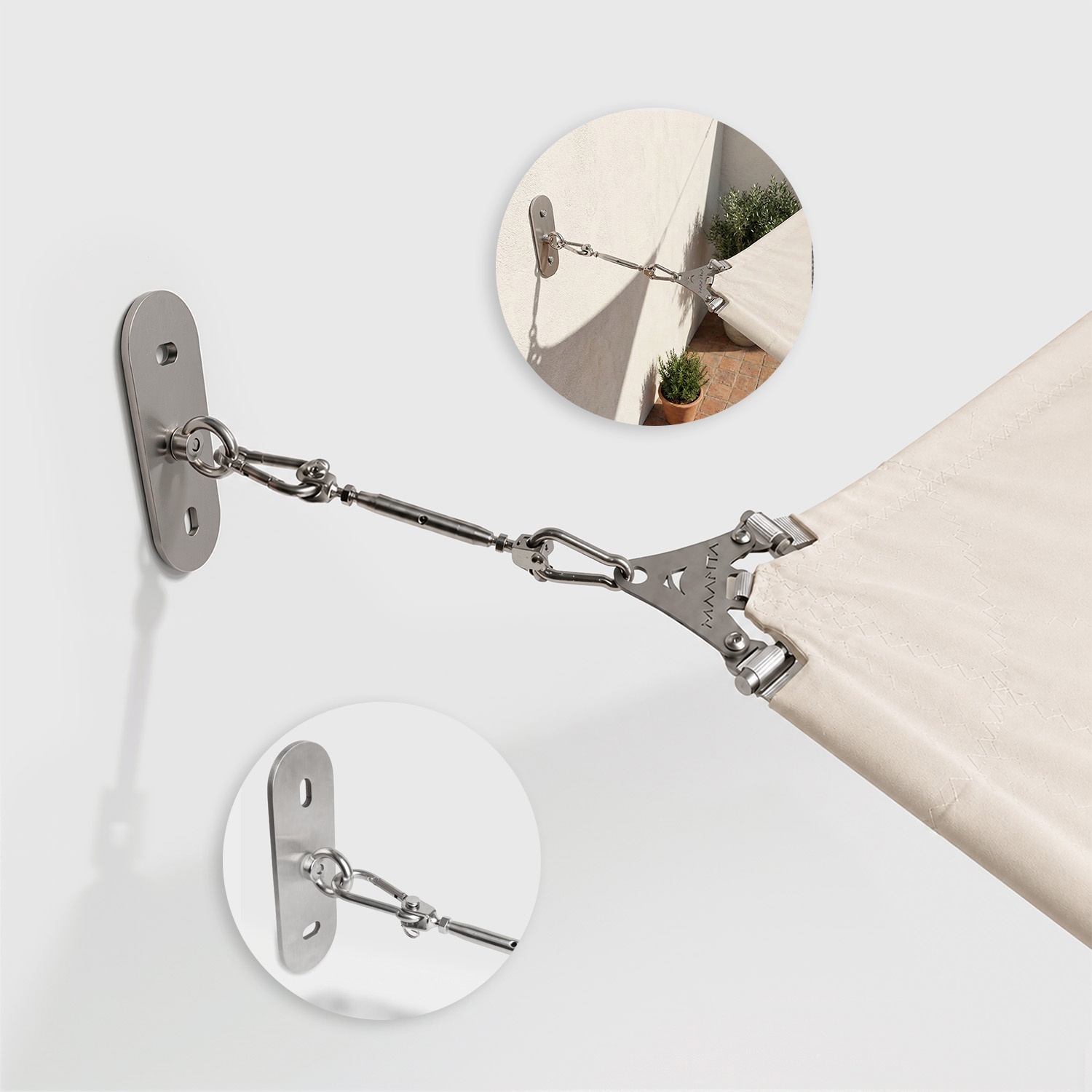

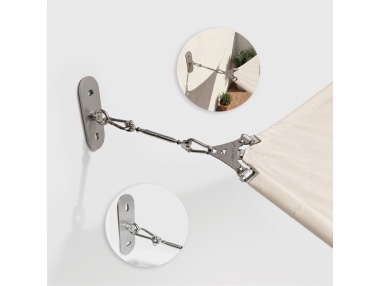

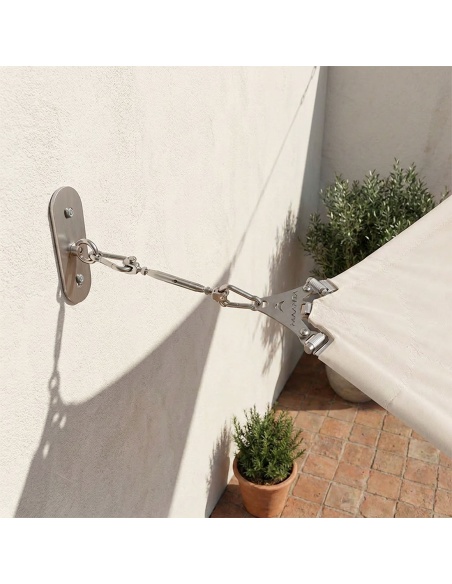

Sartya is the wall anchor plate that gives your shade sail a fixed point to rely on, season after season. It rests on a wide surface and fastens with just two anchors, because it's designed for walls with external insulation too. You mount it on masonry, wood or an insulated facade, horizontally or vertically.

  • Made for insulated walls: the 7 7/8" x 2 3/4" surface spreads the load across the insulation.
  • Two 7/8" x 1/2" slots: fastening with room for adjustment and just two anchors.
  • Adjustable orientation: you can mount it horizontally or vertically.
  • Complete stainless steel kit: turnbuckle, carabiners and eye bolt already in the box.

Choose options

Version: Plate + Stainless Steel Turnbuckle
  Plate + Stainless Steel Turnbuckle
  Plate + Stainless Steel Turnbuckle + 2 Stainless Steel Threaded Rods

Total price

$ 72.00
truck
truck
Order now and receive it by
with DHL Express

Free design service

After-Sales Service

Delivery 24 / 48 hours

Product details

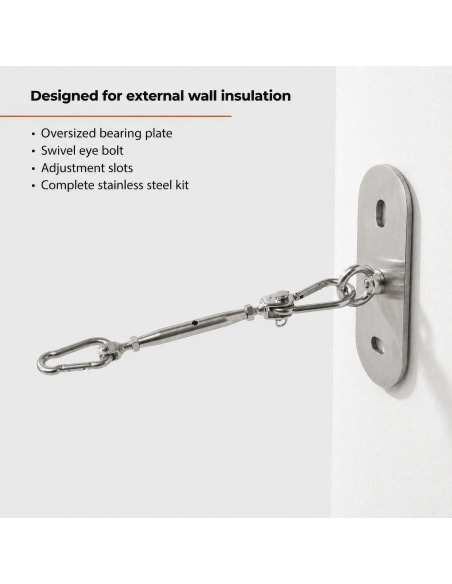

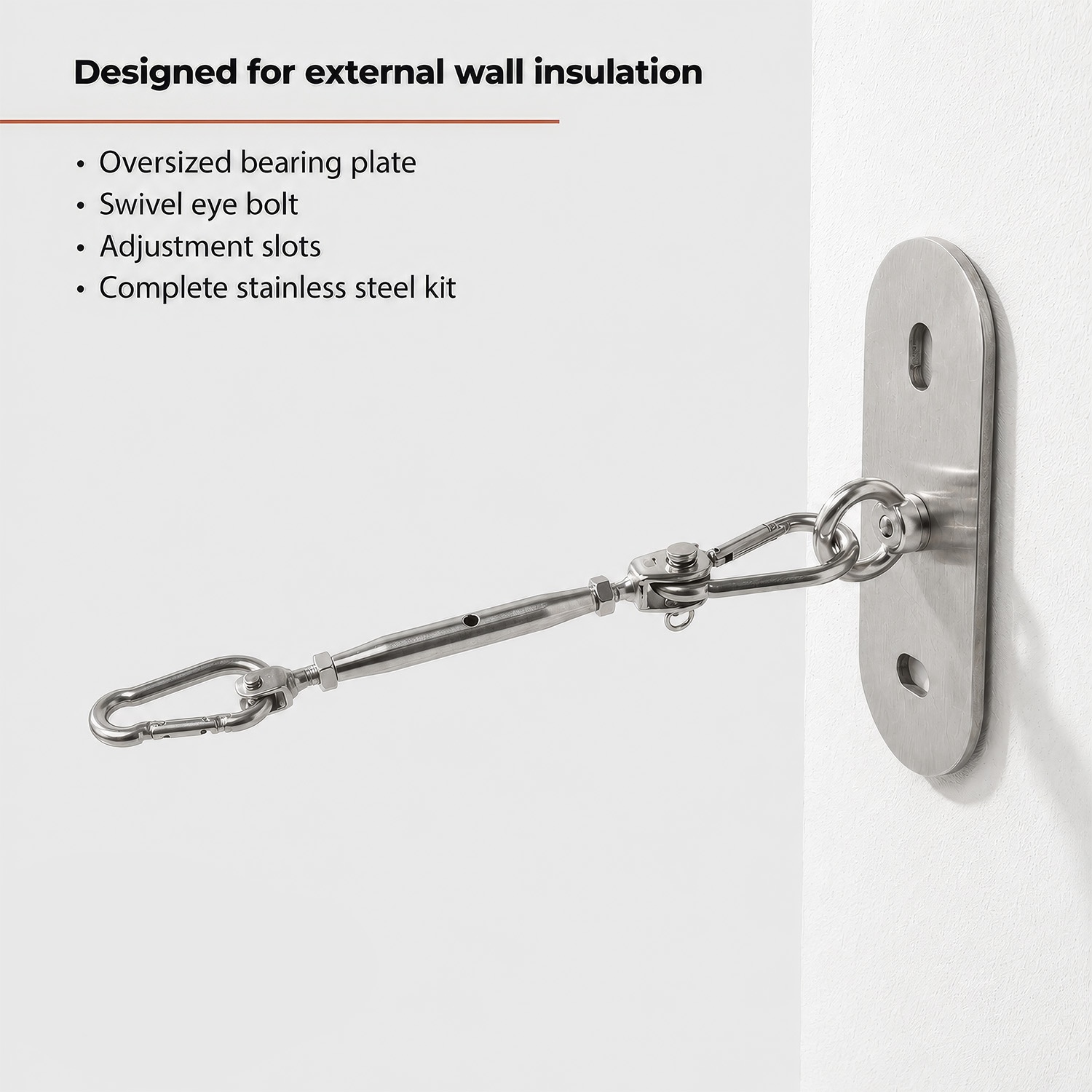

Designed for thermal insulation cladding

More surface area, fewer holes

Today's homes wear a thermal insulation layer that keeps them warm: on that wall, you need anchors designed specifically for the purpose. Sartya rests on a twenty-by-seven centimetre surface and distributes the pull of the shade sail across the entire insulation surface, with just two fixing points. The wall works undisturbed, the shade sail stays taut.

Designed for thermal insulation cladding

More surface area, fewer holes

Today's homes wear a thermal insulation layer that keeps them warm: on that wall, you need anchors designed specifically for the purpose. Sartya rests on a twenty-by-seven centimetre surface and distributes the pull of the shade sail across the entire insulation surface, with just two fixing points. The wall works undisturbed, the shade sail stays taut.

Key features

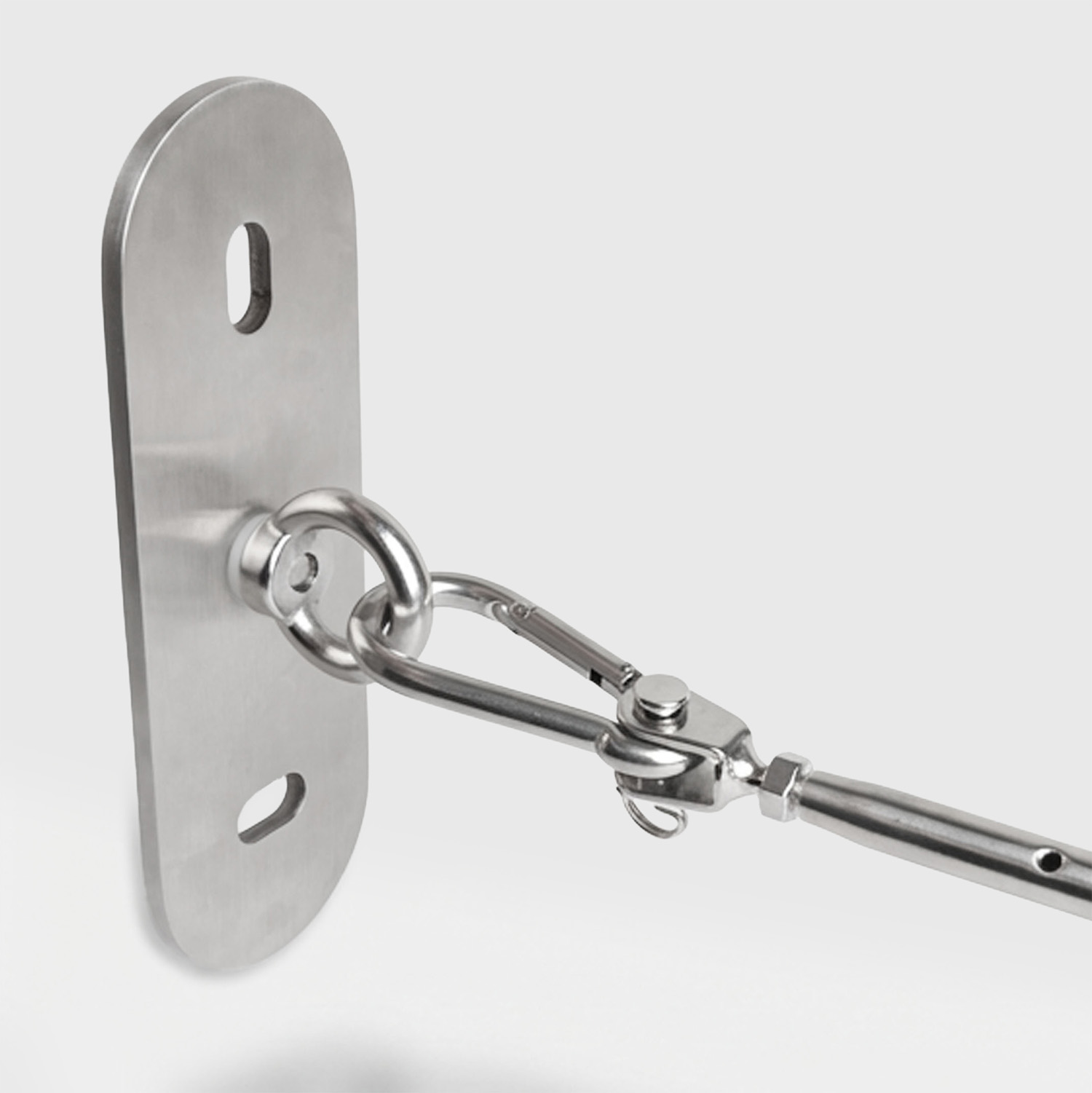

Wide slots, forgiving installation
Installation

Wide slots, forgiving installation

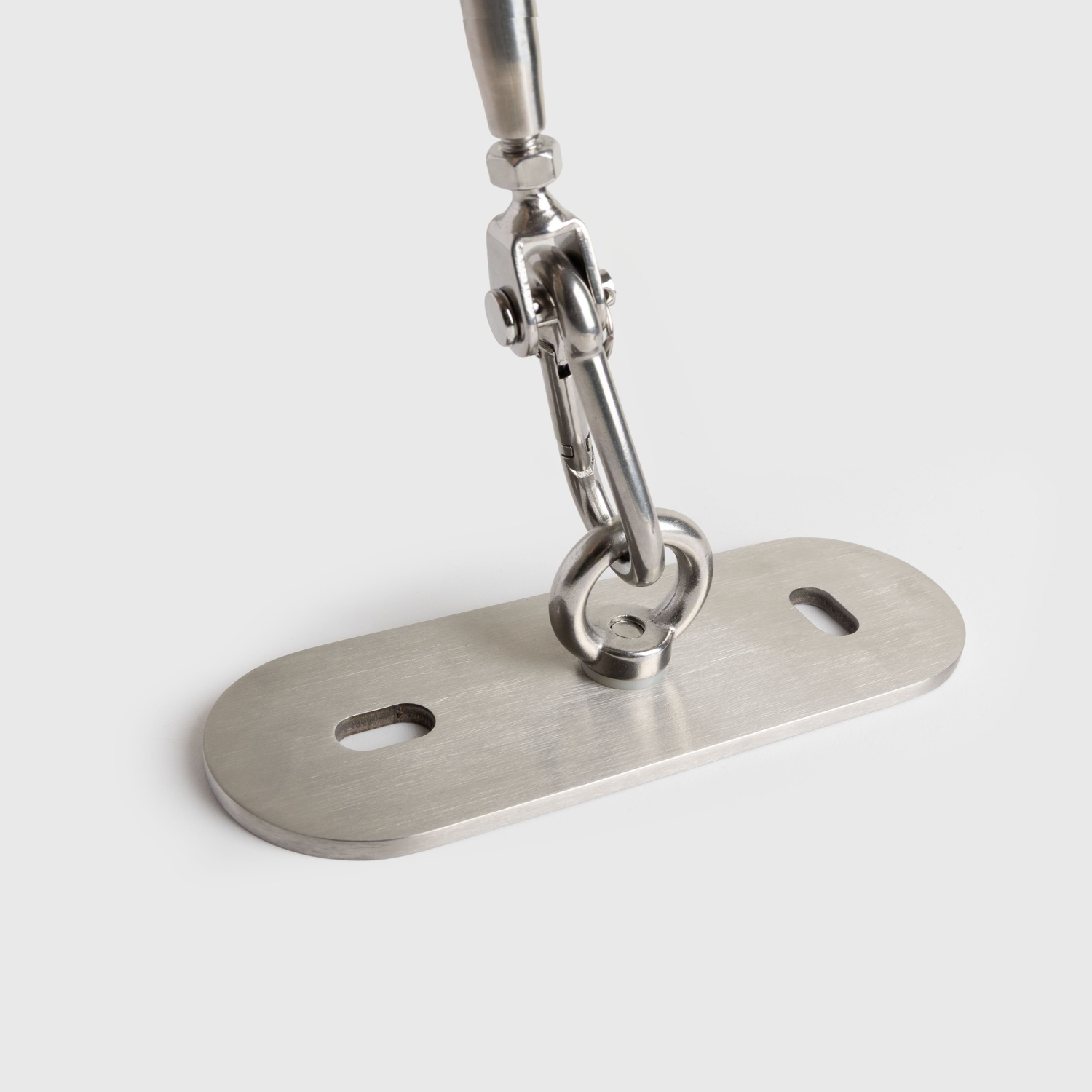

Two 7/8" × 1/2" slots instead of round holes: align the plate and adjust the position during installation, even after the holes have been drilled.

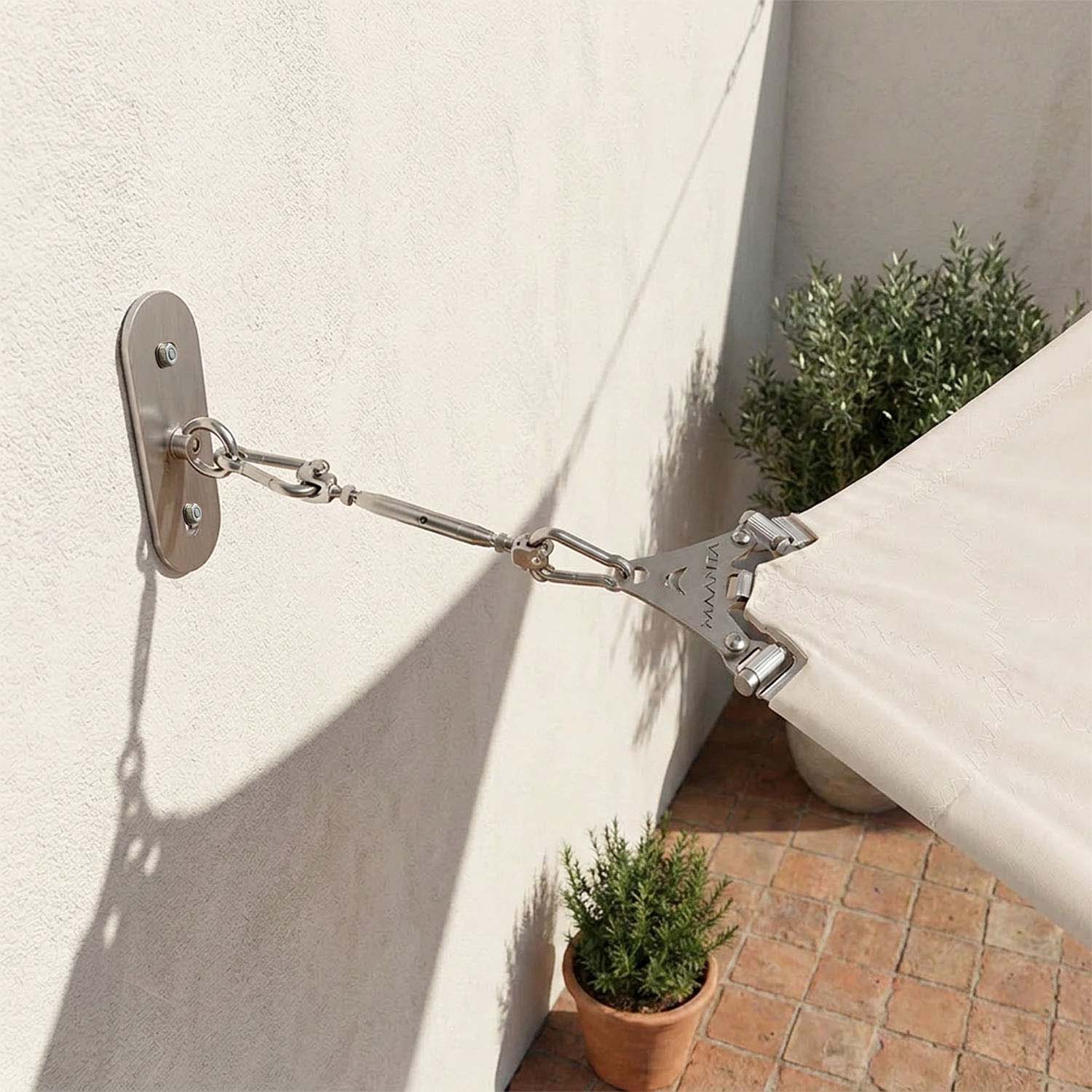

An enlarged bearing surface
Bearing

An enlarged bearing surface

Larger than a standard wall plate: greater bearing surface against the wall and improved stability on thermal insulation cladding.

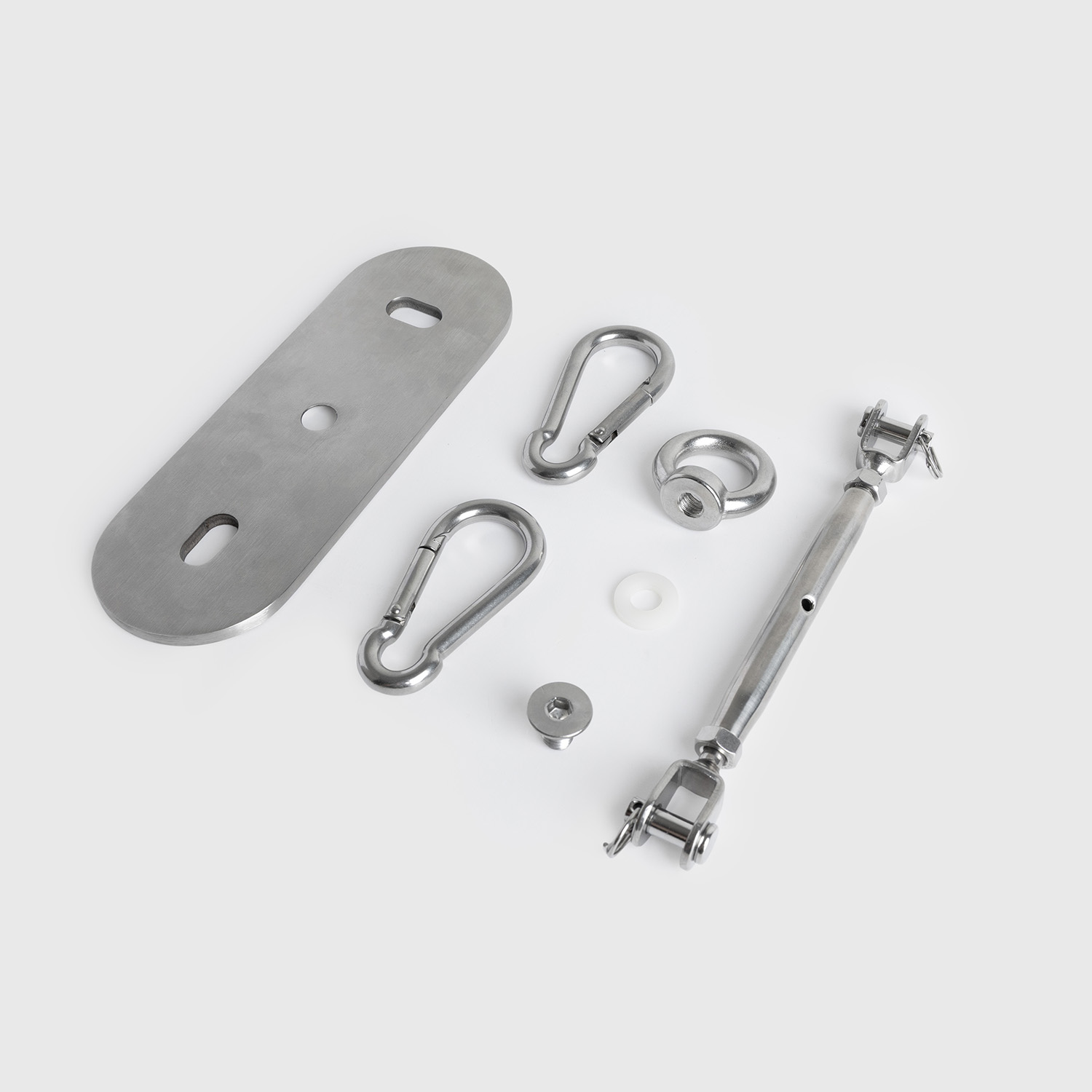

From wall to shade sail, complete
Kit

Everything included

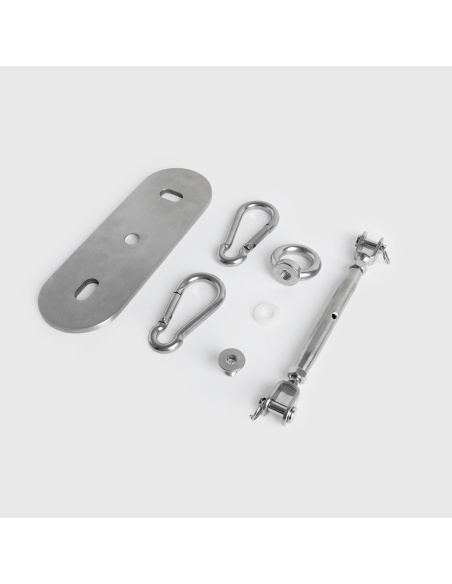

Tensioner, two carabiners, eye bolt, screw and washer are already included in the package: every link in the connection comes together with the plate.

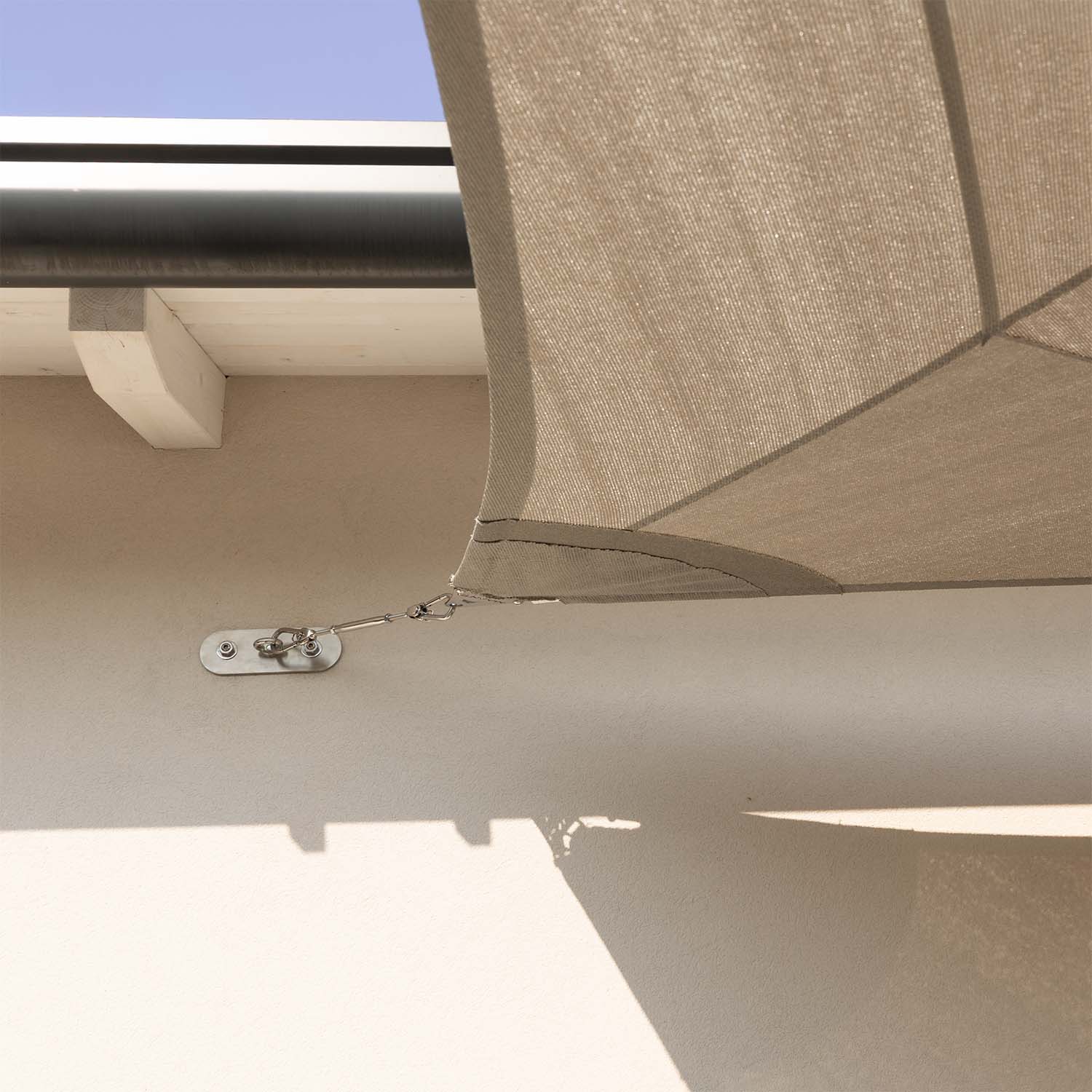

Certified load ratings, link by link
Load ratings

Certified load ratings, link by link

The tensioner works up to 970 lbs, the eye bolt up to 474 lbs, and the carabiners up to 397 lbs.

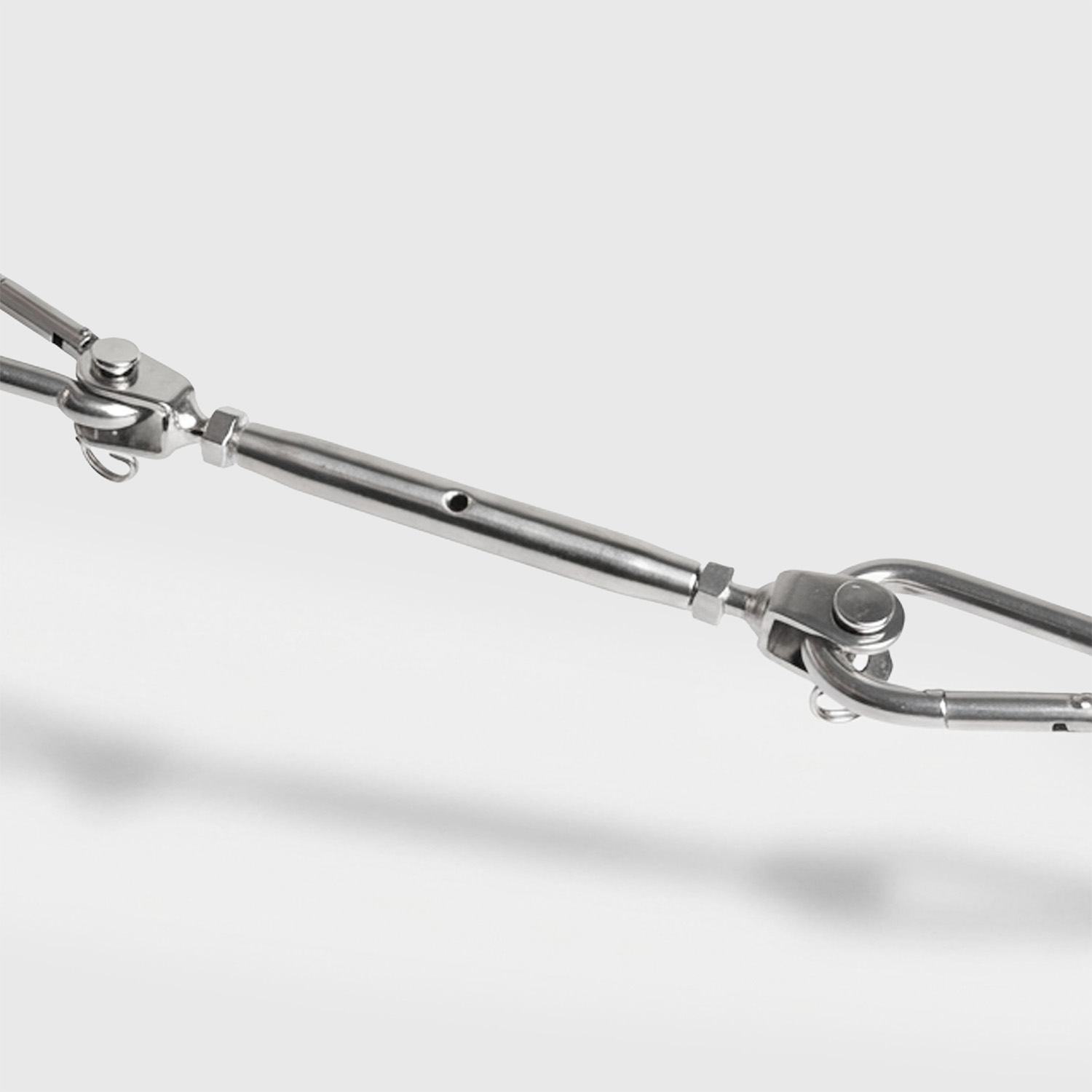

Stainless steel, even by the sea
Material

Stainless steel, even by the sea

The plate is made of 304 stainless steel, polished and brushed, declared suitable for permanent outdoor exposure and for saline and coastal environments.

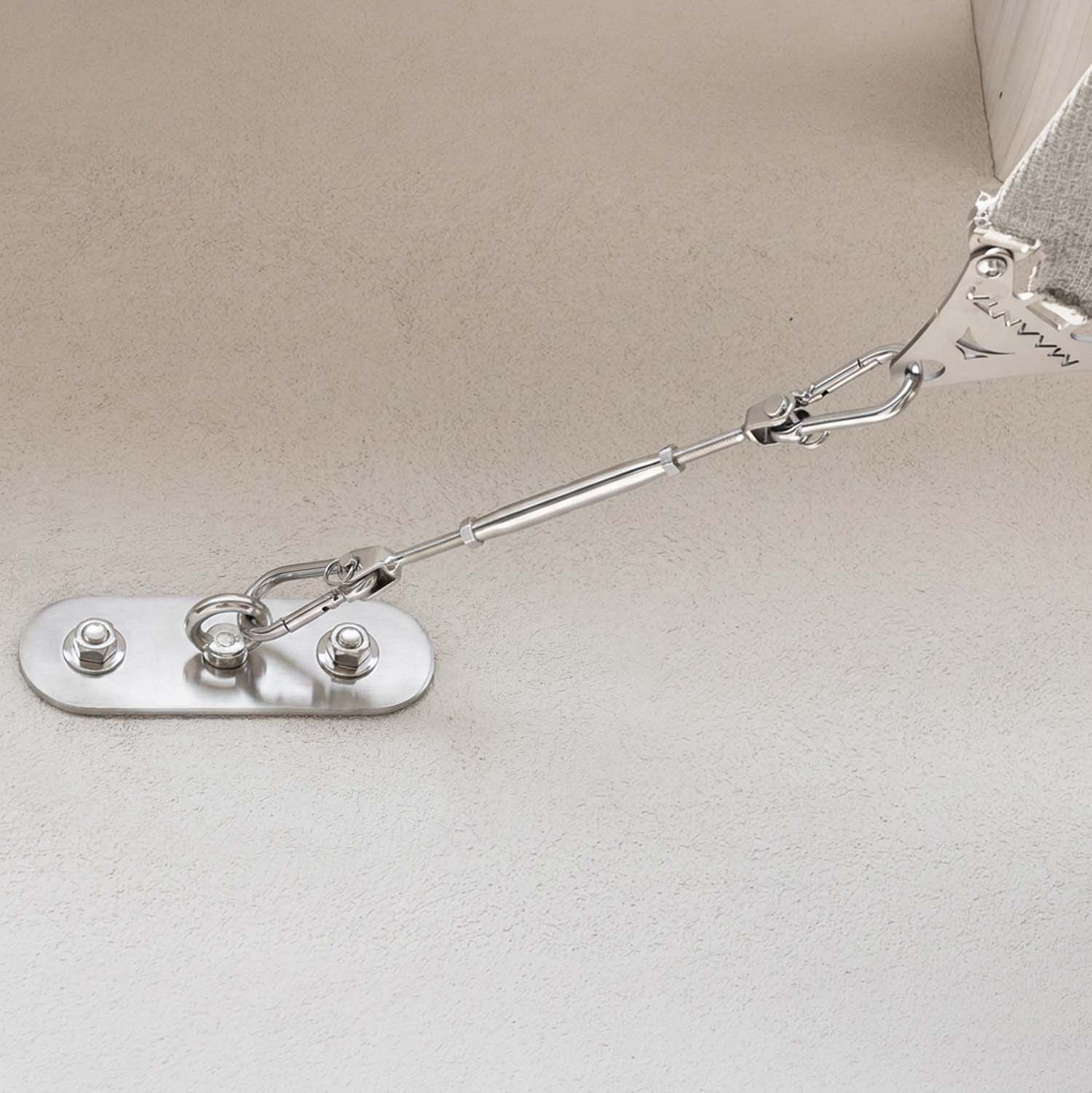

Tension can be restored over time
Adjustment

Adjustable tension

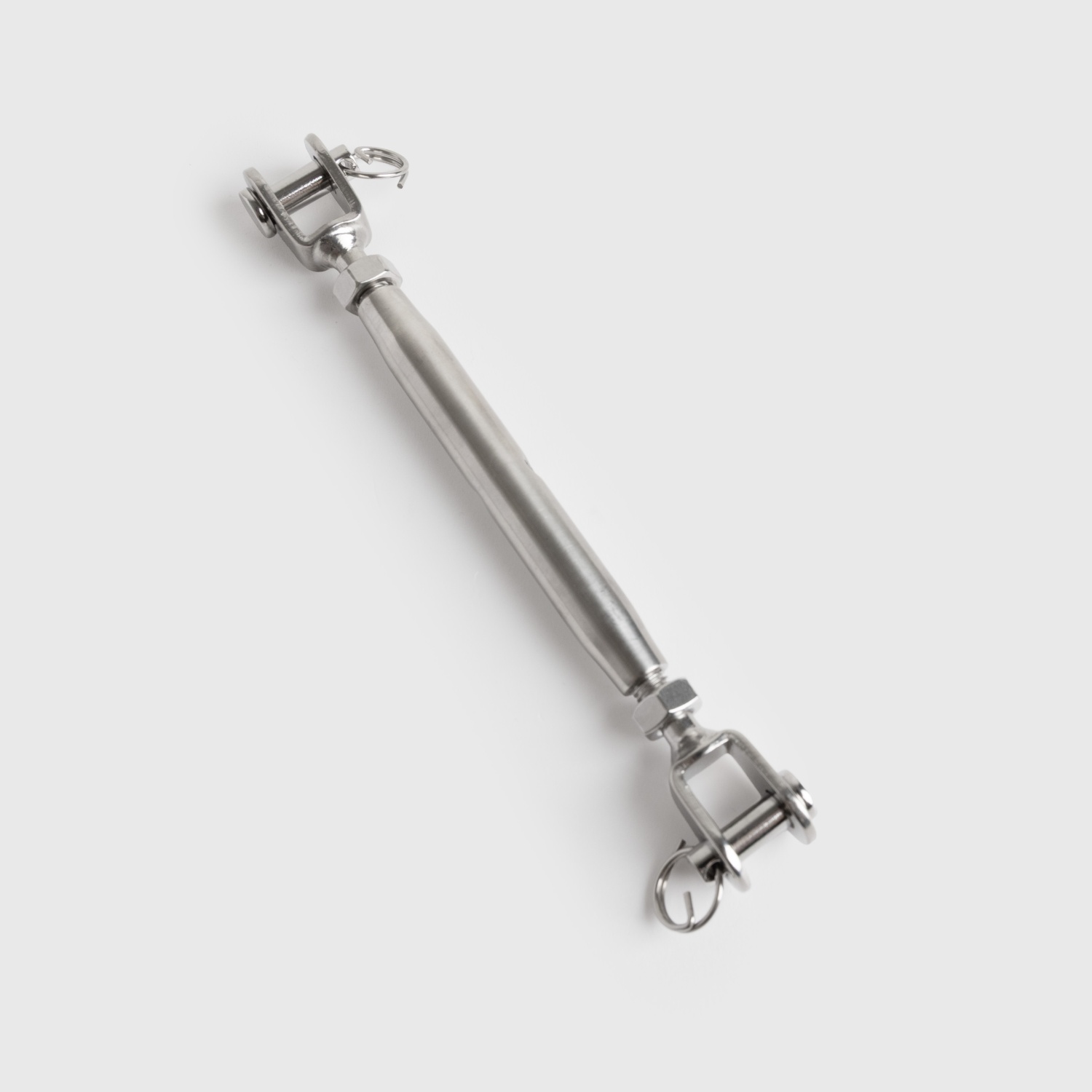

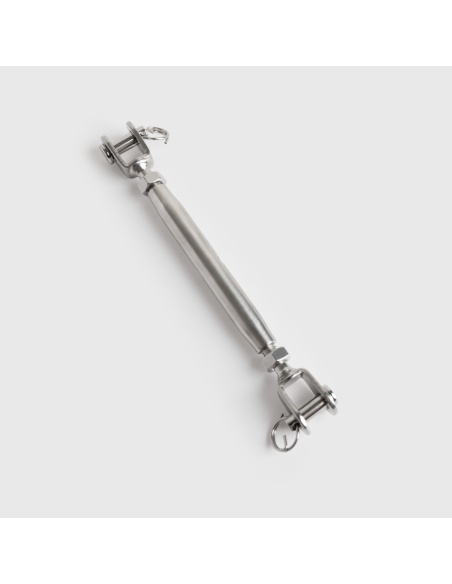

The tensioner adjusts between 6 1/2" and 9 7/16": tension the shade sail during installation and restore the tension at the start of each season.

Get inspired

Comparison table

Compare Maanta wall plates and find the right one for your space.

Sartya Wall Plate Kit

Muscle X3 Wall Kit

EZ Wall Fix

Nautical Rope Wall Kit

Ideal for


Thermal insulation and high-tension shade sails


Effortless tensioning with quick release


The first kit, simple and essential


Anchor points away from the shade sail, up to 6 1/2'

Thermal insulation

Designed for insulation: just 2 fixings, load distributed over 8" × 2 3/4"

Compatible with dedicated anchors

Compatible with dedicated anchors

Compatible with dedicated anchors

Plate

8" × 2 3/4"

3 3/4" × 3 3/4"

3 3/4" × 3 3/4"

3 3/4" × 3 3/4"

Wall mounting

2 slots 7/8" × 1/2", adjustable position during installation

4 holes Ø 1/2"

4 holes Ø 1/2"

4 holes

Tensioning system

M8 turnbuckle, adjustment 6 1/2"/9 1/2"

Pulley block with rope cleat, triple the force

M6 turnbuckle, adjustment 6 1/4"/10"

Nautical rope with adjustment U-bolt

Shade sail/wall distance

Up to maximum turnbuckle length

From 14" to 3 1/4'

Up to maximum turnbuckle length

Up to 6 1/2'

Material

304 stainless steel

304 stainless or galvanized steel

304 stainless or galvanized steel

304 stainless or galvanized steel

Kit included

Turnbuckle, 2 carabiners, swivel eye bolt, hardware

2 pulleys, 2 shackles, 13' of nautical rope

Turnbuckle, carabiner, eye bolt, hardware and wrench

2 carabiners, U-bolt, 6 1/2' of nautical rope


Go to product page

Go to product page

Go to product page

Go to product page

Everything you need: guides and instructions

Document / Video Action

Technical datasheet

Product type

Wall anchor plate kit for shade sails

Available versions

Basic version: wall plate + turnbuckle

Version with rods: wall plate + turnbuckle + 2 threaded rods

Finish

Polished and brushed, natural steel

Plate dimensions

7 7/8" × 2 3/4"

Plate thickness

3/16"

Mounting holes

2 slots of 7/8" × 1/2" · center distance approx. 4 3/4"

Plate weight

2 lbs

Plate material

304 stainless steel, rustproof, suitable for permanent outdoor exposure

Finish

Polished and brushed, natural steel

Tensile strength

≥ 515 N/mm²

Saline / coastal environments

Suitable

Kit included

1 wall plate, 1 M8 turnbuckle (adjustment 6 1/2"-9 1/2"), 2 carabiners 5/16"×3 1/8" (lever opening 3/8"), 1 female eyebolt M10 (ring Ø 1" inner), 1 TSPEI M10×16 screw, 1 nylon washer

Kit material

Stainless steel (carabiners and eyebolt grade 304)

Working load limit (WLL)

Turnbuckle 970 lbs, Eyebolt 475 lbs, Carabiners 397 lbs

Breaking load

Turnbuckle 4,850 lbs, Carabiners 1,985 lbs, Eyebolt 1,435 lbs

Compatible walls

Thermal insulation (with specific anchors, e.g. Fischer Thermax), solid masonry and concrete, load-bearing wood

Wall mounting

Not included, anchors and fasteners are chosen based on the wall

Installation orientation

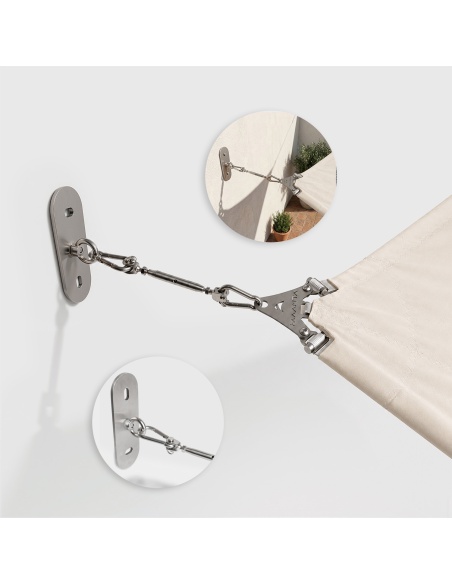

Horizontal or vertical, depending on the direction of the pull

Packaging and warranty


Package contents

Basic version: Plate + Stainless steel turnbuckle

Version with rods: Plate + Stainless steel turnbuckle + 2 stainless steel threaded rods

Packaging

Protective bag

Warranty

2 years

Read less -

Read more +

What you receive with Sartya

FAQ

FAQ

It creates a wall anchor point for the shade sail, especially on walls with external insulation: the eye bolt accommodates a carabiner and a turnbuckle, keeping the sail taut all season long.

Yes, that's exactly what it's designed for: the 7⅞″ × 2¾″ surface distributes the load across the insulation layer, and the two anchor points are secured with injection mortar or fasteners specifically rated for insulated walls.

It rests on a wider surface, is secured with two anchors instead of four, and features adjustment slots: it's the go-to choice for insulated walls and tighter shade sails.

No. Sartya is a fixing accessory: the shade sail is sold separately.

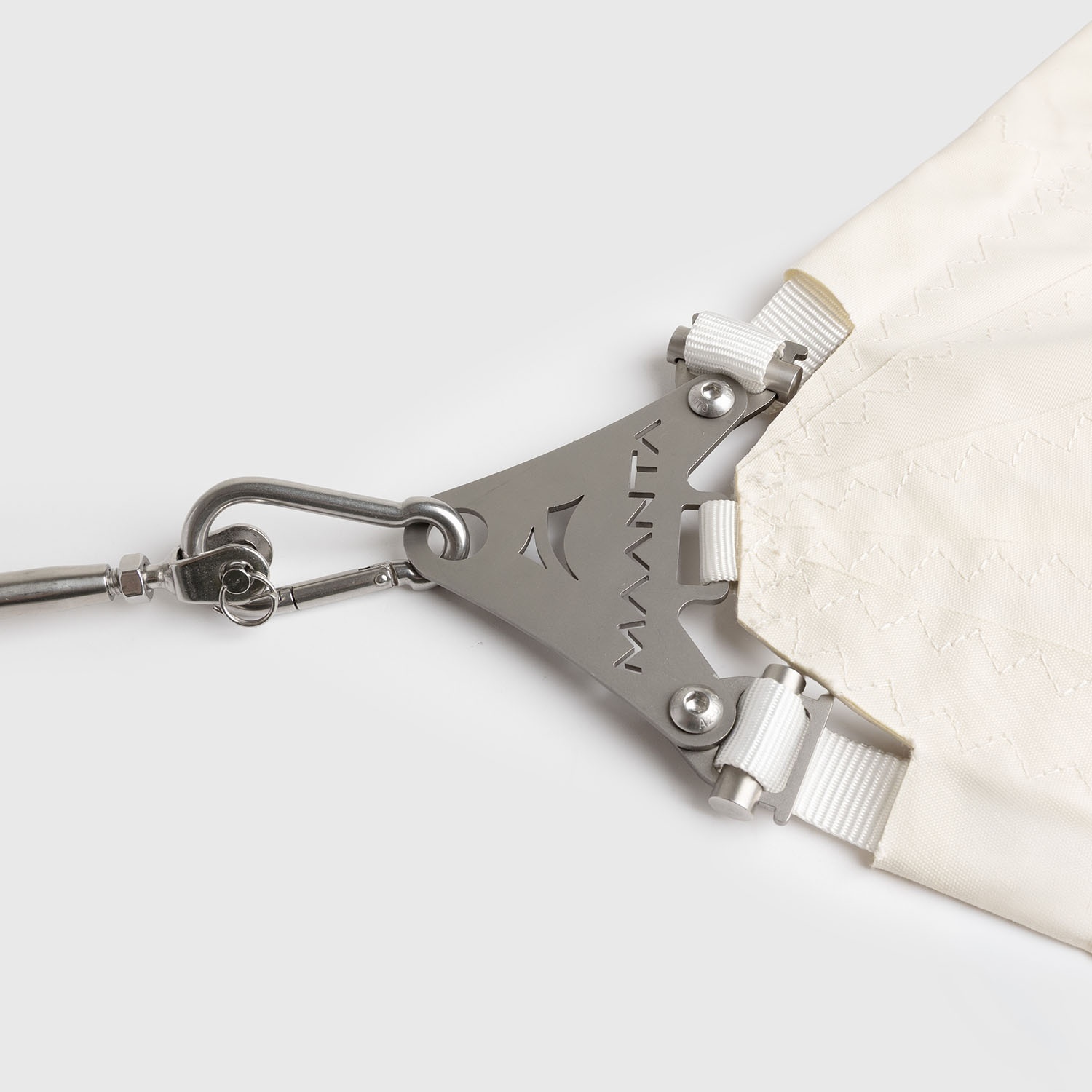

Compatible with all Maanta shade sails, using a snap hook and turnbuckle: it is part of the Maanta anchoring system.

No: wall mounting depends on the type of surface. For insulated walls, you'll need specific anchors (such as Fischer Thermax); for solid masonry, use injection mortar or anchors suited to the substrate.

One for each corner you want to anchor to the wall. The other corners can be secured using poles or other Maanta anchoring solutions.

7 7/8" × 2 3/4", weighing approximately 2 lbs.

304 stainless steel, polished and brushed: it stays outdoors all year round without rusting.

It is a stainless steel suitable for permanent outdoor exposure, including in coastal areas.

The 22×12 mm slotted holes give you room to align the plate and adjust its position during installation, even after the holes have already been drilled.

In addition to the plate, the kit also includes 1 M8 turnbuckle, 2 carabiners 8×80, 1 M10 female eye bolt, 1 TSPEI M10×16 screw, and 1 nylon washer, all in stainless steel.

Each component has its own declared working load: 970 lbs for the turnbuckle, 474 lbs for the eye bolt, and 397 lbs for the carabiners. The connection works within the limits of the lowest-rated component.

It’s the maximum weight a component can safely handle: the declared breaking load is three to five times higher, to provide a safety margin against gusts and sudden stress.

Between 6 1/2" and 9 1/2": the travel range is designed to tension the shade sail and re-tension it over time.

Yes, the plate and kit are rated for use in saline and coastal environments. If you live near the ocean, we recommend cleaning them periodically.

Use specific anchors that pass through the insulation layer and engage the load-bearing masonry, such as Fischer Thermax fasteners. The slotted holes guide the plate alignment for a precise, secure fit.

Yes: on solid masonry, it can be secured using anchors suited to the surface, such as a standard base plate.

Your choice: pick the option based on the wall and the pull direction, the swivel eye bolt takes care of the rest.

It depends on the wall type: for insulated walls, you'll need specialized anchors, while for solid masonry, traditional anchors work best. If you're unsure, our free design service will point you in the right direction.

They allow you to adjust the plate alignment after the holes have already been drilled, without having to redo them.

Two years from the date of purchase.

Material and workmanship defects, on the plate and all kit components.

It activates automatically upon delivery.

Reach out to our customer service team with photos and a description: we'll take care of the replacement for you.

If it hasn't shipped yet, in most cases yes: contact our customer service right away.

Our free design service is available in the "Contact Us" section: we'll help you find the right fixing points and accessories for your shade sail.
