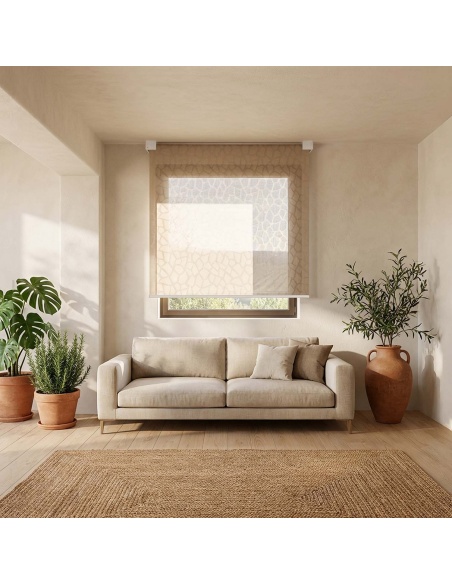

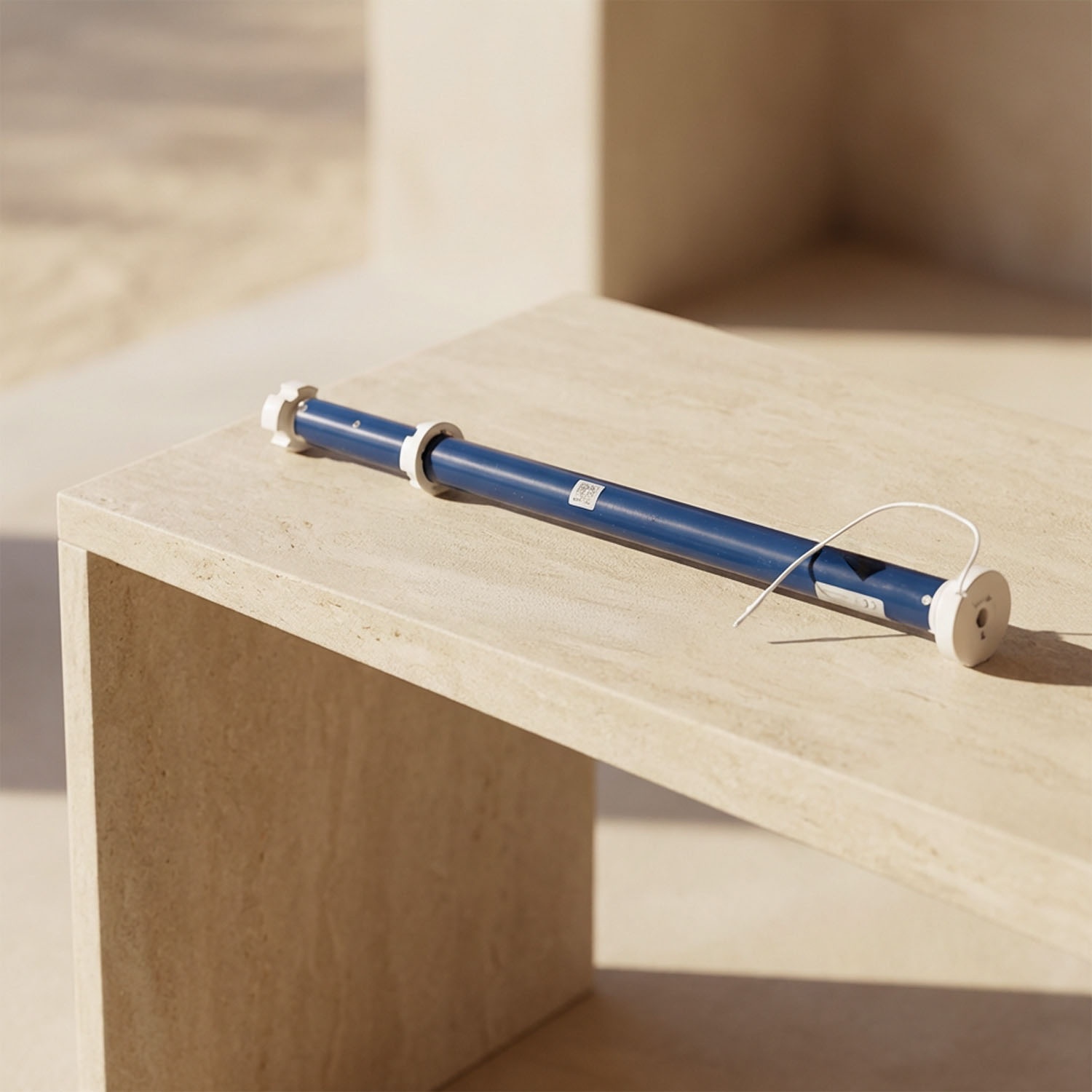

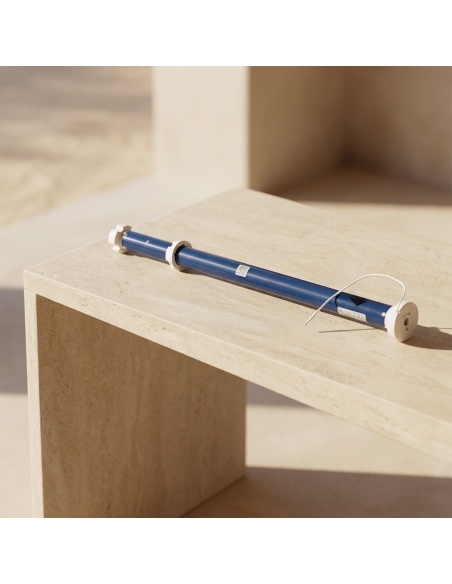

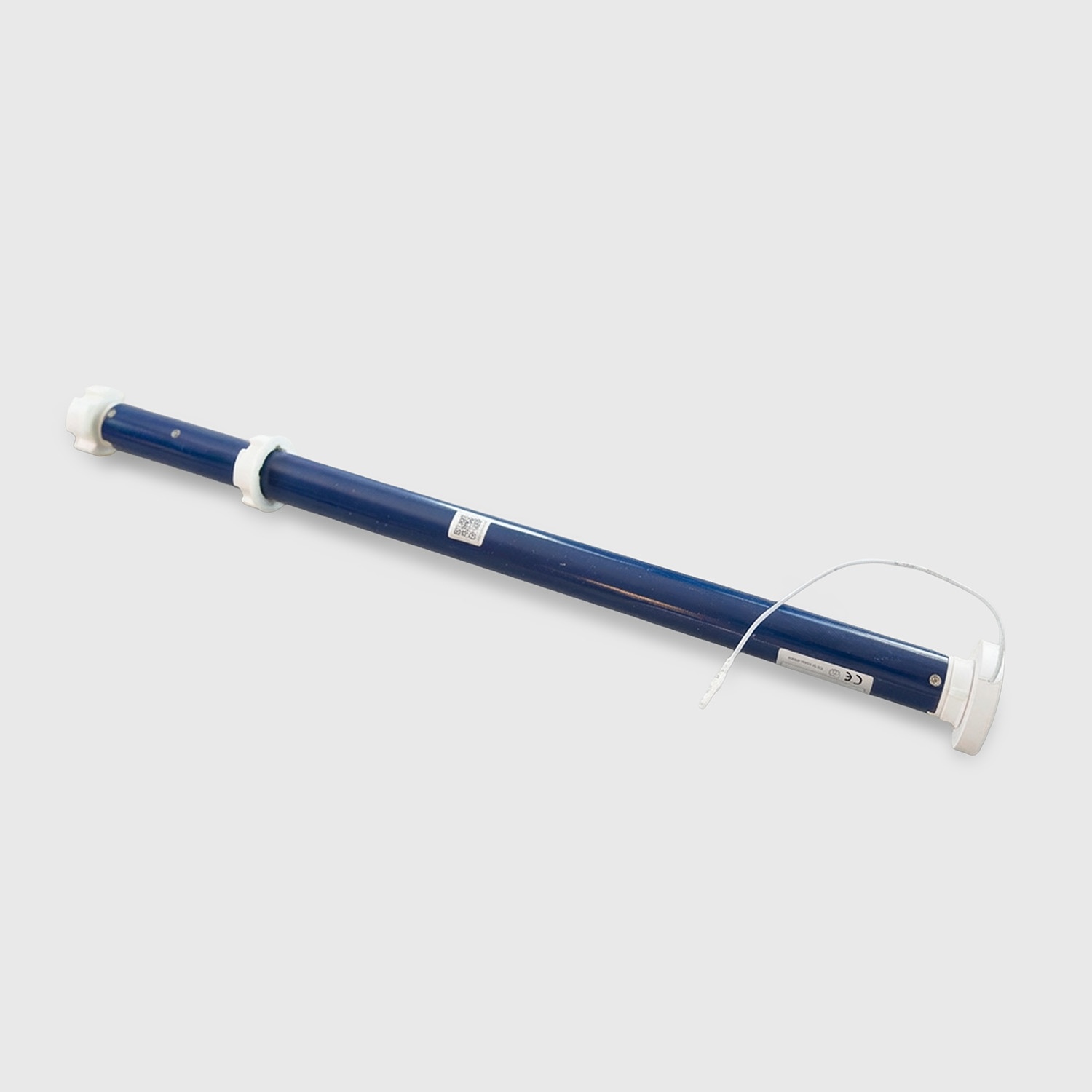

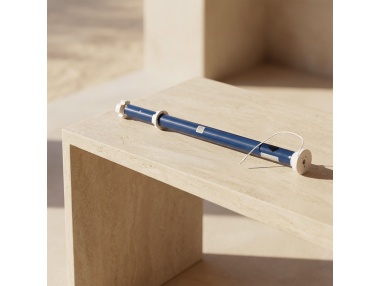

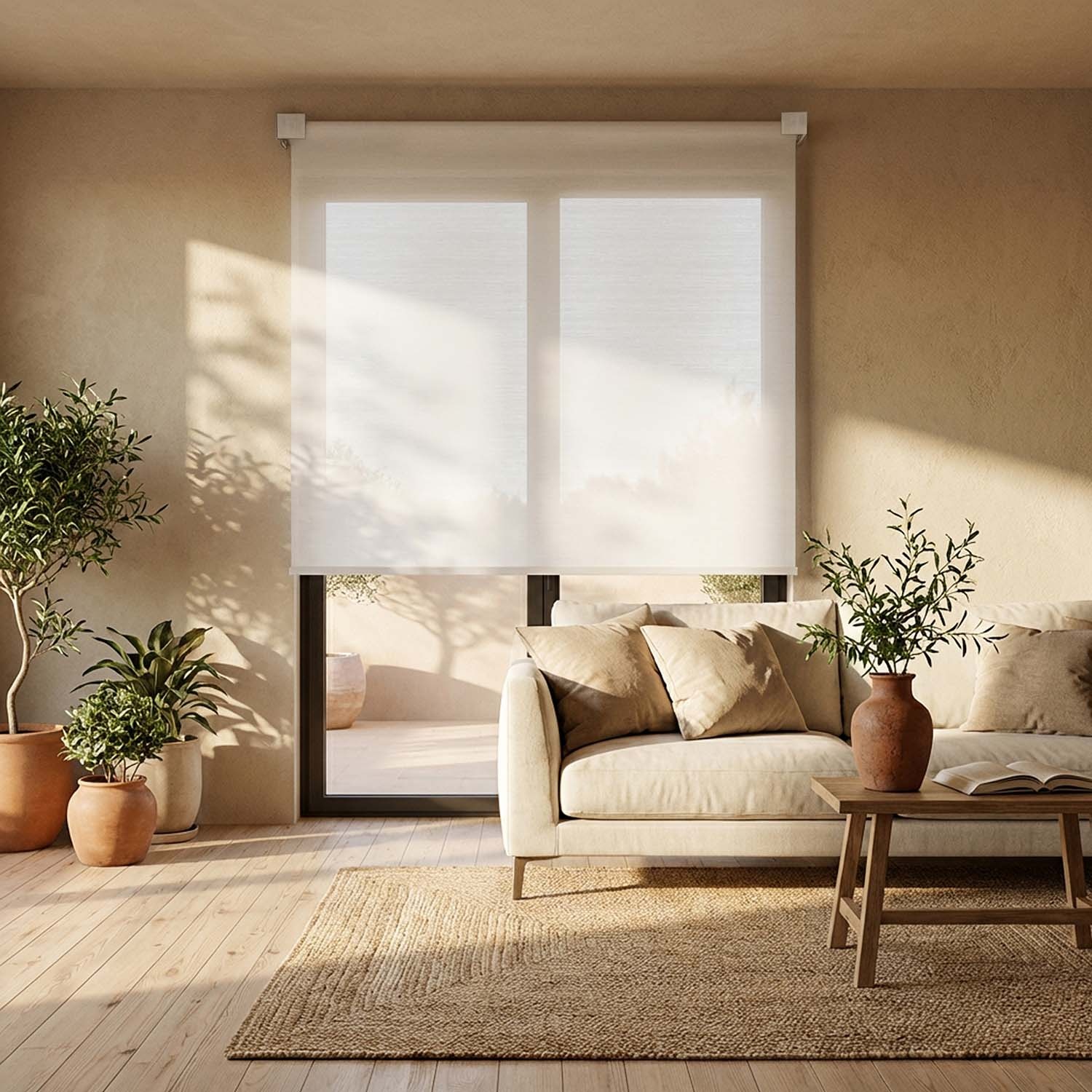

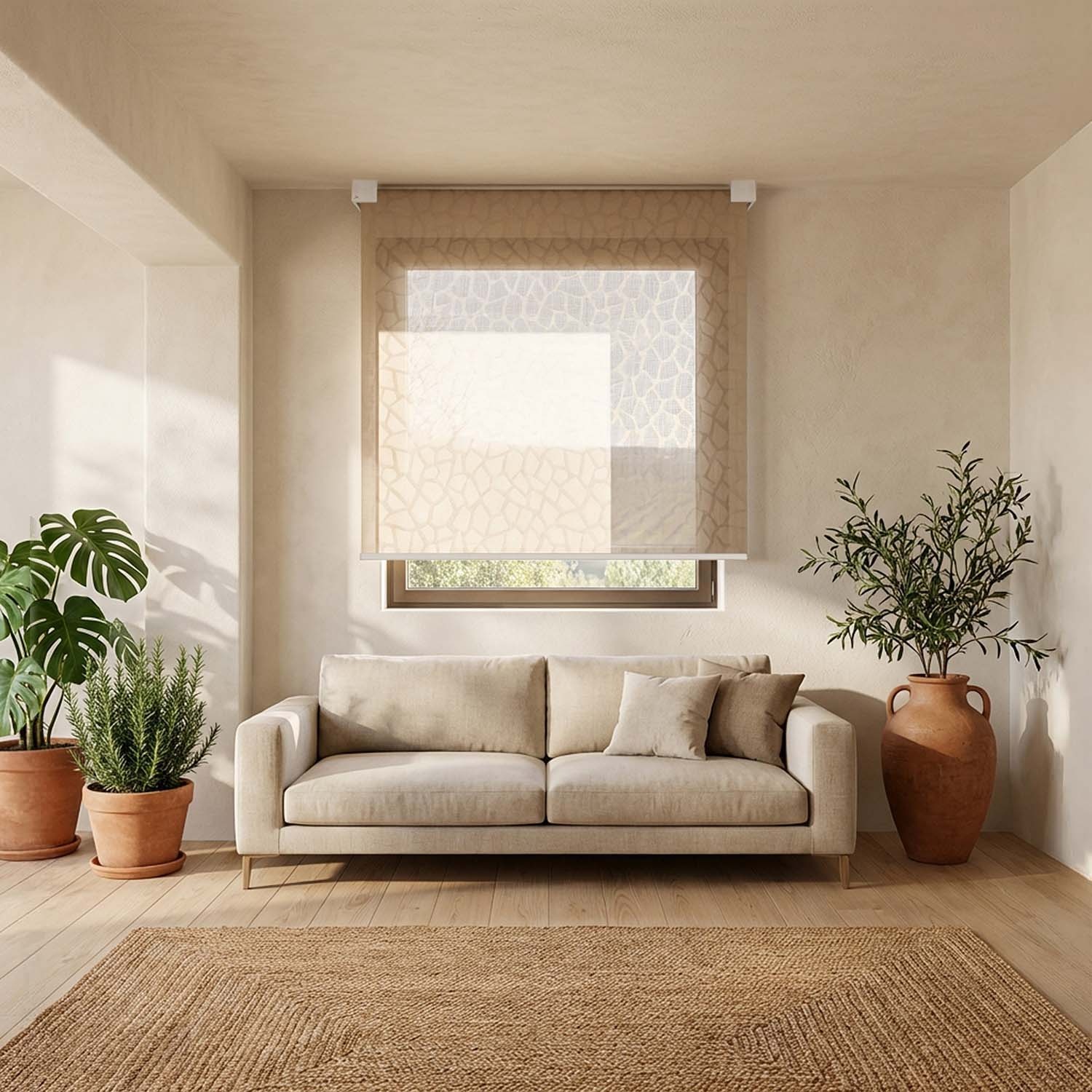

The motor for Maanta roller shades mounts directly on the roller tube in minutes, with no electrician and no construction work.
Quiet, compact and rechargeable via USB-C: control it with the multi-channel remote (sold separately) or, with the optional Wi-Fi Bridge, from your smartphone with Alexa and Google Home.
Free design service
After-Sales Service
Delivery 24 / 48 hours
The motor has a built-in lithium battery, rechargeable via USB-C. No dedicated electrical wiring, no technician needed.
The motor has a built-in lithium battery, rechargeable via USB-C. No dedicated electrical wiring, no technician needed.
Multiple programmable stop positions, including a favorite position, and a gradual soft stop.
Electronic speed control, with noise levels below 35 dB.
The motor meets the requirements for CE marking.
| Document / Video | Action |
|---|
Compatible with |
Only Maanta Kyma and Recta indoor roller shades |
Not compatible with |
Maanta outdoor roller shades |
Power supply |
|
Power supply |
Built-in rechargeable lithium battery |
Charging |
5 V DC via USB-C |
Motor performance |
|
IP rating |
IP20 |
Rotation speed |
28 rpm |
Torque |
1.1 Nm |
Noise level |
< 35 dB |
Smart features |
|
Favorite position |
Yes, programmable |
Soft stop |
Yes |
Jog mode |
Yes |
Protections |
Overload protection, automatic stop at limit positions |
Communication and control |
|
Radio frequency |
433.92 MHz |
Compatible controls |
Maanta multi-channel remote control, Maanta Wi-Fi Bridge (app, Alexa, Google Home) |
Installation |
|
Positioning |
Right or left (reversible) |
Environment and compliance |
|
Operating temperature |
From 14 °F to 140 °F |
Marking |
CE |
Warranty |
2 years |
Read less -
Read more +

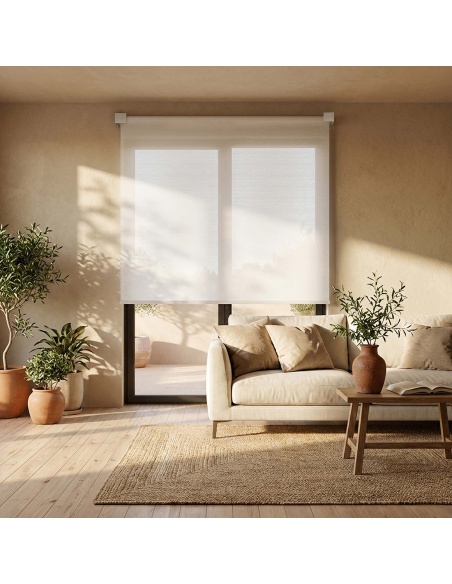

The Maanta roller shade motor automates the opening and closing of your indoor roller shades. It's designed to be compatible with Maanta's Recta and Kyma shades, which feature a 1 5/8" winding shaft. It installs with no masonry work and no fixed wiring.

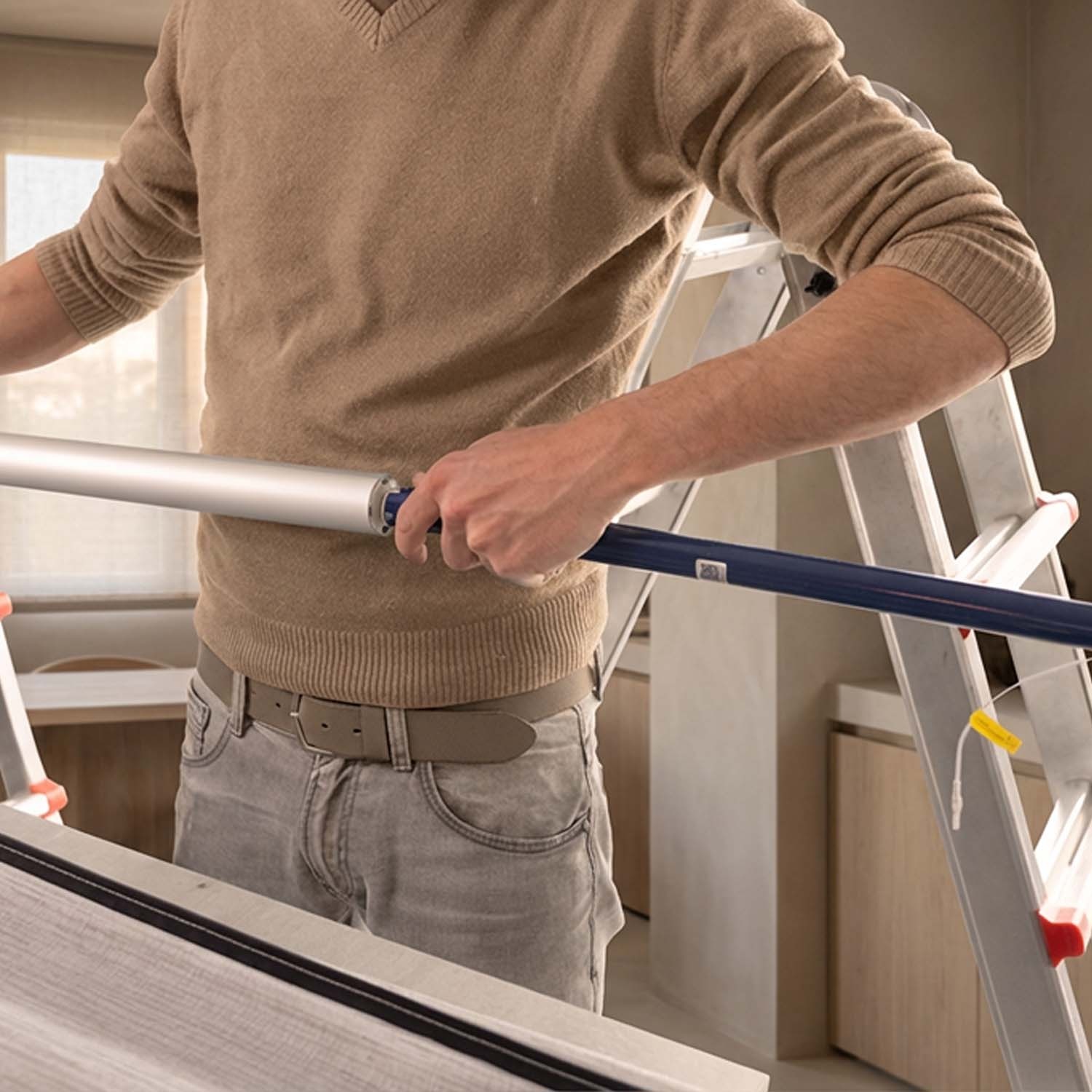

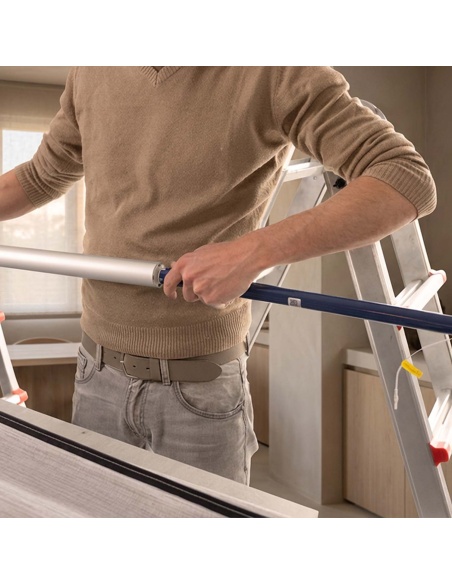

Yes. The motor was designed exactly for this. If you already have a Recta or Kyma awning in the manual version and want to motorize it, you can purchase the motor separately and install it yourself. The process takes just a few minutes and doesn’t require any electrical system work.
No. The Maanta roller shades motor requires a control system to operate: either the Maanta multi-channel remote control or the Wi-Fi Bridge (sold separately). The Wi-Fi Bridge allows control via smartphone app, Alexa, or Google Home. Without one of these, the motor cannot be operated.
Yes, but you’ll need the optional Maanta Wi-Fi Bridge, sold separately. Once connected, you can control your awning via a smartphone app and integrate it with Amazon Alexa and Google Home for voice commands.
The motor for Maanta roller shades automates opening and closing indoor roller shades. It is compatible with Maanta Recta and Kyma shades, which have a 1 5/8" (40 mm) roller tube. It installs with no construction work and no hardwiring.
Yes. If you have a manual Recta or Kyma shade, you can motorize it by adding the motor and installing it yourself. It takes just a few minutes and requires no electrical work. To control the motor, you need the Maanta multi-channel remote or the Wi-Fi Bridge.
Yes, if you use the Wi-Fi Bridge. The motor needs one of two controls: the Maanta multi-channel remote or the Wi-Fi Bridge, which lets you operate it from the smartphone app, with Alexa or with Google Home. With the Wi-Fi Bridge, you can also set the limits directly in the app. Without either one, the motor can't be operated.
Yes, with the Maanta Wi-Fi Bridge. Once it's connected, you can control the shade from the smartphone app and with voice commands through Amazon Alexa and Google Home.
The Maanta multi-channel remote can control up to 15 shades at the same time. You can pair multiple motors to the same remote and operate the shades individually or in groups.
The motor has a certified noise level of ≤ 35 dB(A), comparable to a normal conversation. In very quiet settings like a bedroom, you’ll notice it running, but it won’t be disruptive—ideal for comfortable use in American homes.
Soft stop is a progressive deceleration before stopping: the fabric doesn’t halt abruptly but slows down gradually, reducing stress on the mechanism. The favorite position is a storable intermediate height: with a single button on the remote control, the awning moves exactly to that spot every time.
Yes. The motor features overload protection and automatic stop at the mechanical limits (end-of-travel): it stops on its own when the fabric is fully open or closed, without requiring any manual intervention.
The Maanta multi-channel remote controls up to 15 shades. You can pair multiple motors with the same remote and move the shades one at a time or in groups.
The motor runs at less than 35 dB. In quiet rooms, like a bedroom, you'll hear it when it's running, but it isn't disruptive.
Soft stop is a gradual slowdown before stopping: the fabric doesn't stop abruptly, which puts less strain on the mechanism. The favorite position is an intermediate height you can save: with one button on the remote, the shade moves exactly there every time.
Jog mode moves the shade in small steps so you can adjust the fabric precisely. When you hold down the button, the shade moves up or down a short distance at a time, so you can find the exact position without overshooting it.
Yes. The motor has overload protection and stops automatically at its limits, when the fabric is fully open or closed, with no need for you to step in.
No. The motor is powered by a rechargeable internal battery, so it doesn’t need to be connected to the electrical system. There’s no need to open walls, run cables, or contact an electrician. Installation is designed for DIY and takes just a few minutes.
Yes. The motor is reversible and can be installed on either the right or left side of the winding shaft. You can choose the most convenient side based on your space.
Printed instructions are included in the package. You can also find the PDF manual and video guides in the "Instructions and manuals" section on this page. If you have any difficulties, you can contact us.
No. The motor runs on a built-in rechargeable battery and doesn't need to be connected to your home's electrical system. There's no need to open walls, run wires or call an electrician: you can install it yourself in a few minutes.
Via USB-C, by connecting the motor to a USB charger. You don't need to remove the motor to charge it.
Yes. The motor is reversible: you can mount it on the right or left side of the roller tube, whichever is more convenient for you.
No. The motor has no manual emergency override: when the battery is dead, the shade stays where it is until you recharge the motor. To avoid this, recharge it regularly.
Printed instructions are included in the package. If you have trouble with the installation, contact us.
The Maanta roller shades motor is covered by a 2-year warranty from the date of purchase. The warranty is handled directly by Maanta, with no intermediaries.
Before you buy, we recommend checking compatibility: the motor is designed for Maanta Recta and Kyma awnings with a 40 mm winding shaft. If you’re unsure, contact us before ordering. For return conditions, please review our return policy on the website. Designed and crafted in Italy, it brings reliable performance and refined design to American outdoor spaces.
Contact our customer service team directly with your order number. There’s no need to register the product in advance. The Maanta team will assess the issue and guide you through the replacement or repair process.
Delivery takes approximately 12 business days within Europe and 15 days to the United States. Your order is shipped in a single package.
The motor comes with a 2-year warranty from the date of purchase. The warranty is handled directly by Maanta, with no intermediaries.
The warranty covers manufacturing defects and malfunctions not caused by improper use. It does not cover damage from impacts, normal wear and tear, misuse or unauthorized work on the motor.
Before you buy, check compatibility: the motor is designed for Maanta Recta and Kyma shades with a 1 5/8" (40 mm) roller tube. If you're unsure, contact us before ordering. For return conditions, see our return policy on the website.
Contact our customer service team with your order number. You don't need to register the product in advance. The Maanta team will assess the issue and guide you through the replacement or repair.
Delivery takes about 12 business days within Europe and 15 days to the United States. Your order ships in a single package.
