Kit wall mount Muscle x3 with traction booster

New

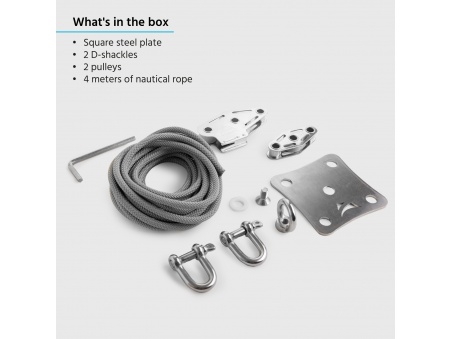

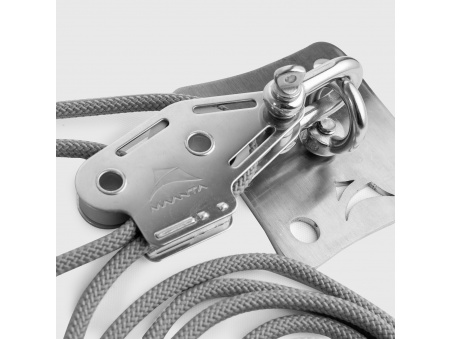

The Muscle x3 wall anchoring kit includes

  • Sturdy square steel plate (10x10cm), 2 D shackles, 1 pulley, 1 pulley with cam cleat, 4 meters of nautical line
  • It guarantees a very high tension to the sail for greater resistance to wind and water
  • Sturdy wall plate (2mm thickness), thicker and bigger than to competing products
  • Well spaced and oversized holes

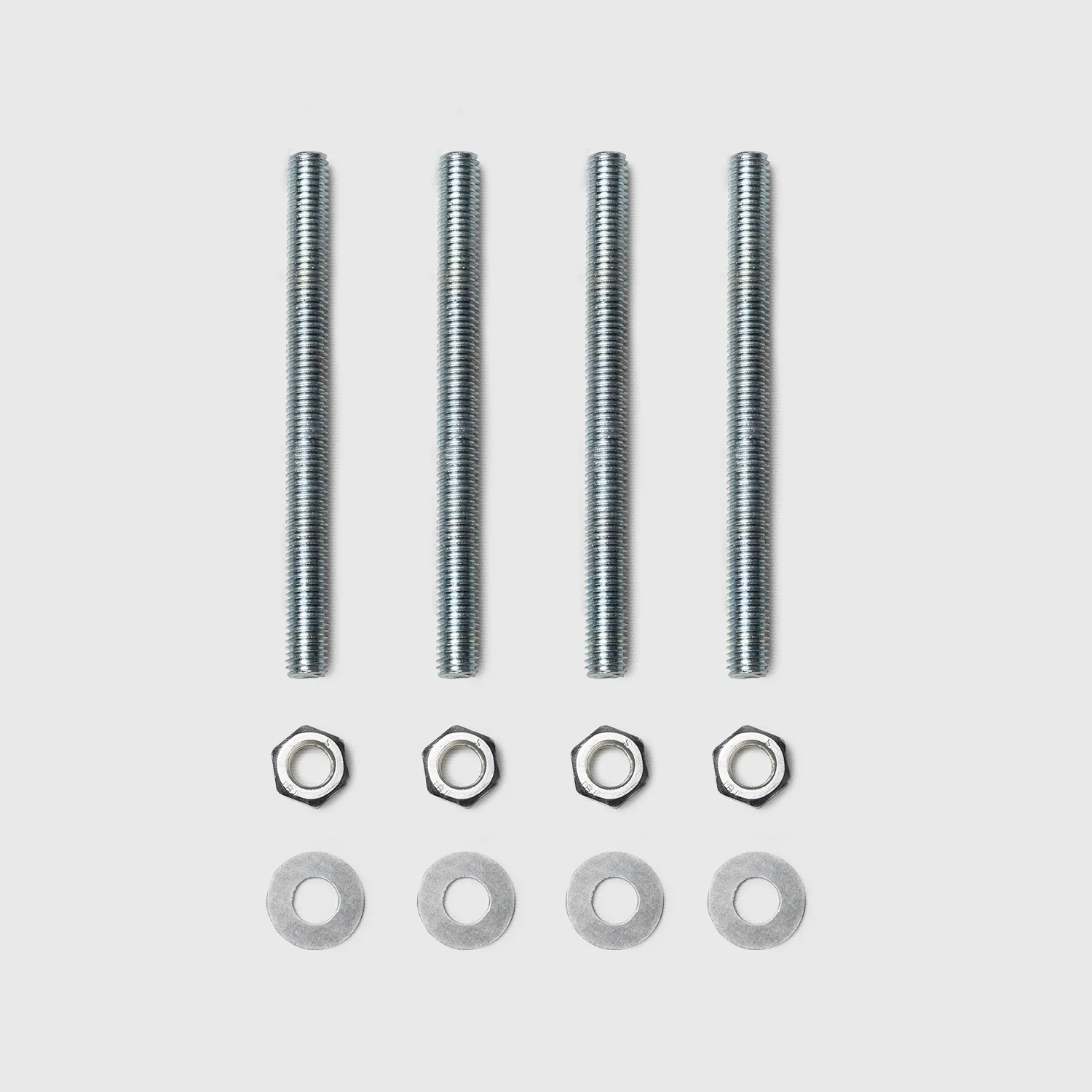

Perfect with threaded rods M10 x 12 cm

More details

  • Single Kit
  • Box for 3 corners
  • Box for 4 corners
  • Galvanized steel
  • Stainless steel

25,93 €

tax incl.

Customer ratings and reviews

Nobody has posted a review yet
in this language

More info



The Muscle x3 kit is the best wall anchor on the market because allows you to stretch any shade sail with great ease.
This version differs as it is produced exclusively with stainless steel and therefore eternal.

What makes it different is the play between the pulleys created (read this content to learn more!) and that allows to reach the sail ring triple the force that we will apply to the rope .

With only 20 kg of tension produced the tent will stretch by 60 kg , which is already optimal for our sails. The larger pulley is equipped with a practical cleat , created to fit the line as soon as we finish exerting pressure.
It will then be easy to remove and re-fit it if necessary.

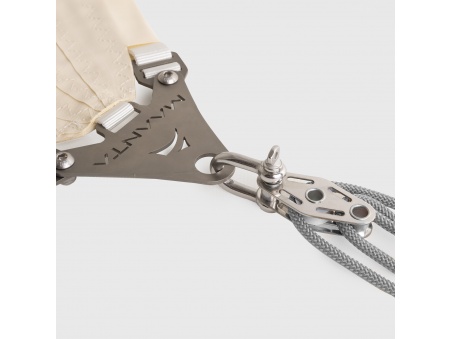

The kit also includes a sturdy 10x10 galvanized or stainless steel plate, 2 galvanized or stainless steel D-shackles and 4 meters of quality nautical rope .

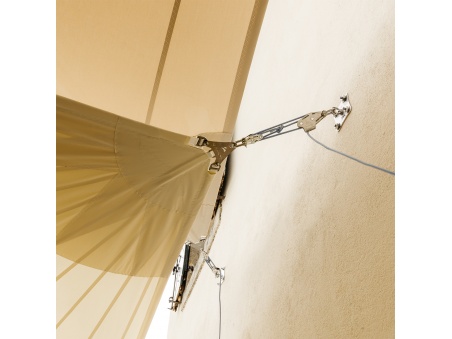

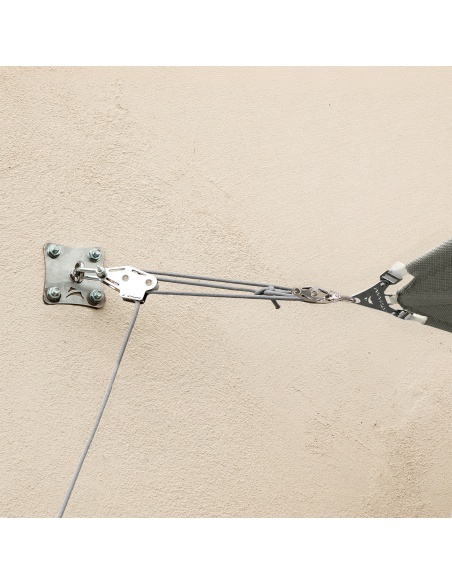

The ideal installation of any shade sail certainly involves the use of this Muscle kit for each angle and an inclination of about 1 meter between the top and bottom sides to allow the sail to cut the wind and drain the water well .

View our YouTube channel!


You will find installation guides and much more: click here!



Guides & Info

GUIDES & INFO

Create Your Project with Our Guides!

Waterproof or breathable?
How to choose the fabric ►►►

Dimensioni e ingombri delle tende a vela:
How to measure spaces and dimensions ►►►

Step by step installation guide
Assembly and maintenance guide ►►►

TENSIONED SAILS

Correct tensioning is one of the most important factors during assembly

The advantages of a well-taut sail are:

  • better wind resistance
  • (does not tear and does not wear fixings)
  • no pockets of water are created (waterproof sails)
  • greater longevity of the sail and fixings



Accessories and other similar products

Spotlight Easy Lamp

The Easy Lamp outdoor spotlight is a technical product with an impeccable construction but at the same time practical and aesthetically pleasing.
It is made of sturdy billet aluminum, has a power of 1200 lumens, is IP66 certified and comes already wired: just plug it into the socket and it will be able to immediately illuminate any outdoor space.

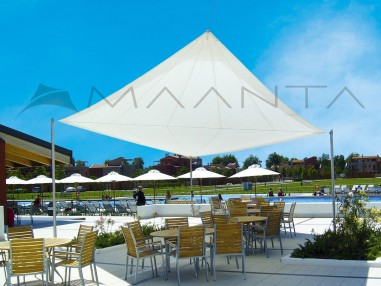

Solaria: Radial Sail Shade "Solaria"



Solaria made in radial cut with Weathertech, an innovative eco-friendly fabric.!

Made in Italy, digitally cut and stitched, drip-proof sealed seams for perfect waterproofness

. Over 15 size variants, machine washable up to 40 °
.

Variable Height Pole "Alu-SimplE"

The Alu-SimplE aluminum kit represents the first technical pole ever developed for sail awnings.
Front and rear lanes for multi-sail hooking.

It includes: 290cm pole, ground anchor plate or 2 wall collars, Muscle Inox kit for sail fixing, hardware and screws.

Available in silver or anthracite.



Advantages

Functionality

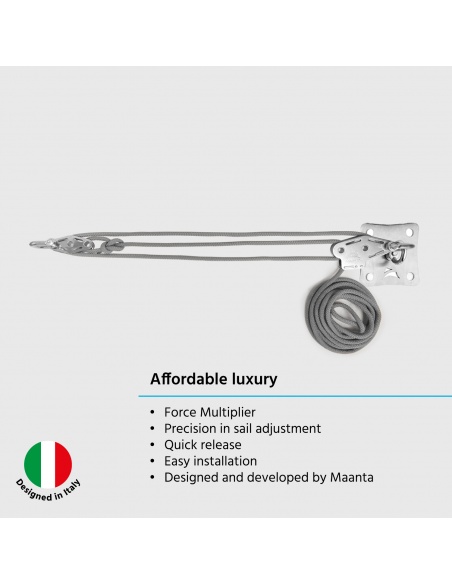

Muscle x3, thanks to the multiplication of force, is the best tensioning system for shade sails on the market.


Adjustment

Thanks to the 4 meters of nautical rope it will be possible to keep the sail and anchor very close but it will also be possible to keep them away up to one and a half meters.


Robustness

The sturdy 2mm plate, the 6mm / 900 daN nautical rope, the oversized pulleys make it a safe, durable, definitive anchor.


Installation

Just follow the guides, and the kit will be very simple to install. The rope will release from the cleat simply by lifting it upwards.



Features

taut fabric triangular shade sail shade

Just apply 20 kg of force on the top to provide a tension of 60 kg at each vertex, great for cutting the wind and draining the water effectively! Just lift the rope while keeping away from the kit to release from the stop!

triangular shade sail shade

The 6mm / 900 daN rope is certainly oversized but will ensure safety and resistance over time.

composition triangular sail tends shading

The multiplication provided by pulleys seems magical but has specific trigonometric sources.

anchor for shading triangular shade sail

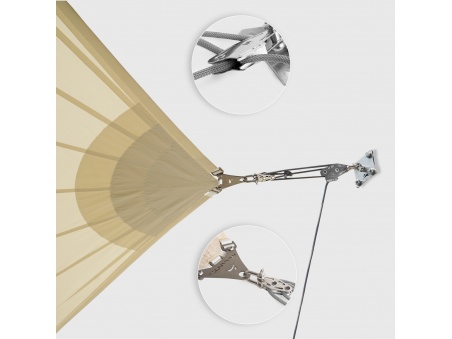

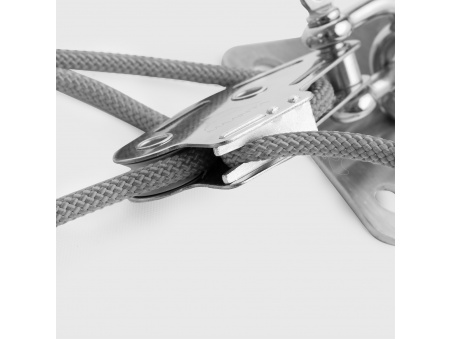

The stop / release system has been designed to be integrated. Just fit the line into the specific V to fix the sail and just lift the line up to free it from its seat.



Strengths MaantA

pulley system for shade sails

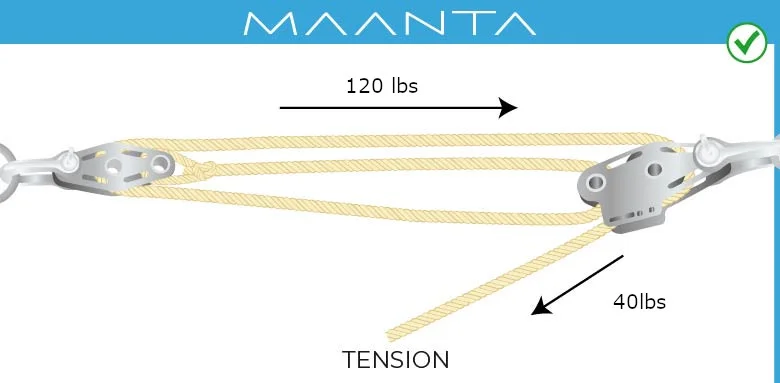

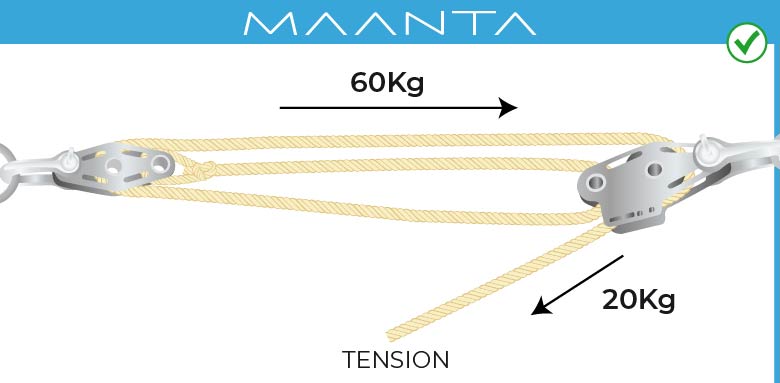

TENSIONE

The Muscle x3 kit is the only one able to multiply the force thanks to the pulleys. By applying only 20 kg to the top, we will be able to tension the top of 60 kg, perfect for any wing!

sturdy steel plate fixing for shade sail

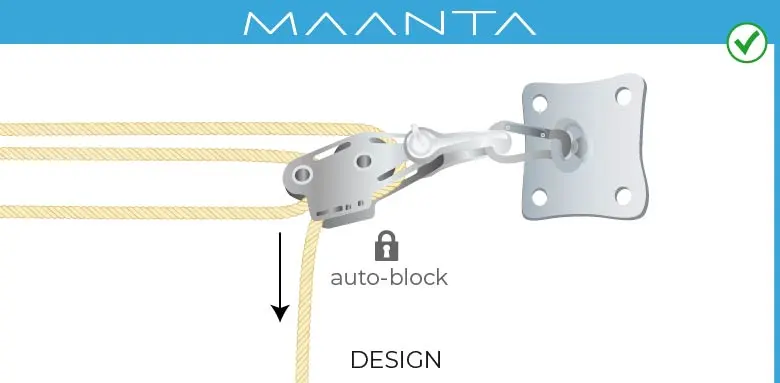

DESIGN

the system design is extremely clean and essential. An element integrates the cleat that effectively pinches the rope without damaging it.

shade sail fixing for all sails

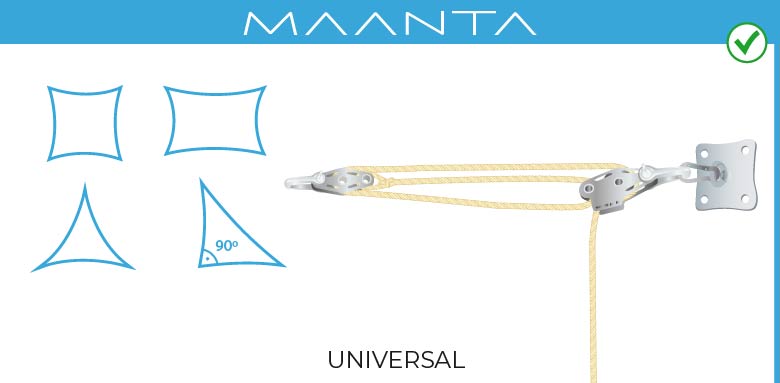

UNIVERSAL

This kit can be applied to any wing on the market!

perfect tension for sun sails

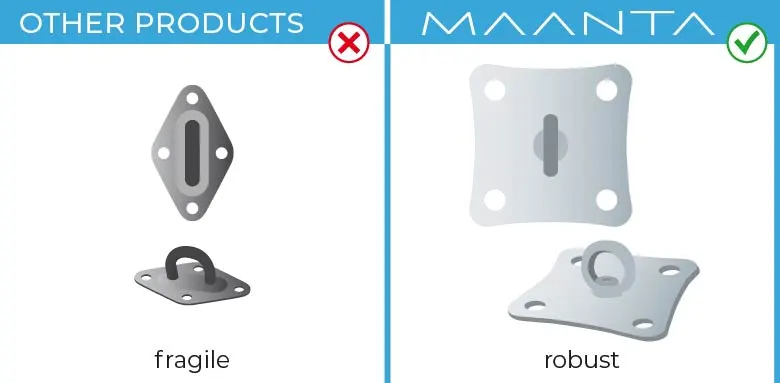

EASY TO INSTALL

The plate can accommodate 4 sturdy dowels or threaded rods, they are well spaced to provide better anchoring opportunities.
The thickness of the plate offers safety and strength.

perfectly taut sail drains water

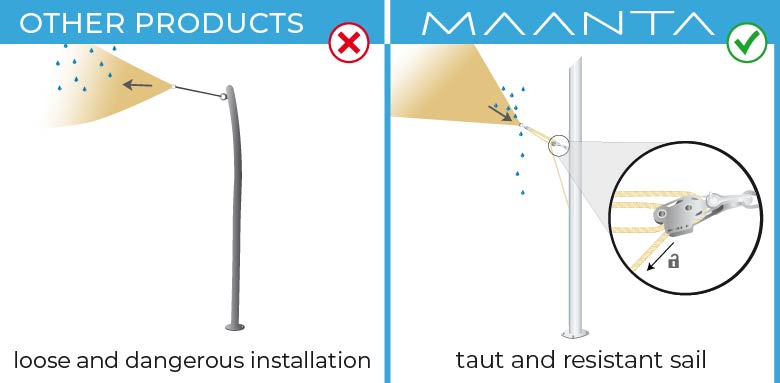

IMPROVEMENTS

The Muscle x3 kit allows for better water drainage, better wind resistance and very quick release.

lenght adjustable fixing for shade sails

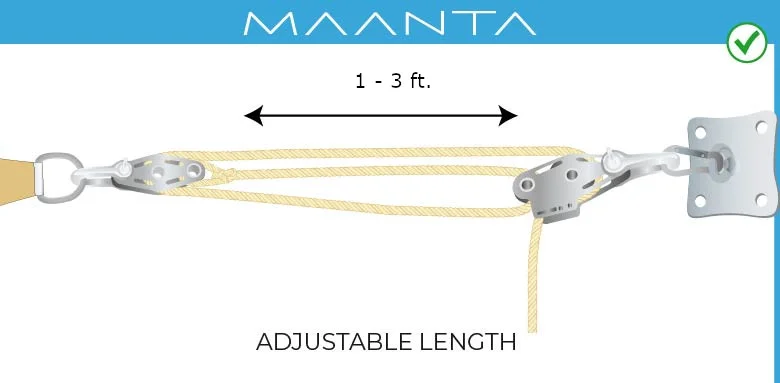

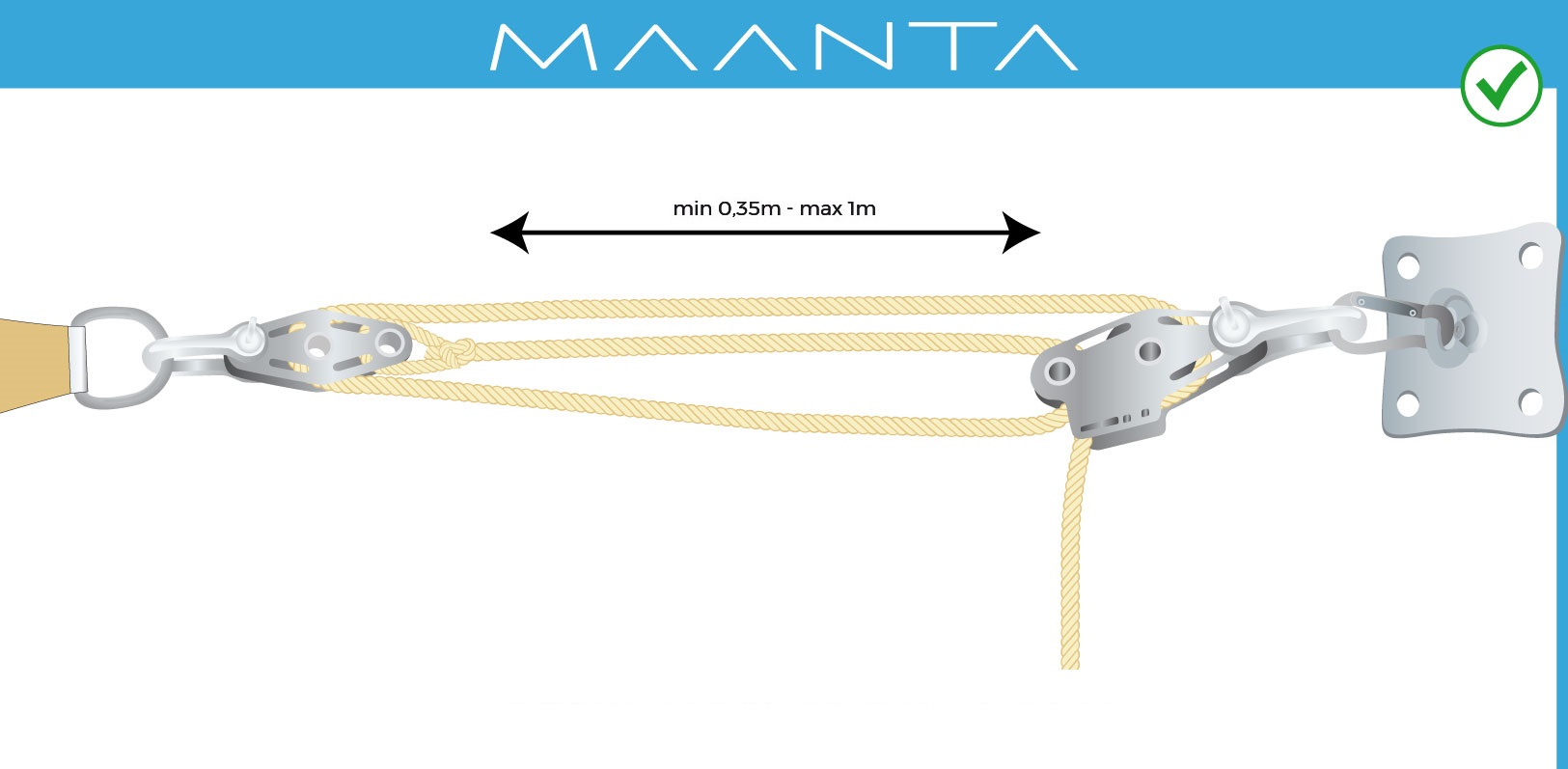

ADJUSTABLE LENGTH

It is possible to adjust the distance between the sail and the anchor in an efficient and fast way.
We can stay closer or further away from the wall according to our needs.



MaantA Shade Sails - Waterproof fabrics

EASY SHADE 2.0 WATERPROOFSAILL WATERPROOFSOLARIA WATERPROOF
EASY SHADE 2.0SAILLSOLARIA
TYPE OF FABRICPOLYESTERWEATHERTECH
POLYPROPYLENE (OLEFIN)
WEATHERTECH
POLYPROPYLENE (OLEFIN)
FABRIC WEIGHT160g/m²270g/m²270g/m²
ECO-COMPATIBILITY'3/55/55/5
SEALED SEAMSYESYESYES
MAX AREA30m²36m²42m²
PERSISTENCE OF COLOR3/55/55/5
WIND RESISTANCE30-39 km/h40-50 km/h51-62 km/h
RESISTANCE
TO TEAR / HAIL
3/54/54/5
WATERPROOF'5/55/55/5
WATER RUNOFF90%100%100%
CONDENSATION RISK3/5 - -
WATER COLUMN50 mm500 mm500 mm
PERCEIVED FRESHNESS2/54/54/5
RESISTANCE TO MOLD3/55/55/5
ABRASION RESISTANCE3/55/55/5
RESISTANCE TO TENSION3/54/55/5
UNIFORMITY TENSION2/54/55/5
FABRIC CUTin bandsin bandsradial
YEARS WARRANTY ***234
COST PER SQMca 4€ / m²ca 19€ / m²ca 29€ / m²
CUSTOM SIZESNOYES (+8€/mq)YES (+8€/mq)
 DISCOVER!DISCOVER!DISCOVER!

* with correct application of tension 45 kg for each corner

** with a minimum inclination of 1m

*** the warranty is recognized for products installed as per our guides and only on manufacturing defects
