Reference
Solaria Furl Breathable Roll-Up Our best retractable, radial-cut sun shade sail
Solaria Furl Breathable, rolls up on itself thanks to the Maanta furler.
You can quickly close the sail via the included furler.
The roll-up sail Solaria Furl Breathable is made in radial cut with Meshnet®.
- Roll-up rectractable shade sail, breathable, with radial cut
- Manual roll-up sytem (no maintenance), retractable in seconds
- Corners with multilayer reinforcements
- Corner plates in 316 marine grade stainless steel
- The only one with adjustable perimeter straps
Product or design questions?
Get our free design help or call us on ✆ +1 888 269 9779
YOU CAN TRUST
Free design service
Delivery 24 / 48 hours
After-Sales Service>
Accessories
Description
SOLARIA FURL shade: The roll-up sail of nautical design and technology
Nautical technology in the service of roller blinds.
Solaria Furl was born from the need to manually furl shade sails, quickly and safely.
The performance of the product combined with ease of use allows opening and closing maneuvers in
a maximum of 27 seconds. The same can be said for installation and set-up operations that will
be within everyone's reach.
FURLER (winder): The
nautical quality of the materials (aluminum and 316 stainless steel) combined with the unique
design means that this product sets a new standard in roll-up retractable shade sail
canopies.
Solaria: Radial-cut sail
that allows greater distribution of tension,
structural rigidity,
durability and better wind resistance (up to 62 40mph).
Radial cutting invented in 1983 by sails designer Tom Schnackenberg introduced a
revolution in terms of fiber orientation and thus cutting as well as seaming. Thanks to this
type of processing we have sails that are more resistant to wind,
with greater strength even over time due to the more even tension and load distribution.
SOLARIA FURL
We started with
the idea of using a nautical gennaker furler. Soon, however, the Maanta team realized that
the requirements for a shade sail are completely different. After many months of planning,
we made the Maanta furler from a solid block of aluminum.
This machining from solid makes the piece unique not only in design but also in technical features.
Large bearings are specifically needed to support the horizontal force exerted by the sail, thus solving another major critical issue.
This machining from solid makes the piece unique not only in design but also in technical features.
Large bearings are specifically needed to support the horizontal force exerted by the sail, thus solving another major critical issue.
WHY CHOOSE A MAANTA FURLING SAIL?
THE FURLER, THE S-GRIPP TECHNOLOGY AND THE MILLING MACHINED FROM SOLID.

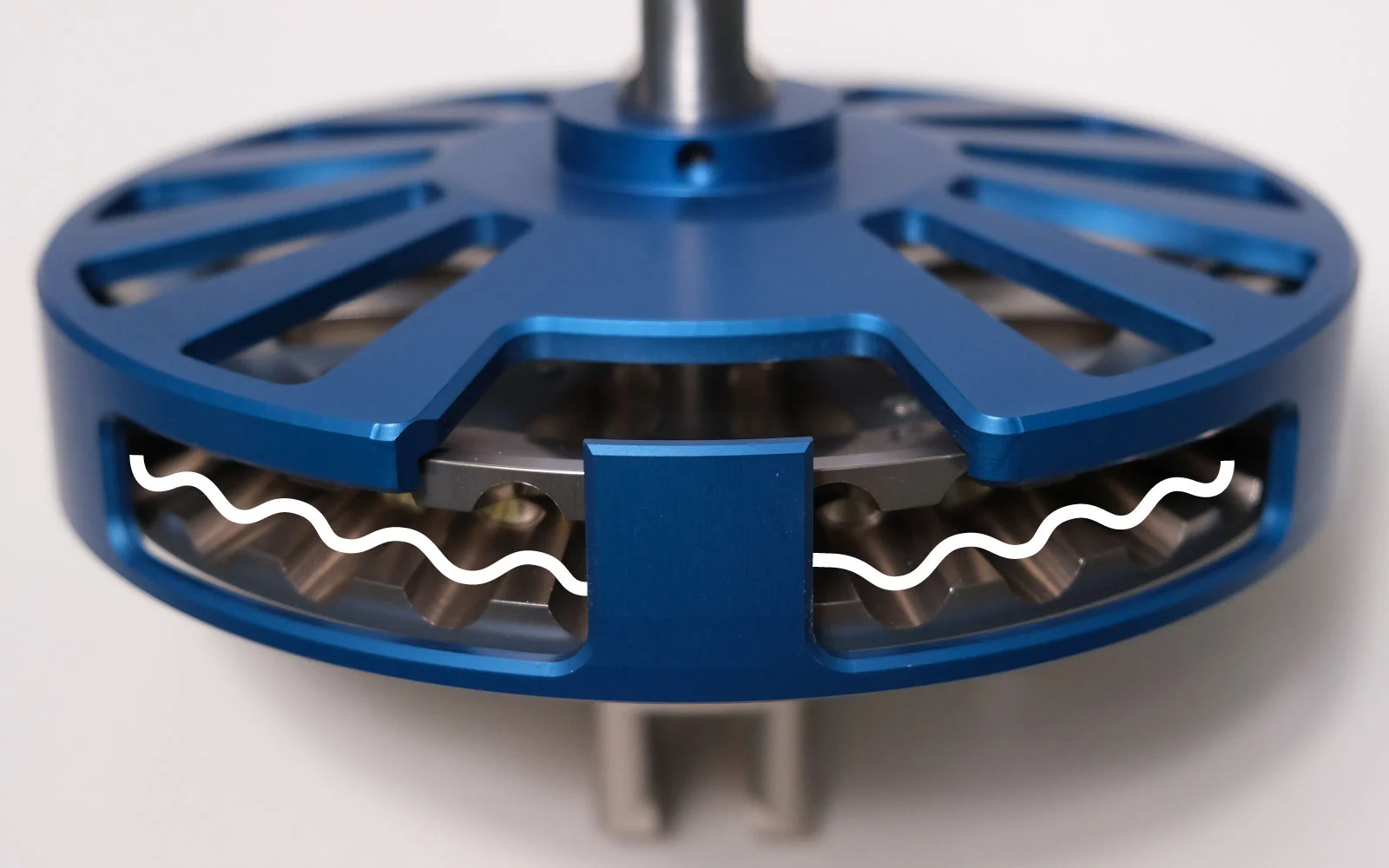

The particular S-shaped hollow of the furler (S-GRIPP technology),
has been studied in order to prevent the endless line necessary for
winding from slipping. It is made from solid, i.e., 'hollowed out' from a
block of aluminum by means of a CNC lathe.
Very elaborate milling ensures
a performance suitable for shade sails and a unique design. This
solution requires some very complicated machining but eliminates any
risk of rope slippage that would cause difficulties in opening and
closing. Rope wear is also greatly reduced compared to a classic
nautical furler.
THE CORNERS WITH STAINLESS STEEL PLATES AND THE ADJUSTABLE PERIMETER STRAPS
We use marine grade 316 stainless steel corner plates
for all of our sails. The reinforcement plates are part of the
tensioning system which, thanks to the adjustable perimeter straps, an
exclusive Maanta innovation, are essential for uniformly tensioning the
entire sail.
The innovative system with individually adjustable perimeter reinforcement straps allows uniform distribution of tension over the entire surface of the sail.

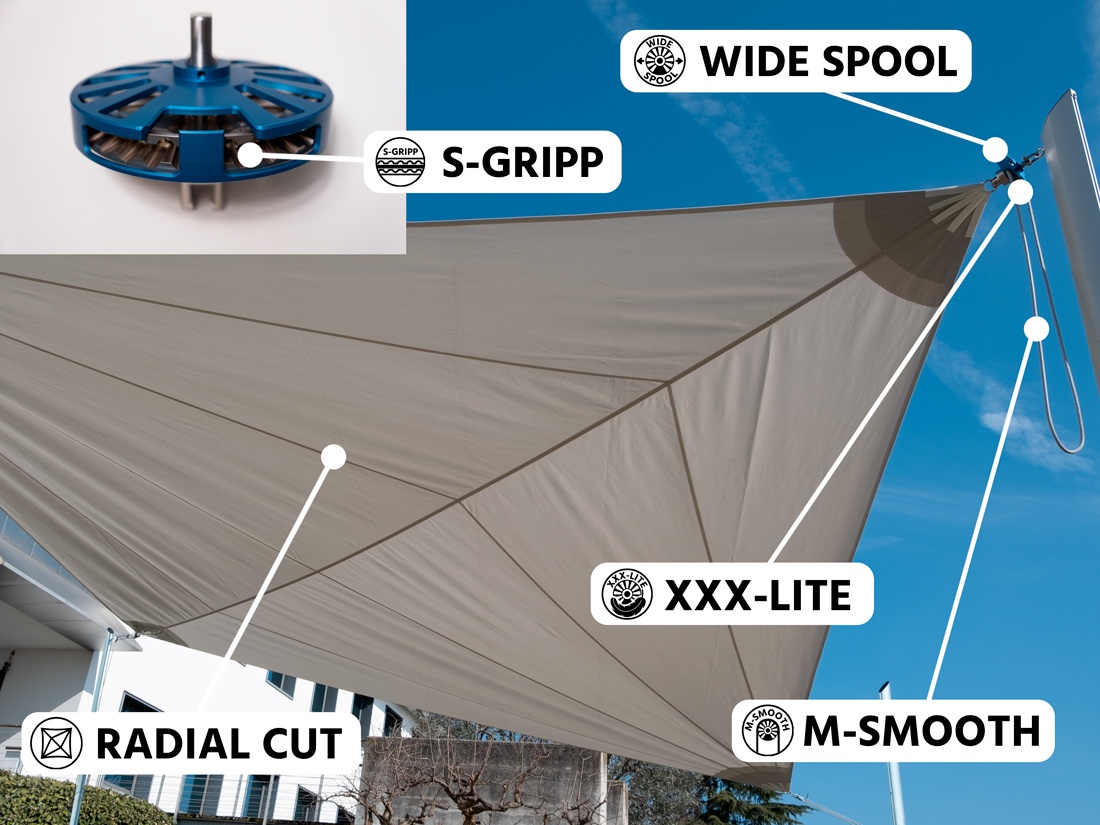

THE TECHNOLOGIES
RADIAL CUT:
Radial seams,
among other advantages,
better withstand the stress of continuous winding and unwinding.
WIDE SPOOL:
Larger diameter coil increases the speed of opening and closing.
XXX-LITE:
The lightness created through design and choice of materials enables faster and
more effective windings.
S-GRIPP:
The special S-shaped groove deforms the nautical rope and ensures greater grip,
less wear and tear, and more effective and safer windings.
M-SMOOTH:
Maanta smooth! No rod and no winding winch.
The furling system via nautical rope ensures smoothness in every maneuver and is designed to be installed just as smoothly and pleasantly!
The furling system via nautical rope ensures smoothness in every maneuver and is designed to be installed just as smoothly and pleasantly!
BENEFITS
1 STEP CONFIGURATION: Muscle Kit X3 included
Thanks to the included Muscle X3 kit with a stainless steel wall plate, you will be able to tension the
sail diagonally without having to measure to the centimeter. Never again will sails be too small or too
big: in just one step you will be able to configure the sail and have it at home ready for
installation.
COVER CAN BE OPENED/CLOSED IN SECONDS
In seconds, with minimal force we will go from sunshine to shadow, from starry sky to modern
cover!
DESIGN
The design of the furler is modern,
essential and minimal. It is inspired by modern nautical furling but also by wide-ranging elements of
furniture and objects.
ROBUST MATERIALS,
MAINTENANCE-FREE
The choice of combining nautical and durable elements was made to avoid wear and tear
problems that would be very troublesome.
ENVIRONMENTAL RESPECT
Aluminum, stainless steel and the fabrics used are easily recyclable and environmentally friendly
materials. All Maanta shipments are also made with 'UPS Carbon Neutral' service to fully
offset the CO2 produced by transportation!
EASE OF UNLOADING AND ASSEMBLY
Upon receipt of goods, there will be no need for forklifts. Assembly will take about 30 minutes.
A LITTLE HISTORY ON THE DESIGN OF THE FURLER MAANTA
Our research and development crew worked on this project for a long time. Our
best sun sail needed a smart system so that it could be furled and unfurled at will. We started by
analyzing the best players in the nautical market, however, considering the fact that furlers, or
nautical furlers, furl vertically while sail awnings furl horizontally-the distribution of forces is
therefore completely different.
We then started by creating a WIDE SPOOL spool that allows more fabric to be
wound than we had seen.
In the hand, the solidity of the furler is immediately noticeable. The
robustness of the furling mechanism is essential to ensure smoothness and ease of operation. The
design and rigorous choice in nautical materials was made to meet the XXX-LITE standards we set for
ourselves.
One of the most common problems in the use of nautical furlers is slippage of the line.
In order not to have to resort to hairy lines that wear easily, we have devised our S-GRIPP
technology: through a forced S-shaped path the line is 'embedded' in the hollow. This
ensures less wear, a secure grip and effective windings without risk of slipping due to the
load.
After several tests, here we are at the end of the path:SOLARIA FURL the first
designer roll-up sail awning produced with nautical materials and
technologies.
Data sheet
SOLARIA FURL shading: THE MANUAL ROLL-UP SHADE SAIL
Maanta's research and development team was well attentive to the needs and demands
of customers, thus integrated nautical technology to shade sails with breathable fabric.
Solaria Furl was born from the need to manually furl shade sails, quickly and safely.
The Maanta furler is made of anodized aluminum and painted in a "stainless steel"
finish. The furler has extra-robust bearings to ensure better smoothness even under load.
This detail is because the shade sails work horizontally and not vertically!
Solaria Furl with breathable fabric contains: the Furl Kit, consisting of furler, swivel, Muscle
X3 system with a stainless steel wall plate and endless line.

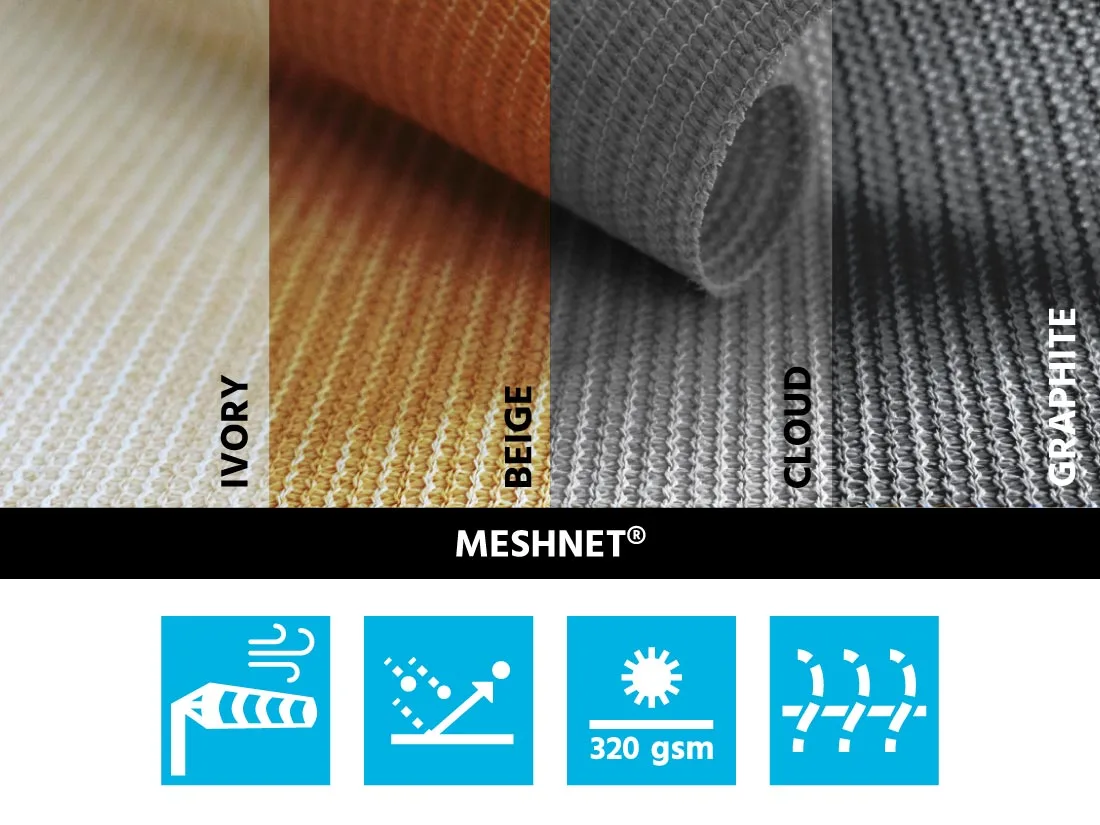

MESHNET® 320 BREATHABLE FABRIC
The 320 gsm Meshnet® protects against harmful UV rays, the cause of many skin problems, by
effectively providing about 90 percent shade factor.
Meshnet® is an anti-mold fabric with strong resistance against chemicals.
The fabric is micro-perforated and allows heat to vent upward, ideal for very windy areas,
allows strong gusts to pass through.
It is a hail-resistant fabric; the fabric is not waterproof.
Meshnet® is available in 4 colors: ivory, beige, cloud and
graphite.
You can continue reading with insights on the Meshnet® page or request free samples by clicking here.
Data sheet
Model: | Solaria FURL breathable |
Available sizes: | Standard and Custom via online configurator |
Overall weight | Variable based on size |
FABRIC | |
Fabric types | Meshnet: Virgin HDPE Polyethylene |
Fabric weight | Meshnet: 320 gsm |
Waterproof | No |
Sealed seams | No |
Maximum area | 270 sq.ft. |
Wind resistance | Meshnet: 34-40 mph |
Fabric cut | Radial |
SAIL STRUCTURE | |
Cut | Radial |
Seams | Triple stitch (zigzag) |
Corners | Triple reinforcement |
Plates | 316 stainless steel |
Perimeter | Adjustable straps |
FURLER STRUCTURE | |
Body | Material: Aluminum and Stainless Steel AISI 316 Color: Anodized blue and stainless steel |
Swivel | Material: Aluminum Color: Stainless steel |
Rope | Hand-spliced rope |
PACKAGING | |
Box sizes | 2 boxes, maximum size 19x24x27 inches |
Package contents and giveaways
PACKAGE CONTENTS
Solaria FURL breathable contains all the necessary accessories. This sales policy will allow you to have a
complete product without any surprise.
On this page you will find the items included in the package of the furling sail.
INCLUDED ELEMENTS
MAANTA FURLER
The furling drum is the heart of the furling system, by means of a
hand-spliced endless line, which is embedded in the hollow with S-GRIPP technology, it allows turning by causing
the sail to roll in on itself.

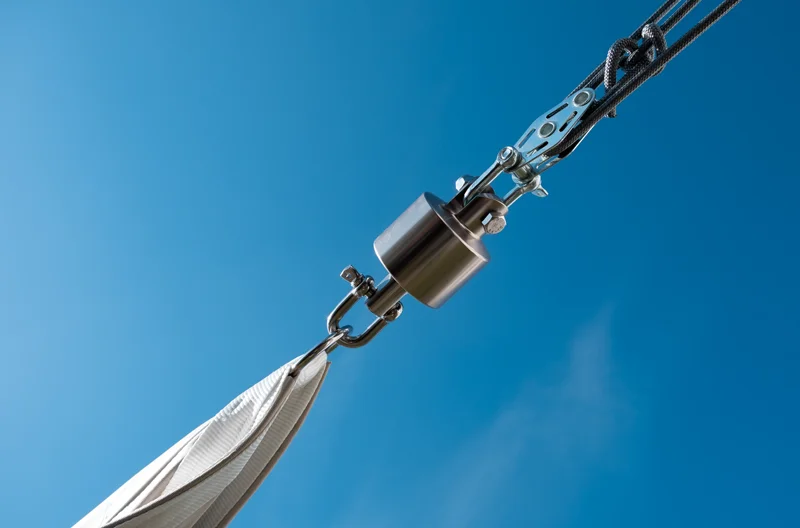

Winder swivel
The swivel is installed on the opposite side of the furler. Thanks to the bearings, it allows
the sail to furl without stressing the fabric.
Muscle X3 with wall plate
The system includes a Muscle X3 kit with wall plate, our tensioning system via pulley
transmission that allows the sail to be tensioned and the furling diagonal to be secured.
This does not include additional anchors, which may be chosen according to the number of corners to be
fixed. See installation examples
Spliced, endless line
The line used to furl the sail is endless. This avoids having dozens of meters of line that
would fall to the ground. The joining is done by hand in Italy.
Quick-release carabiners
Quick-release carabiners are included in our products to ensure a fast, secure and reliable
connection between the elements. This allows our customers to use the equipment efficiently and with maximum
safety.
INSTALLATION EXAMPLES AND OPTIONAL ACCESSORIES
Two walls and a Maanta pole
The diagonalrolling shutter AC will be
fixed to the two walls. The Furler and its swivel will need to be attached via two optional Muscle X3
kits.
Optional accessories for this configuration:
1 x poleAlu Simple or Ulisse
2 x Muscle X3
One wall and two Maanta poles
The AC roll-up diagonal will be attached to the wall and the shade sail pole. Maanta poles already contain
the Muscle X3 kit.
Optional accessories for this configuration:
2 x poles Alu Simple or Ulisse
1 x Muscle X3
One wall kit and three Maanta poles
The AC roll-up diagonal will be attached to the wall and the shade sail pole. Maanta poles already contain
the Muscle X3 kit.
Optional accessories for this configuration:
3 x poles Alu Simple or Ulisse
Four Maanta poles
The roll-up diagonal AC will be attached to the two poles that are included with the Muscle X3
kits.
Optional accessories for this configuration:
4 x poles Alu Simple or Ulisse
Instructions & Info
HOW TO INSTALL SOLARIA FURL
Installing Solaria Furl is easy and does not require
specialized labor or specific equipment.
The furl kit comes pre-assembled,
simply follow the steps in the installation video,
or in the printed guides inside the package.
