Reference

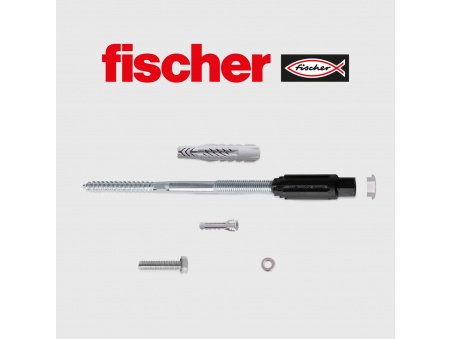

Fischer Thermax 8/120 M6 Fastening system for sails with wall profile

The Fischer Thermax 8/120 M6 is a spaced fastening system designed specifically for applications on insulating coats.
It is used for fixing the sails with wall profile Solaria Lean and Solaria +Plus Lean on walls with insulation from 4" to 4 1/2".

  • Suitable for 4" – 4 1/2" thermal coats
  • No thermal bridges thanks to the insulating cone
  • Simple installation without specific mounting accessories
tip

Do you need support? Contact our team for personalized assistance!

-10% $209.00
$188.10
truck
truck
Order now and receive it by
with DHL Express

YOU CAN TRUST

  • garanzia

    Free design service

  • 1-milione-vendite

    Delivery 24 / 48 hours

  • aiuto-progettazione

    After-Sales Service

Accessories

For wall plates

Fischer Thermax

Insulated wall fixing solution compatible with Maanta wall plates.
188.1 $ 209 $
Discover
Most Loved

4.8

142 verified reviews

Solaria Waterproof

Provides lasting protection in all seasons, ideal for areas with frequent and heavy rainfall.
831.2 $ 1039 $
Discover
Most Loved

4.7

84 verified reviews

Solaria Breathable

Natural shade, ideal for areas with a hot and sunny climate.
719.2 $ 899 $
Discover
Top Seller

4.7

45 verified reviews

Solaria +Plus Waterproof

Full rain protection and high wind resistance thanks to Arroww+ reinforcements.
1439.2 $ 1799 $
Discover
Top Seller

4.7

45 verified reviews

Solaria +Plus Breathable

Natural freshness and optimal ventilation for sunny spaces. Arroww+ reinforcements for maximum strength.
1247.2 $ 1559 $
Discover

Description

Thermax 8/120 M6

Ideal fixing for Lean sails on thermal coated walls

The Thermax 8/120 M6 from Fischer is an innovative spaced fastening system designed for applications on insulating thermal coats thickness from 4” to 4 1/2".
This product offers a stable connection without thermal bridges and is ideal for fixing Maanta sail shades with profile on walls, suitable for models Solaria Lean and Solaria +Plus Lean.

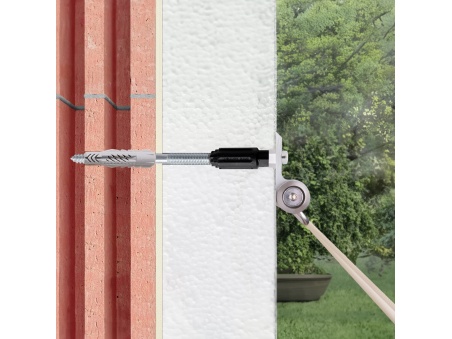

The plastic cone forms a thermal barrier between the fixed object and the inside of the support, ensuring an energy-efficient fastening.

The support materials are several and can range from concrete to full or semi-solid brick, to wood. TherMax 8 and TherMax 10 are suitable for non-through installations.

Complete datasheet available at Fischer site.

Data sheet

Brand Fischer Thermax
Model 8/120 M6
COMPATIBILITY
Sails Sails with straight wall profile
Models Solaria Lean and Solaria +Plus Lean
Thermal coat size From 4” to 4 1/2"
Support materials Concrete
Solid clay brick
Calcium silicate solid brick
Semi-solid (vertically perforated) clay brick
Semi-solid (vertically perforated) calcium silicate brick
Lightweight concrete hollow block
Autoclaved aerated concrete (cellular concrete)
Wood
For other supports consult the Thermax specifications
TECHNICAL DETAILS
Packaging Set of 20 pieces
Dimensions Please see Fischer technical datasheet
Materials Galvanized steel, fiberglass reinforced plastic, stainless steel
Screws Included 6 x 25 TE + washers 6 x 12 (galvanized)
Chipboard / metric screws are alternatively compatible / for sheet metal with the following diameters (4.5 - 6.0 / M6 / 6.3)
MATERIAL NOT INCLUDED
Tip Drill bit length 7” not supplied.
Hole diameter 3/8". Anchoring depth 2 3/8".
PACKAGING AND WARRANTY
Warranty 2 years
Box size Maximum size 8" x 8" x 4"

ITEMS INCLUDED

kit

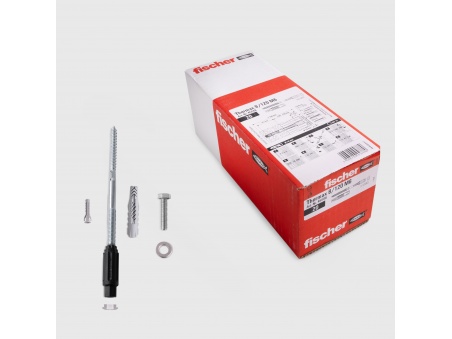

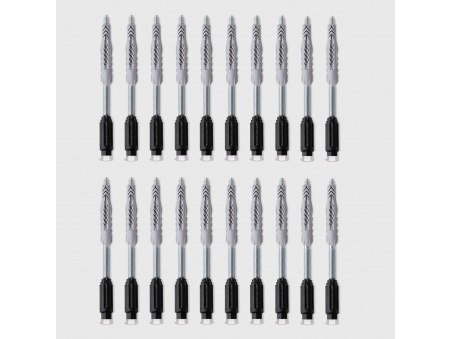

Set 20 pieces Fischer Thermax 8/120 M6

The Fischer Thermax 8/120 M6 Set includes 20 pieces for a secure and thermally insulated fastening on insulating thermal coats.

viteria

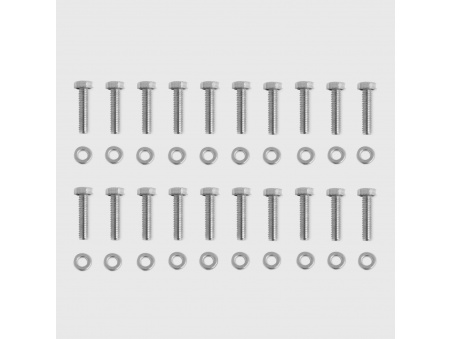

Set 20 pcs Including 6 x 25 TE screws + washers 6 x 12 (galvanized)

Set on 20 pcs 6 x 25 TE screws + washers 6 x 12 (galvanized) for fixing the wall profile on Fisher Thermax.
