Threaded rods for wall plates M10 x 4 3/4" Set of 4 pcs in galvanized steel or stainless steel
Fixing a shade sail to the wall means entrusting a few inches of masonry with all the force the wind puts on it.
The M10 threaded rods secure the wall plate: they anchor deep with injection mortar and hold their grip while the sail works above you. Choose them in galvanized steel for most American backyards and patios, or in stainless steel, which fears neither rust nor salt air, where humidity and exposure run higher.

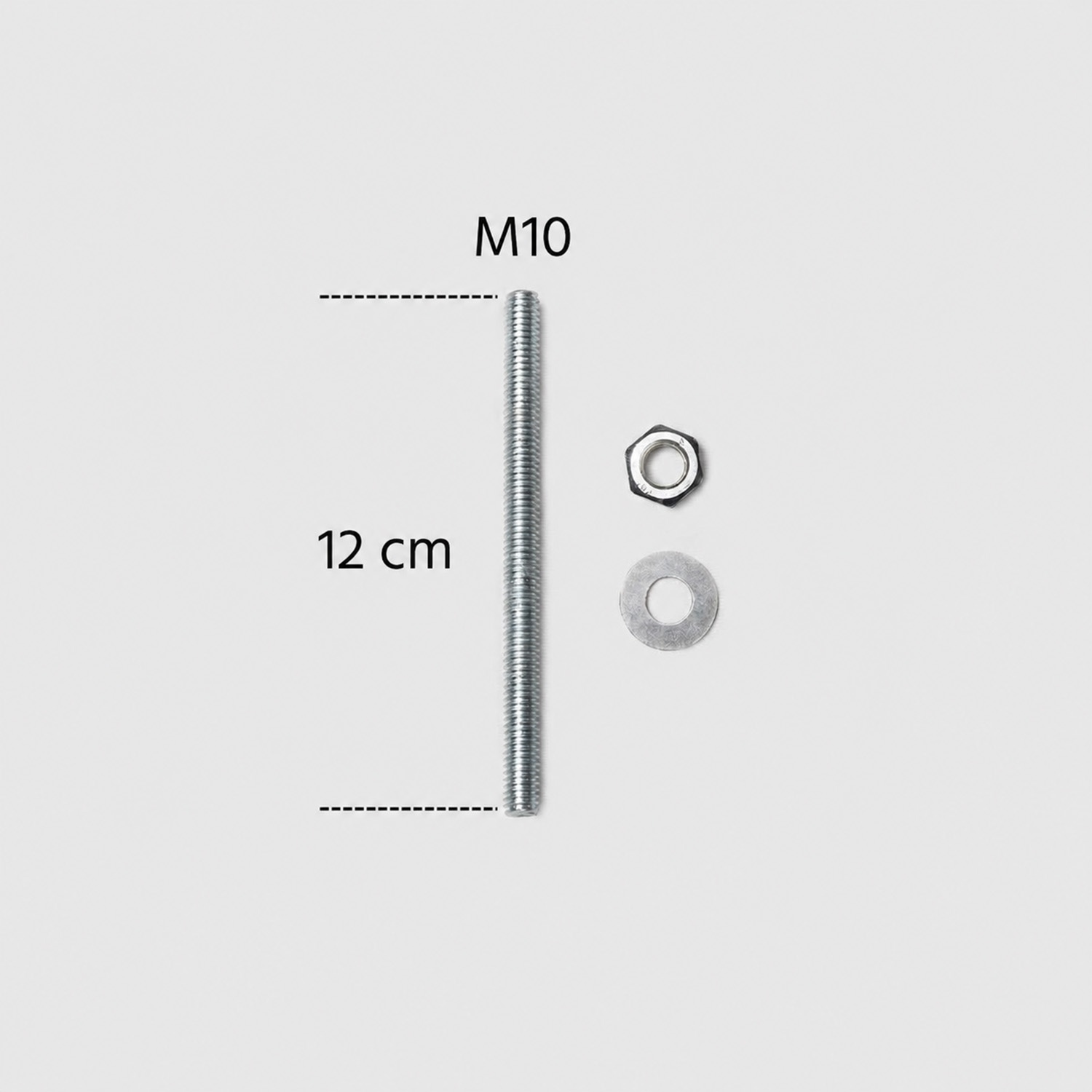

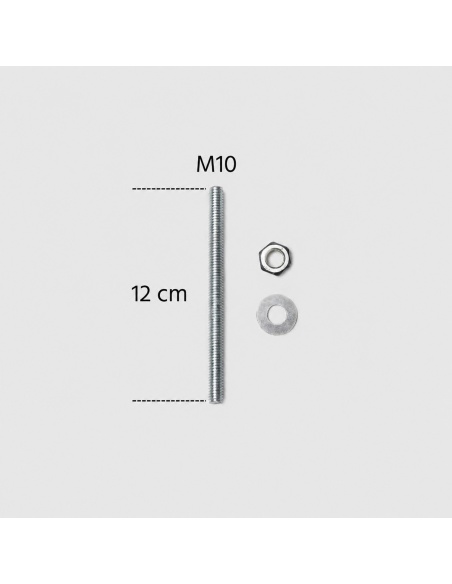

- Complete set: 4 M10 threaded rods, 4 washers, and 4 nuts
- Galvanized steel or AISI 304 stainless steel: two finishes to choose from
- Size M10 x 4 3/4", for the wall plates of Maanta shade sails
- Full hold with M-Plus injection mortar in the masonry
If you're looking for the threaded rods for poles, click here
Choose options
Free design service
After-Sales Service
Delivery 24 / 48 hours
Product Overview
Key Features

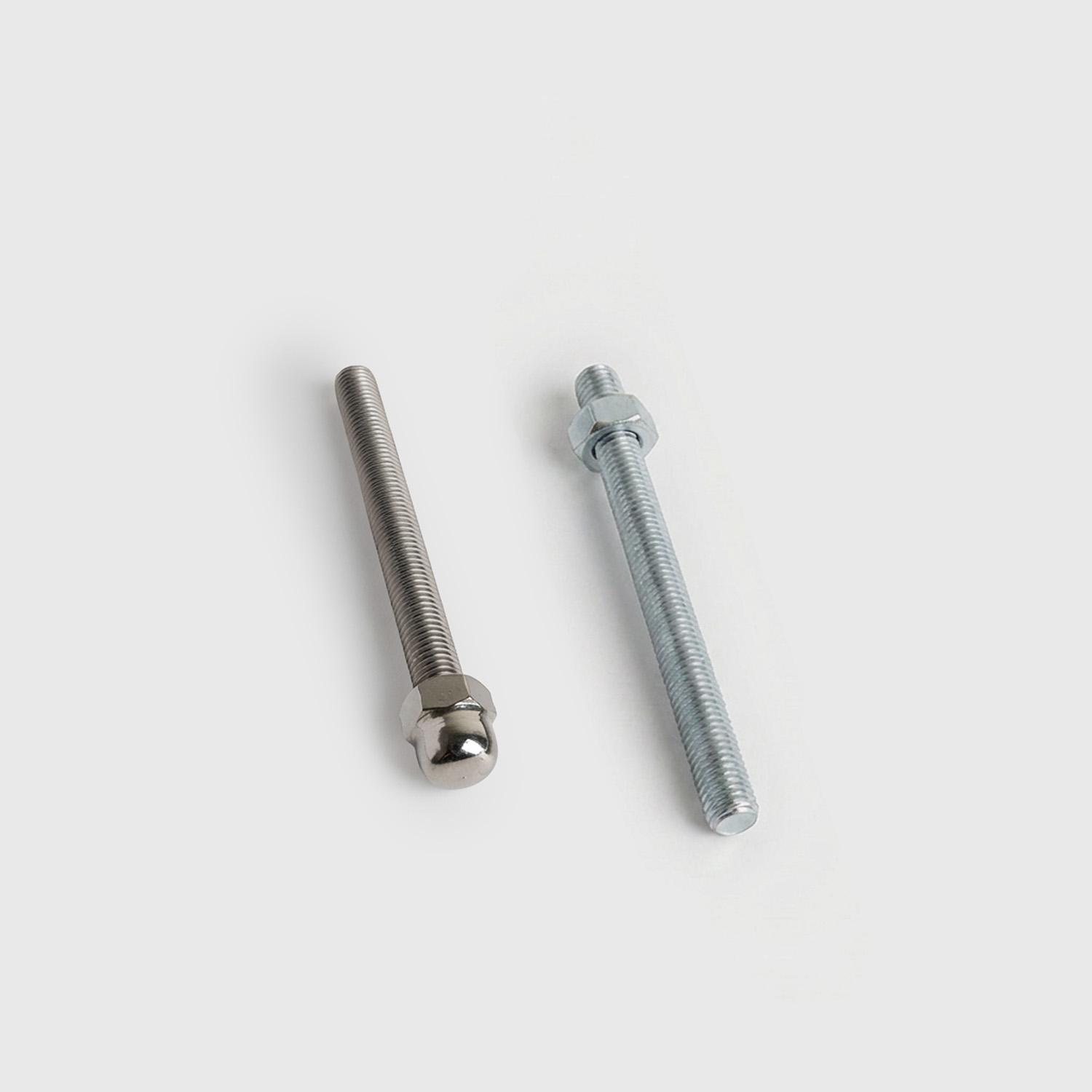

Finishes
Choose between stainless steel or galvanised
Galvanised is the practical choice for most outdoor applications; AISI 304 stainless steel offers greater corrosion resistance in humid or salt-laden environments.

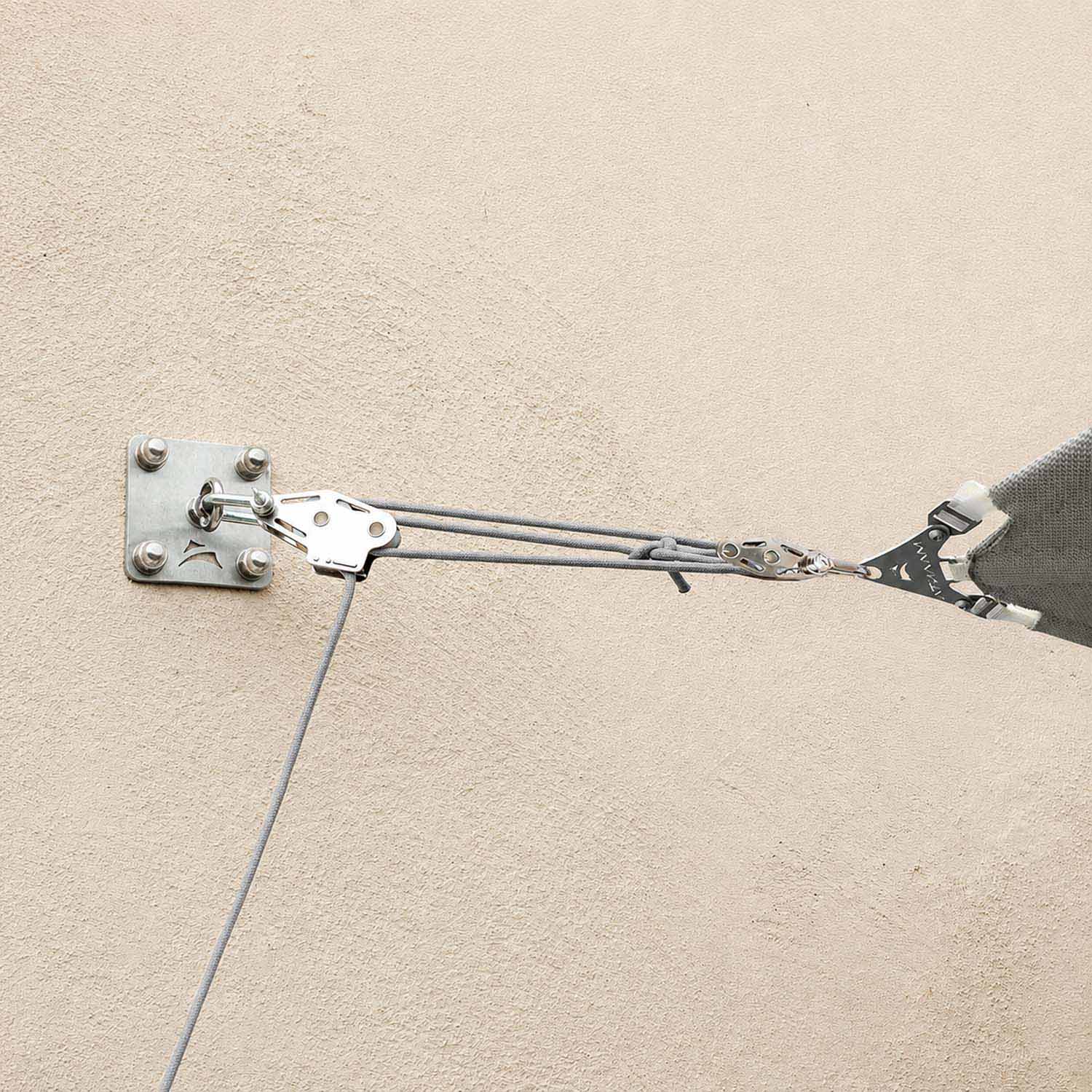

Under Load
Holds the shade sail under load
Combined with a nut, washer and injection mortar, they distribute the tension and keep the plate firmly in place while the shade sail exerts force.

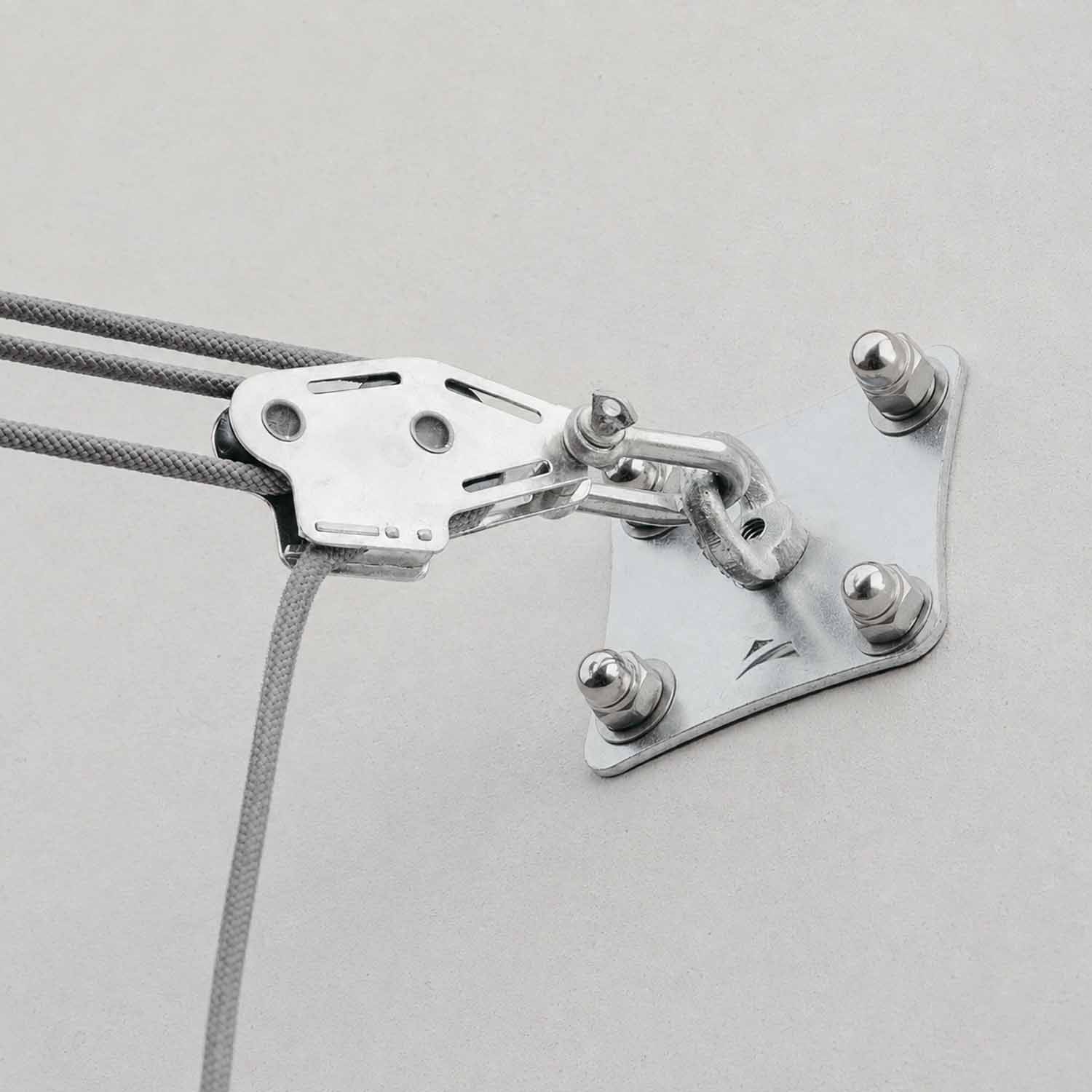

Compatibility
For all Maanta wall plates
The M10 x 4 3/4" size is the right choice for wall-mounting the plates of Maanta shade sails.
Technical Data Sheet
| Model | Threaded Rods M10 x 4 3/4" |
| Available variants | Set of 4 pcs, galvanized or stainless steel finish |
| Included material | 4 M10 threaded rods 4 3/4" long, 4 washers, 4 nuts |
| Required material not included | M-Plus injection mortar, mesh/sleeve anchor (for hollow or perforated supports) |
| Thread diameter | M10 |
| Length | 4 3/4" |
| Material | Galvanized steel or AISI 304 stainless steel |
| Finish | Galvanized / polished stainless steel |
| Load direction | Stainless steel: axial (longitudinal) |
| Material tensile strength | Stainless steel: ≥ 600 N/mm² |
| Resistance | Suitable for outdoor use; AISI 304 stainless steel with higher corrosion resistance |
| Compatibility | All Maanta wall plates for shade sails |
Packaging and warranty |
|
| Recommended installation | Ø15/32" bit; blow out the dust; M-Plus injection mortar; for hollow or perforated bases use a mesh sleeve; insert the bar while turning it, leaving 3/4" protruding; wait for it to cure; insert the plate; secure the washers and nuts |
| Weight | 0.9 lbs |
| Packaging | 11 3/4" × 9 7/8" |
| Warranty | 2 years |
Read less -
Read more +
What you receive with the Threaded Rods for Wall Plates
FAQ
FAQ
It depends on where you install it. Galvanized finish works well for most outdoor installations; AISI 304 stainless steel offers higher corrosion resistance and is the better choice in areas with higher humidity or prolonged exposure to the elements.
To attach Maanta shade sail wall plates to the wall – the point where the sail releases its tension.
Compatible with all Maanta wall plates designed for anchoring shade sails.
No: for pole bases and wall collars, you need the larger M10 bar, the M12 x 13 cm. These M10 bars are designed specifically for wall plates.
The set includes 4 bars: use one for each fixing hole on the plate. For multiple plates, simply add more sets.
Galvanized steel protects against corrosion through a zinc coating; AISI 304 stainless steel resists thanks to its alloy composition and performs better in environments with higher humidity and intense exposure. The choice comes down to long-term outdoor performance, not size — which is identical.
It offers higher corrosion resistance than galvanized steel, but AISI 304 is not a marine-grade stainless steel like AISI 316. In highly saline environments, it holds up well with periodic inspections and occasional rinsing with fresh water.
Diameter M10, length 4 3/4", standard right-hand thread: they use common M10 nuts and washers.
The holding strength depends primarily on the injection mortar used and the type of substrate. The stainless steel rods have a minimum breaking load of 600 N/mm².
Drill into the wall, blow out the dust, inject the injection mortar, and insert the rod by rotating it, leaving enough protruding for the plate. Wait for it to cure, then place the plate and secure it with a washer and nut.
Solid masonry and concrete. For hollow or crumbling surfaces, such as hollow bricks, use a mesh anchor sleeve with injection mortar.
Yes, we recommend it: injection mortar is what gives the bar a full, lasting grip in the wall, where the shade sail pulls continuously.
Occasionally check the tightening of nuts and washers. For the stainless steel version in humid areas or near the ocean, a rinse with fresh water removes salt deposits and extends their lifespan.
Two years. They are sold directly by Maanta, with the warranty managed directly by us.
Reach out to us: Maanta's support team will get back to you within a few business days and find a solution with a scheduled date.
