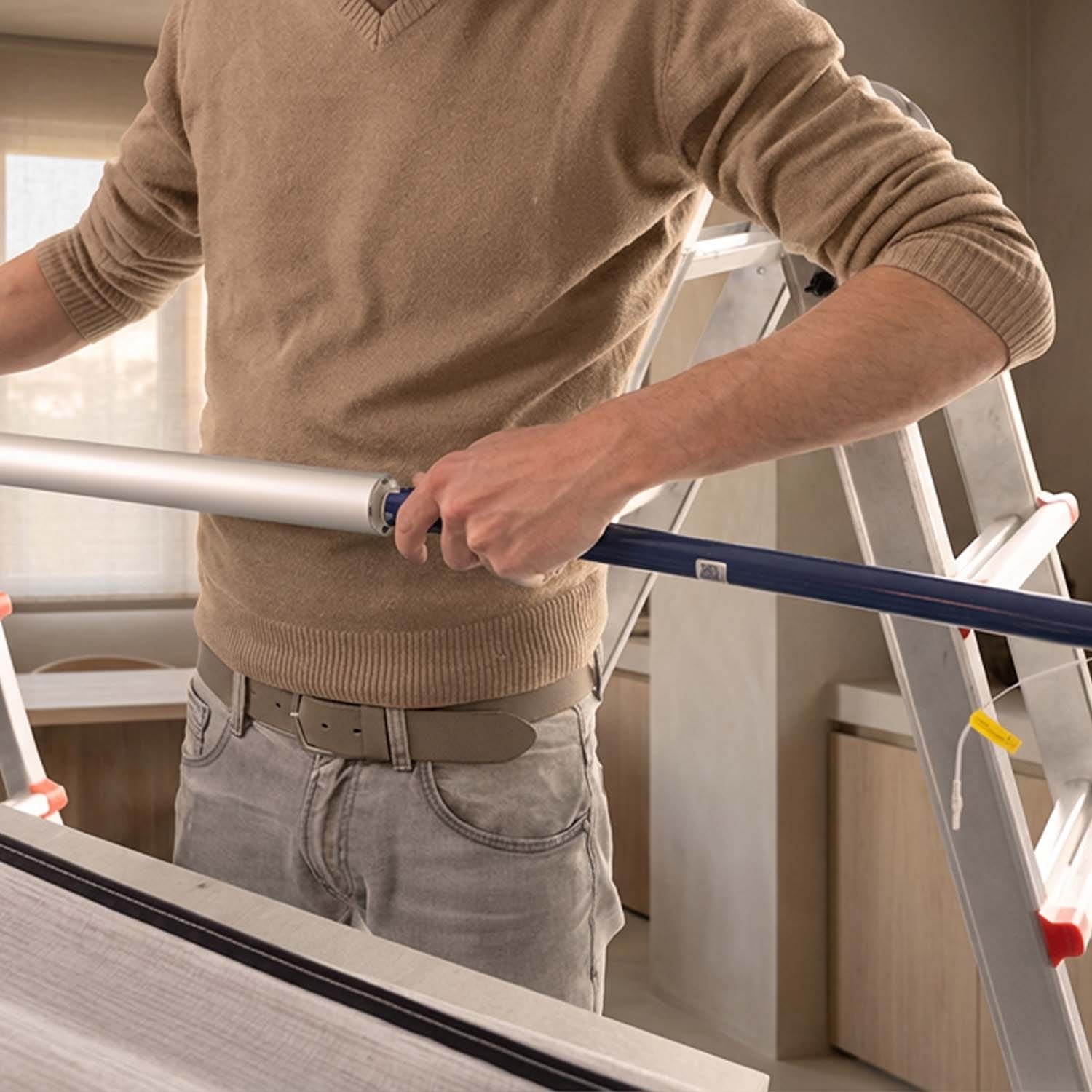

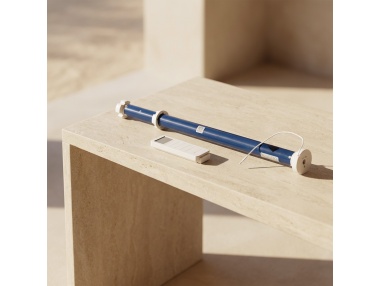

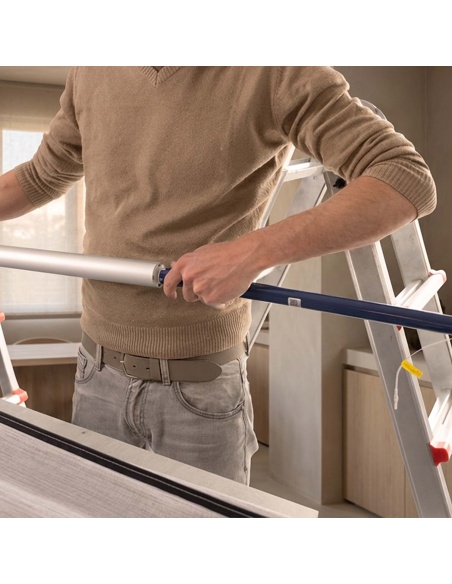

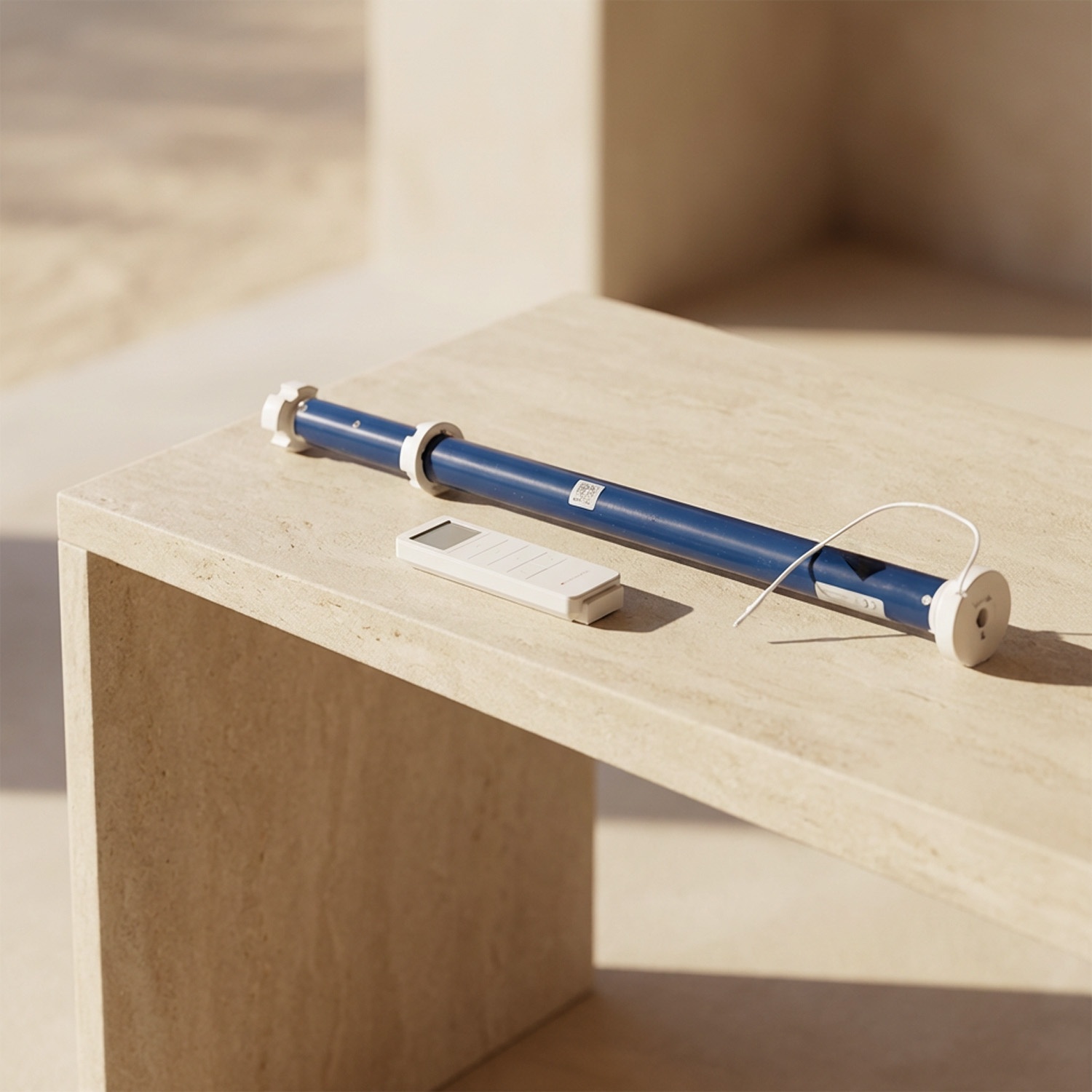

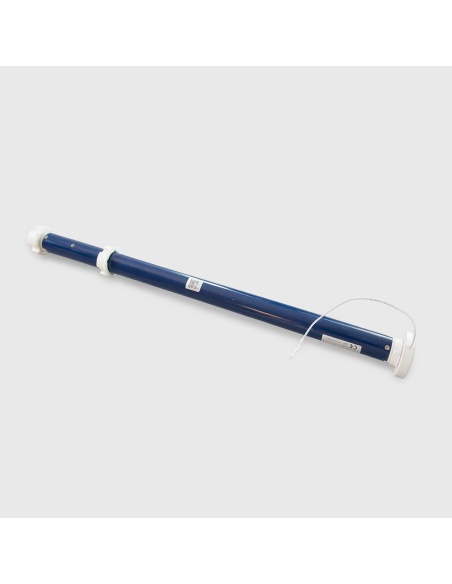

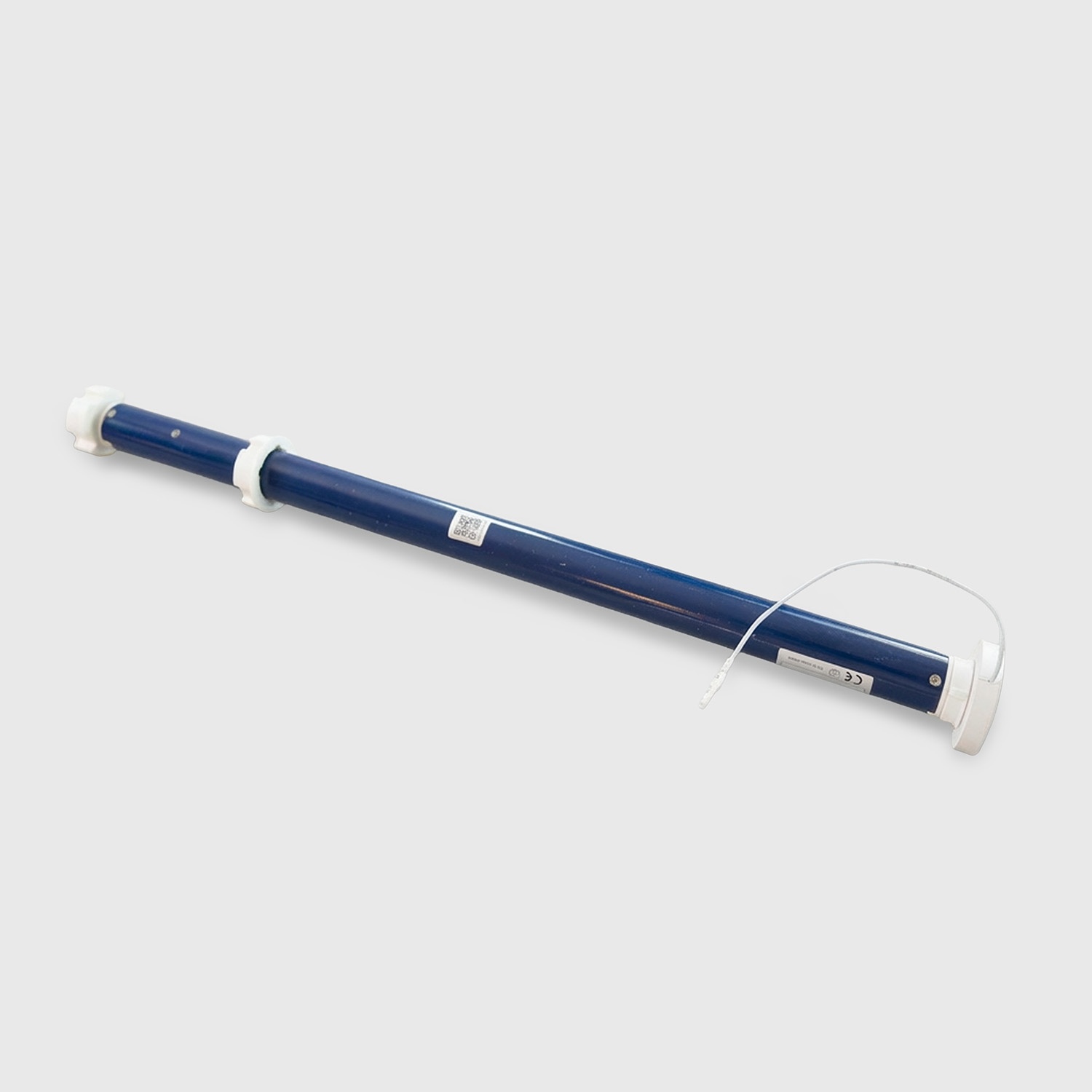

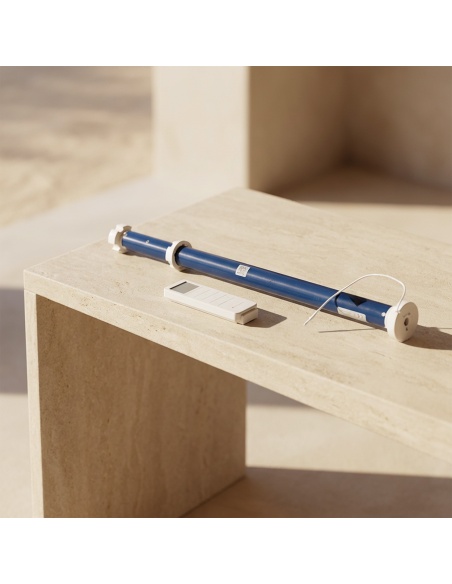

The Maanta roller shade motor installs directly onto the winding shaft in just a few minutes, with no electrician and no wall work required.
Quiet, compact and USB-C rechargeable: control it with the multi-channel remote or, with the optional Wi-Fi Bridge, from your smartphone using Alexa and Google Home.
For the version with WiFi Bridge, click here.
Free design service
After-Sales Service
Delivery 24 / 48 hours
The motor integrates a rechargeable lithium battery via standard USB. No dedicated electrical wiring, no technical intervention required.
A single charge covers weeks of normal use.
The motor integrates a rechargeable lithium battery via standard USB. No dedicated electrical wiring, no technical intervention required.
A single charge covers weeks of normal use.
Integrated 433.92 MHz radio receiver: remote control included, no external module required.
Electronic speed control: noise level below 35 dB, comparable to a whispered conversation.
Anti-overload protection with automatic stop at limit switches: the motor stops on its own, every time.
Multiple programmable stop positions, including favourite position and soft stop.
Over 6 minutes of continuous operation per charge. Daily use morning and evening: a single charge lasts weeks.
EMC, RF and electrical safety tests passed. CE, FCC-ID, RED, RoHS, WEEE, ErP compliance.
| Document / Video | Format | Action |
|---|
Compatibility |
Compatible only with Maanta's Kyma and Recta indoor roller blinds |
Non-compatibility |
Not compatible with Maanta's outdoor drop blinds |
Power supply |
|
Power supply |
230 V/50Hz – 5V D.C. |
Power supply type |
Via direct connection with Type C cable, 5 Volt |
Motor performance |
|
IP rating |
IP20 |
Opening speed |
28 rpm |
Torque |
1.1 Nm |
Noise level |
<35 dB |
Smart functions |
|
Favourite position |
Yes, programmable |
Soft stop |
Yes |
Jog mode |
Yes |
Protections |
Overload protection, automatic stop at limit positions |
Communication and control |
|
Radio frequency |
433.92 MHz |
Installation |
|
Positioning |
Right or left (reversible) |
Environment and certifications |
|
Operating temperature |
-10°C / +60°C |
Certification |
CE |
Blind compatibility |
Recta, Kyma (Maanta indoor roller blinds) |
Warranty |
2 years |
