Ulisse Shade Sail Pole With Variable Height And 6 Fixing Points
The Ulisse shade sail pole is a high tech product, robust but with an elegant, light design and with an efficient functionality.
It has been designed to meet all the needs of sail awnings: maximum flexural strength, the possibility of attaching multiple sails and the possibility of individually adjusting each sail in height.
It combines design and functionality, its elliptical profile is very sinuous and slender but at the same time this gives great structural strength.
- elliptical steel design profile: Height: 108 inches (9 feet) with a diameter of 4 x 2 inches and a thickness of 0.08 inches
- incomparable strength, design and flexural strength compared to any round tube.
- Industrial painting in anthracite colour
- variable and independent height for one or more sails (up to 6). Perfect shade adjustment and dynamic protection from the sun.
- Accessories already included:
- Robust steel base plate with a thickness of 0.4 inches (or wall clamps)
- Muscle x3 kit with nautical rope "silver" for fixing and tensioning made of galvanized steel
- small parts and accessories for assembly (except threaded rods)
Notice: Our products are designed for residential use. Please read our safety and warranty information carefully.
Accessories
The Ulisse shade pole is a specific product for garden sails.
This particular type of shade requires particularly taut fabrics to cope perfectly with the wind and optimize rainwater drainage.
It is also necessary to give a height difference of at least one corner of the sail to allow drainage of the liquid element and/or cut off the air.
It is from these needs that we have created the Ulisse pole, which is considerably stiffer than the 110 diameter stainless steel poles.
The bending strength is incomparable to a 2.4 inches diameter pole offered by many competitors.
The 2mm thickness and elliptical shape make it a design pole but at the same time incomparable tensile strength.
With the new anchoring system, we will have a lot of leeway: since the closer the top is to its anchor, the stronger it will be, the new Muscle X3 anchoring system will allow both maximum tension and maximum freedom.
It is no longer necessary to carefully calculate the dimensions of the kit, as the rope and pulleys will adapt wonderfully to changing needs and allow us to provide great tension to the end, thanks to the multiplication of the force by the pulleys.
With only 30 lbsapplied to the corner of the sail, we get 60 lbs!!!
The galvanizing process makes our colors persistent and durable, while the 4 different height options make the canopy malleable, helping you create shade where you need it (just raise or lower the flap), offering dynamic protection and aiding perfect rainwater drainage.
Up to 4 different sails (or 2 front sails and a rear brace to aid anchoring) can be anchored to the same pole using the hooks already provided!
The joint is designed to further reinforce the pole itself.
The pole restraint is achieved using a special mold that works to the tenth of a millimeter.
It will then be easy to assemble/disassemble the pole if necessary, mainly due to its design features and compact dimensions.
The pole kit includes a very sturdy plate a 0.4 inches thick base, able to withstand inclement weather.
Available in 75° - 90° and wall collar versions it is a specific and design shade sail pole with an unbeatable price/performance ratio.
Available versions

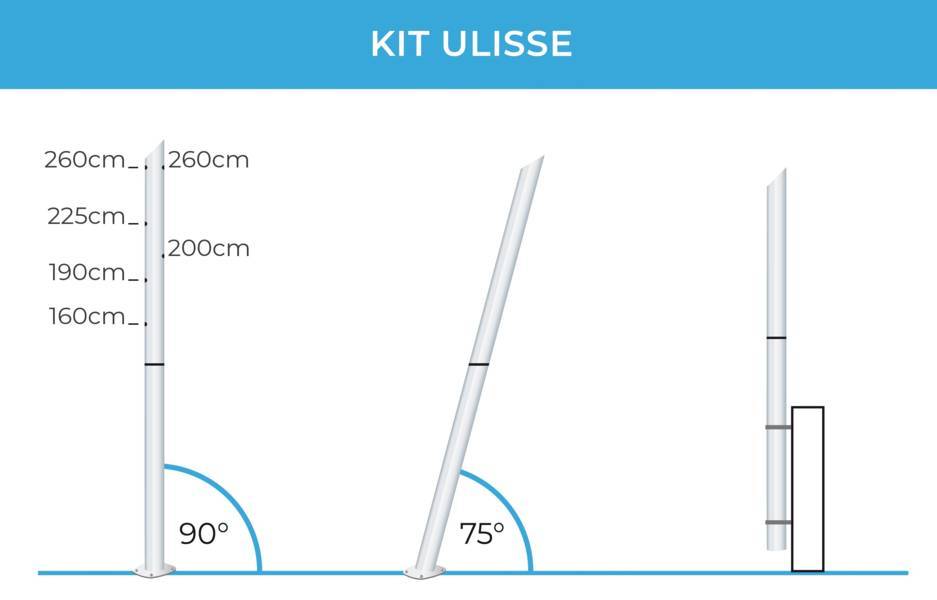

Ulisse - the 3 versions of the Ulisse Kit

The pole is available with 75° or 90° base plate.
Or with 90° wall collars, for the vertical fixing on walls.

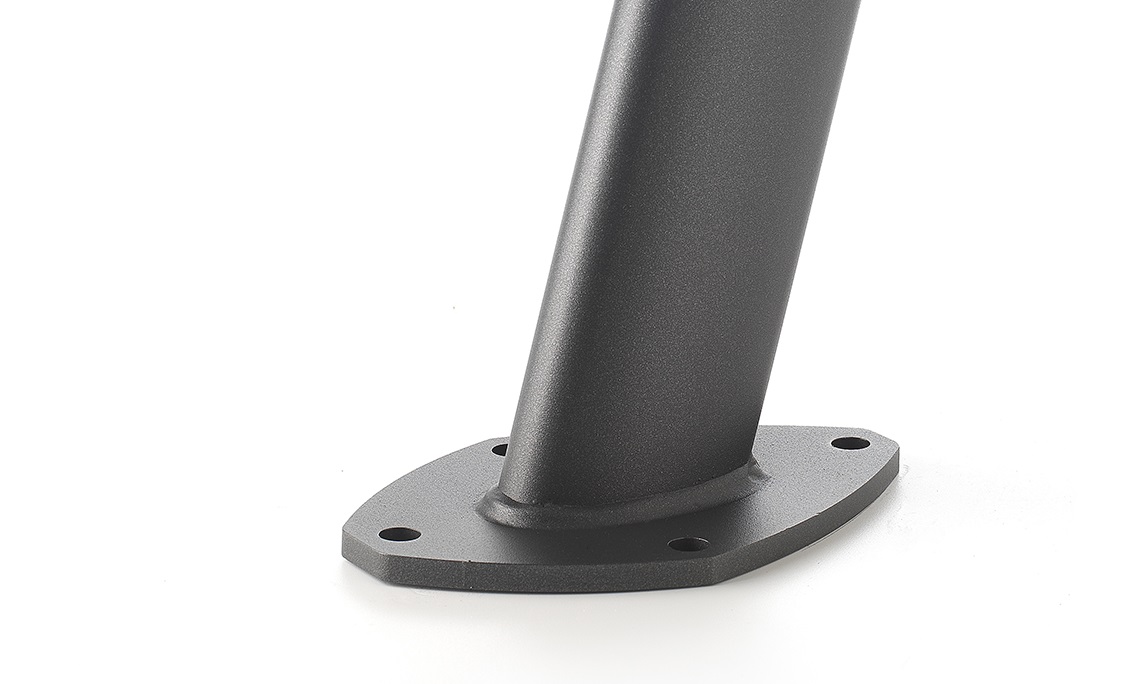

Installation of the base plate

The base can be fixed on a concrete floor using threaded bars (available here).
Advantages

Functionality
Multi-sail setup, multiple fixing points. 4 Front and 2 rear fixing points that can also be used for accessories such as tie rods.


Design
The slender but sinuous profile goes perfectly with shade sails


Robustness
The incredible flexural strength makes it ideal for keeping shade sails perfectly taut, essential for ensuring resistance to wind and water runoff.


Installation
Just follow the guides, and the pole will be very simple to install. It is already equipped with ground bases or collar, and special tensioners to anchor the sail.

Features and Dimensions

Thanks to the various fixing points it will be possible to lower or raise the sails dynamically, effectively protecting from the sun.

Both the galvanized and painted versions are resistant to rust and salt. The design and thickness make it virtually free of bending.

The elliptical tube has been carefully selected: the profile has a very sinuous design that goes perfectly with the lines of the sails. In addition to this it shows great resistance to bending, both thanks to its thickness and to its shape.

The kit is offered full-optional and already includes the appropriate accessories to attach the sail but also the ground base or the wall collars.

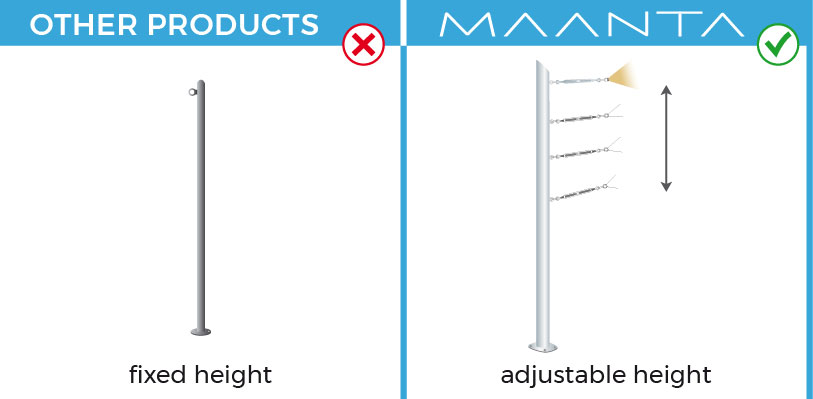

VARIABLE HEIGHT
Only thanks to this functionality will we be able to have a dynamic shading, a unique design and a installation able to drain the water and cut the wind.

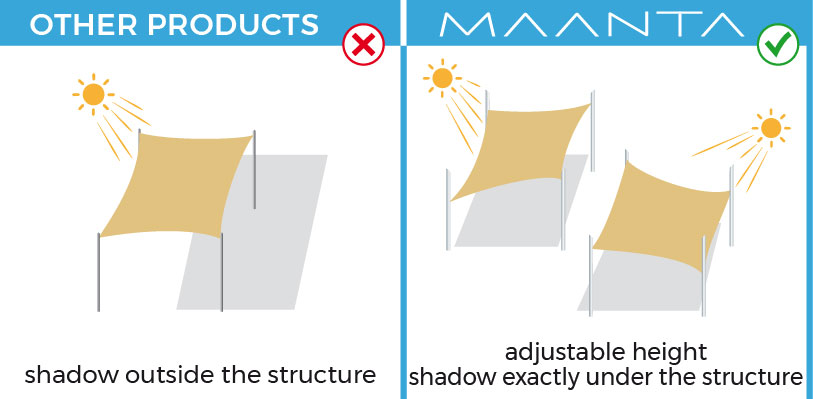

DYNAMIC SHADING
The ability to adjust the heights of the individual sail corners allows us to obtain shadow exactly below the structure. We can vary the heights in a few seconds, thus varying the shading.

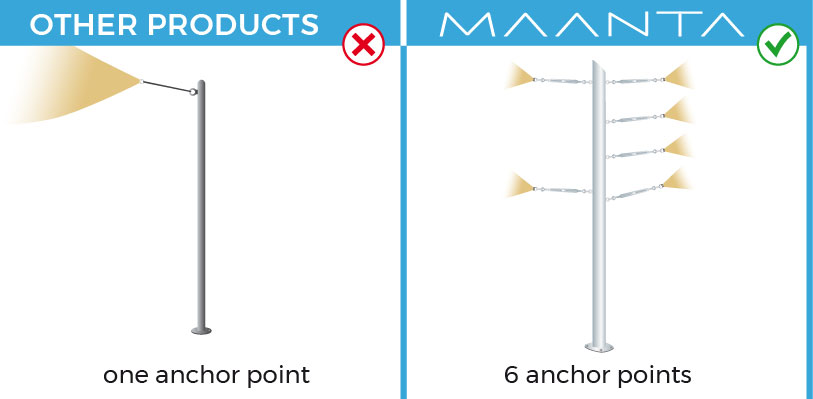

MULTI-SAIL FRONT/REAR
There are 6 fixing points, 4 front and 2 rear. Up to 6 sails (or accessories such as tie rods) can therefore be hooked at the same time.

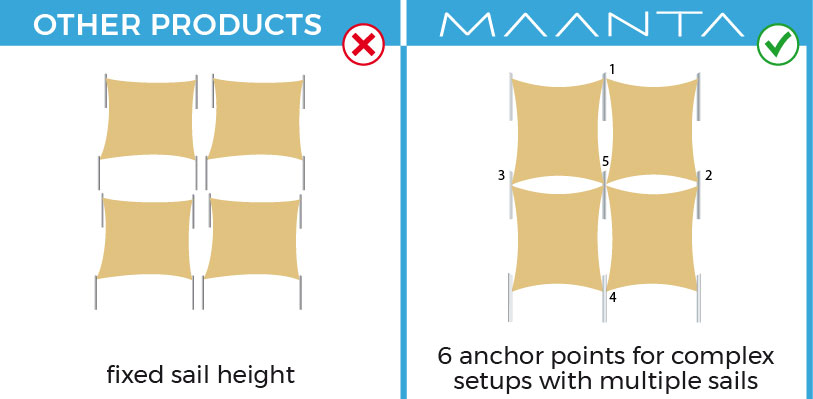

MULTI-SAIL SETUPS(UP TO 6 SAILS)
Thanks to the 6 anchoring points on one single pole we can perform multiple installations to cover important spaces using a single pole.

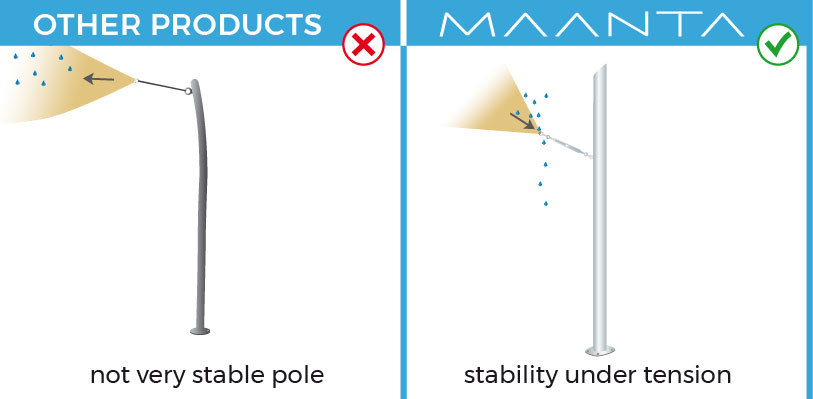

STABILITY UNDER TENSION
The elliptical profile combined with the thickness and diameter make this pole really rigid. This resistance to bending is extraordinary in order not to lose tension on the sails and not to make him "water bellies".

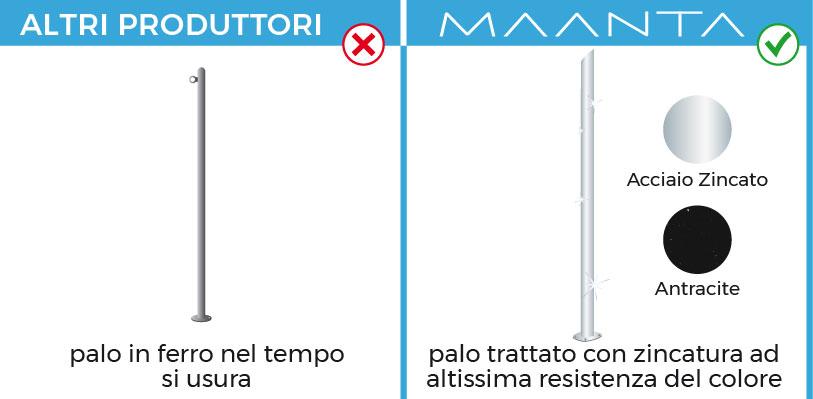

RESISTANCE
The pole is subjected to high-quality protective galvanising. The anthracite version is industrially powder-coated.

FULL-OPTIONAL
Includes a sturdy 10 mm thick steel floor base (or wall brackets), variable height, Muscle hitch and cable stay kit.
