Muscle x3 Pole with traction booster

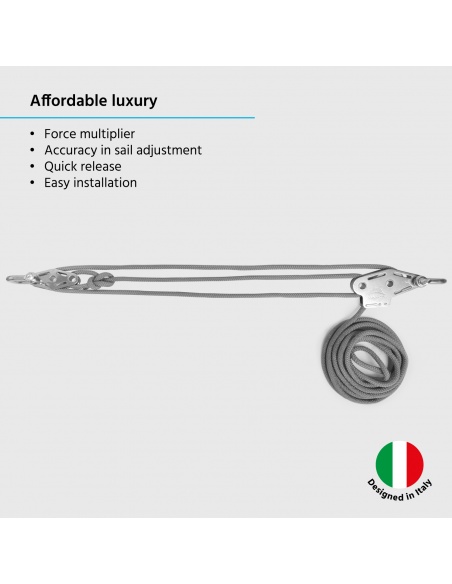

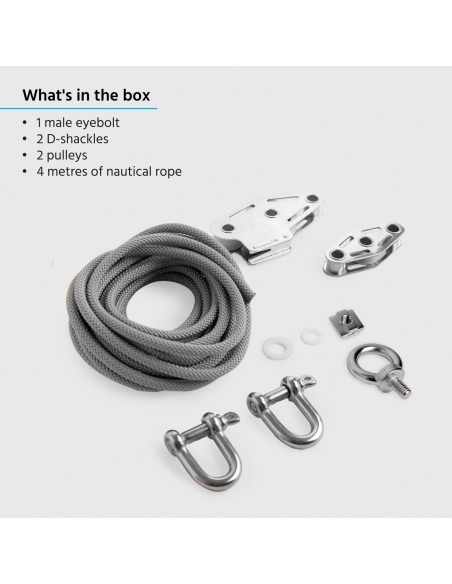

The Kit Muscle Pole x3 for poles includes
- T-nut (useful x Alu Simple)
- 1 male eyebolt galvanized steel
- nylon washer
- 2 D shackles
- pulley with cam cleat
- 4 meters of nautical rope
It guarantees a very high tension to the sail for greater resistance to wind and water

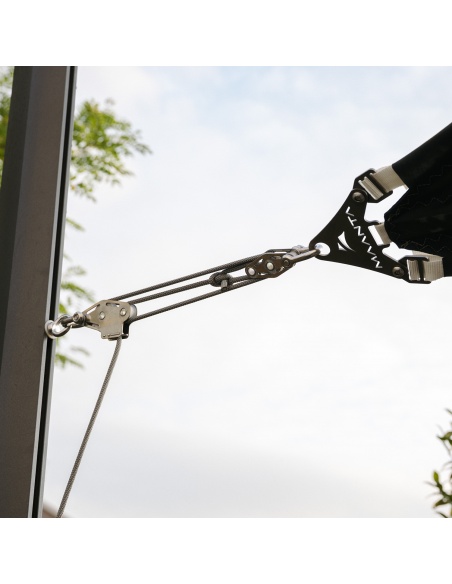

It can be installed in our Ulisse and Alu-SimplE poles .
Notice: Our products are designed for residential use. Please read our safety and warranty information carefully
THe kit Muscle x3 Pole kit is the best wall anchor on the market because allows you to stretch any shade sail with great ease.

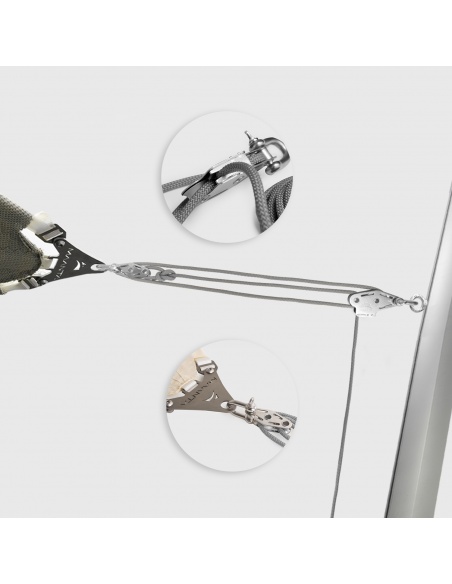

What makes it different is the play between the pulleys created (read this content to learn more!) and that allows to reach the sail ring triple the force that we will apply to the rope. With only 20 kg of tension, produced the sail will stretch by 60 kg , which is already optimal for our sails.

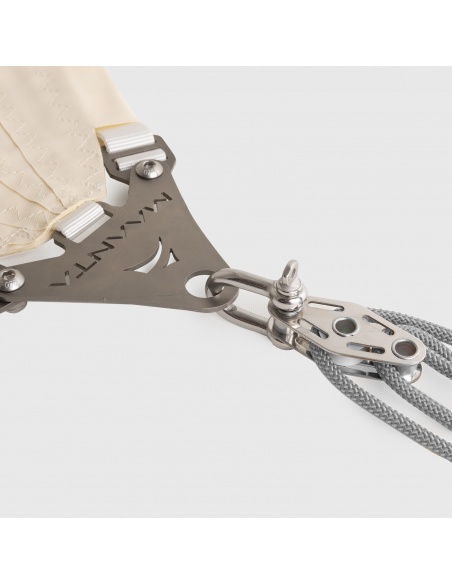

The larger pulley is equipped with a practical cleat created to fit the line as soon as we finish exerting pressure. It will then be easy to remove it and re-fit it if necessary.
The ideal installation of any shade sail certainly involves the use of this Muscle kit for each angle and an inclination of about 1 meter between the top and bottom sides toallow the sail to cut the wind and drain the water well.
View our YouTube channel!
You will find installation guides and much more: click here!
Guides & Info
Create Your Project with Our Guides!
Waterproof or breathable?
How to choose the fabric ►►►
Dimensions of the sails:
How to measure spaces and dimensions ►►►
Step by step installation guide
Assembly and maintenance guide ►►►
Correct tensioning is one of the most important factors during assembly
The advantages of a well-taut sail are:
- better wind resistance (does not tear and does not wear fixings)
- no pockets of water are created (waterproof sails)
- greater longevity of the sail and fixings
Muscle x3, thanks to the multiplication of force, is the best tensioning system for shade sails on the market.
Thanks to the 4 meters of nautical rope it will be possible to keep the sail and anchor very close but it will also be possible to keep them away up to one and a half meters.
The sturdy 2mm plate, the 6mm / 900 daN nautical rope, the oversized pulleys make it a safe, durable, definitive anchor.
Just follow the guides, and the kit will be very simple to install. The rope will release from the cleat simply by lifting it upwards.

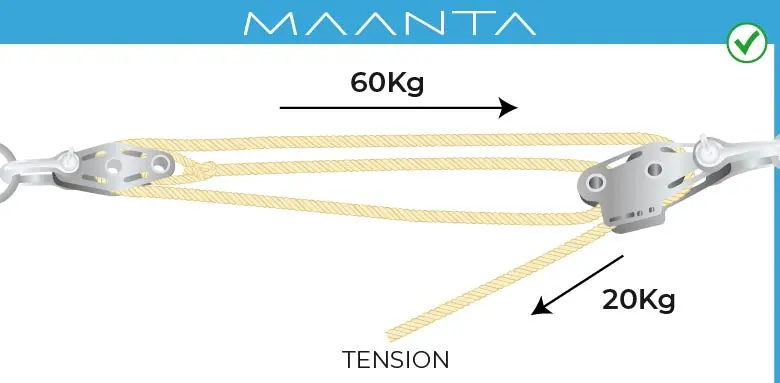

Just apply 20 kg of force on the top to provide a tension of 60 kg at each vertex, great for cutting the wind and draining the water effectively! Just lift the rope while keeping away from the kit to release from the stop!
The 6mm / 900 daN rope is certainly oversized but will ensure safety and resistance over time.
The multiplication provided by pulleys seems magical but has specific trigonometric sources.

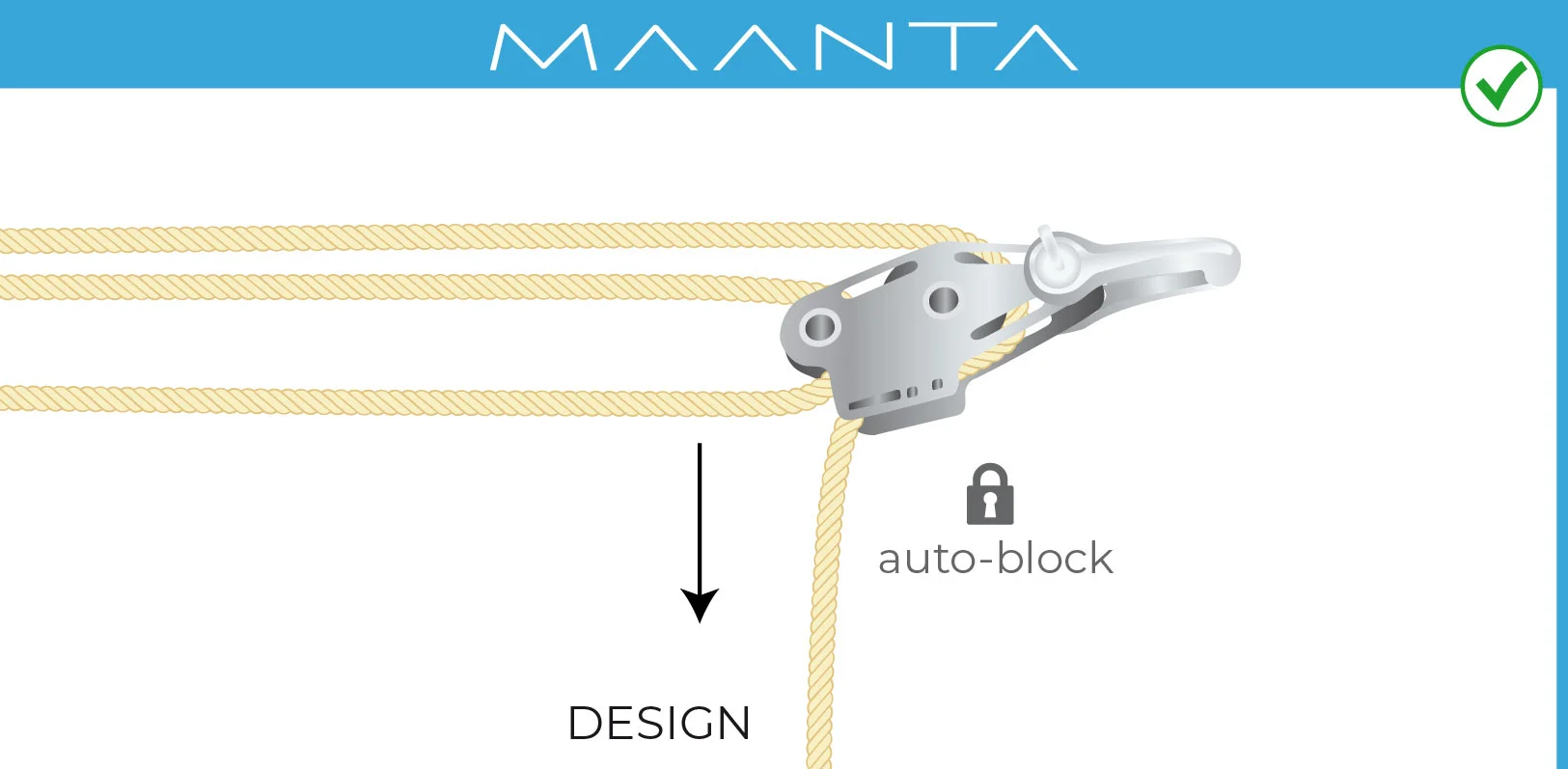

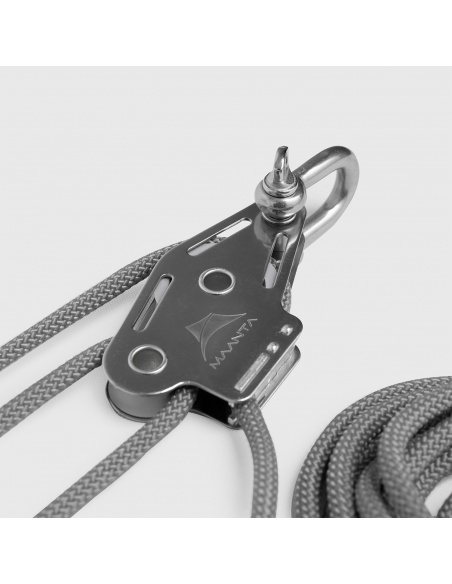

The stop / release system has been designed to be integrated. Just fit the line into the specific V to fix the sail and just lift the line up to free it from its seat.
The Muscle x3 kit is the only one able to multiply the force thanks to the pulleys. By applying only 20 kg to the top, we will be able to tension the top of 60 kg, perfect for any shade sail!

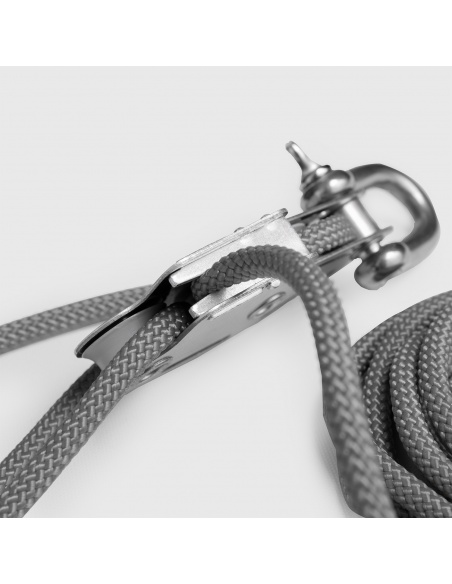

The system design is extremely clean and essential. An element integrates the cleat that effectively pinches the rope without damaging it.

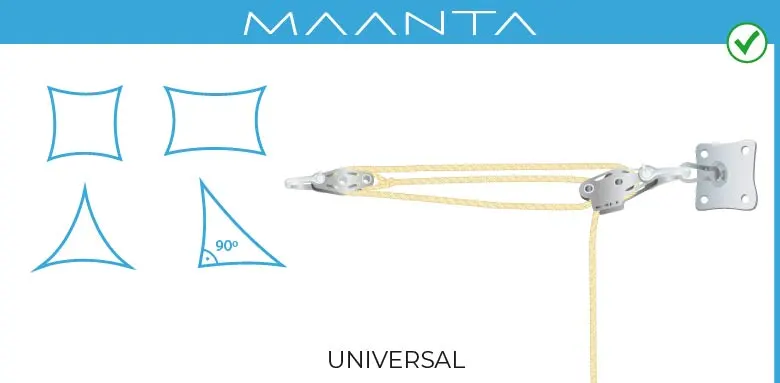

This kit can be applied to any shade sail on market!

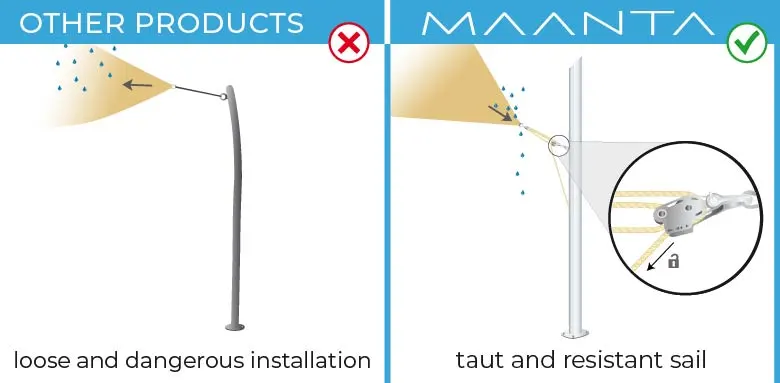

The Muscle x3 kit allows for better water drainage, better wind resistance and very quick release.

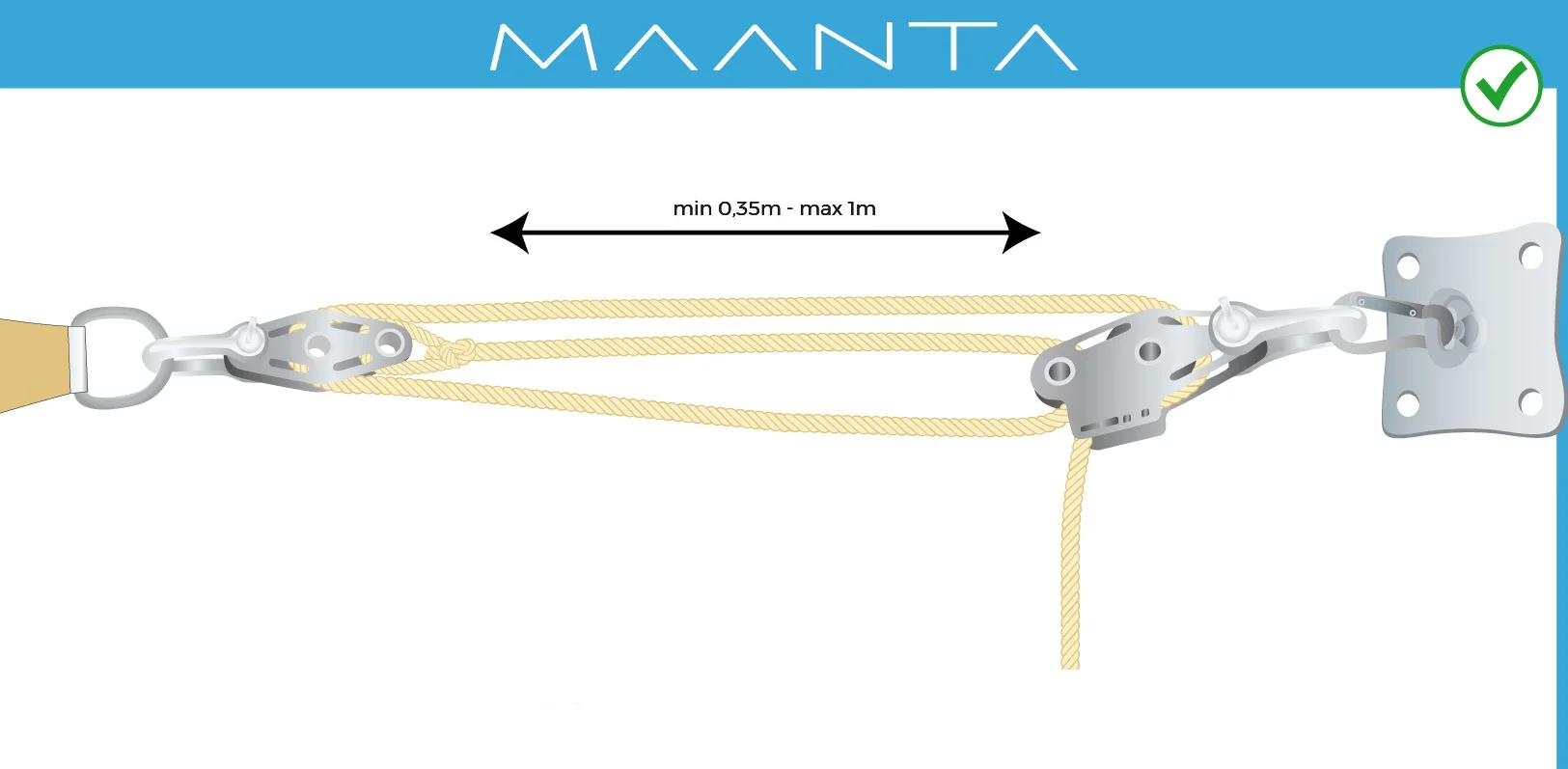

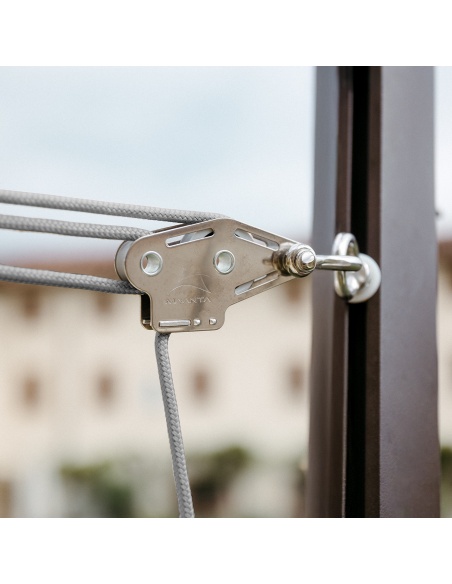

It is possible to adjust the distance between the sail and the anchor in an efficient and fast way.
We can stay closer or further away from the wall according to our needs.
Assembly instructions in PDF format with technical data, content and step-by-step instructions for assembling Muscle Pole.
Maanta shade sails - Waterproof fabrics
|Easy shade 2.0||Saill||Solaria|
|Type of fabric||Polyester||Purishade®
|Fabric weight||160 gsm||270 gsm||270 gsm|
|Max area||320 ft²||387 ft²||452 ft²|
|Persistence of color||3/5||5/5||5/5|
|Wind resistance||18-24 mph||25-31 mph||32-38 mph|
to tear / hail
|Water column||2 inches||20 inches||20 inches|
|Resistance to mold||3/5||5/5||5/5|
|Resistance to tension||3/5||4/5||5/5|
|Fabric cut||In bands||In bands||Radial|
|Years warranty ***||2||3||4|
|Cost per ft²||approx 0.5$ / ft²||approx 4$ / ft²||approx 5$ / ft²|
|Custom sizes||No||Yes (+1$/ft²)||Yes (+1$/ft²)|
* with correct application of tension 100 lbs for each corner
** with a minimum inclination of 3 ft.
*** the warranty is recognized for products installed as per our guides and only on manufacturing defects
