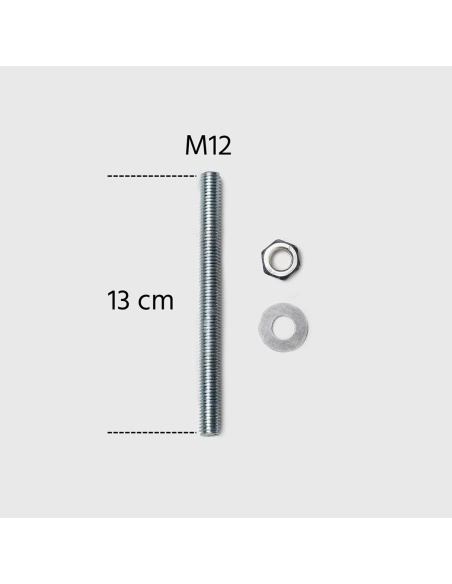

Threaded rods for poles M12x5 1/8" Set of 4 pcs in galvanized steel or stainless steel
A pole's stability depends on how well its anchoring holds. The M12 threaded rods go into the cement or masonry and secure the ground base and the wall collar, even under load. Choose them in galvanized steel for most outdoor spaces, or in stainless steel AISI 304 where humidity and exposure run higher.
- Complete set: 4 M12 threaded rods, 4 washers, and 4 nuts
- Galvanized steel or AISI 304 stainless steel: two finishes to choose from
- For the ground bases and wall collars of Maanta poles: size M12 x 5 1/8"
- Full hold with M-Plus injection mortar on cement, concrete, solid or hollow bricks
Compatible with the Alu Simple and Ulisse, EZ Mast poles
If you're looking for the threaded rods for wall plates, click here
Choose options
Free design service
After-Sales Service
Delivery 24 / 48 hours
Product Overview
Key Features

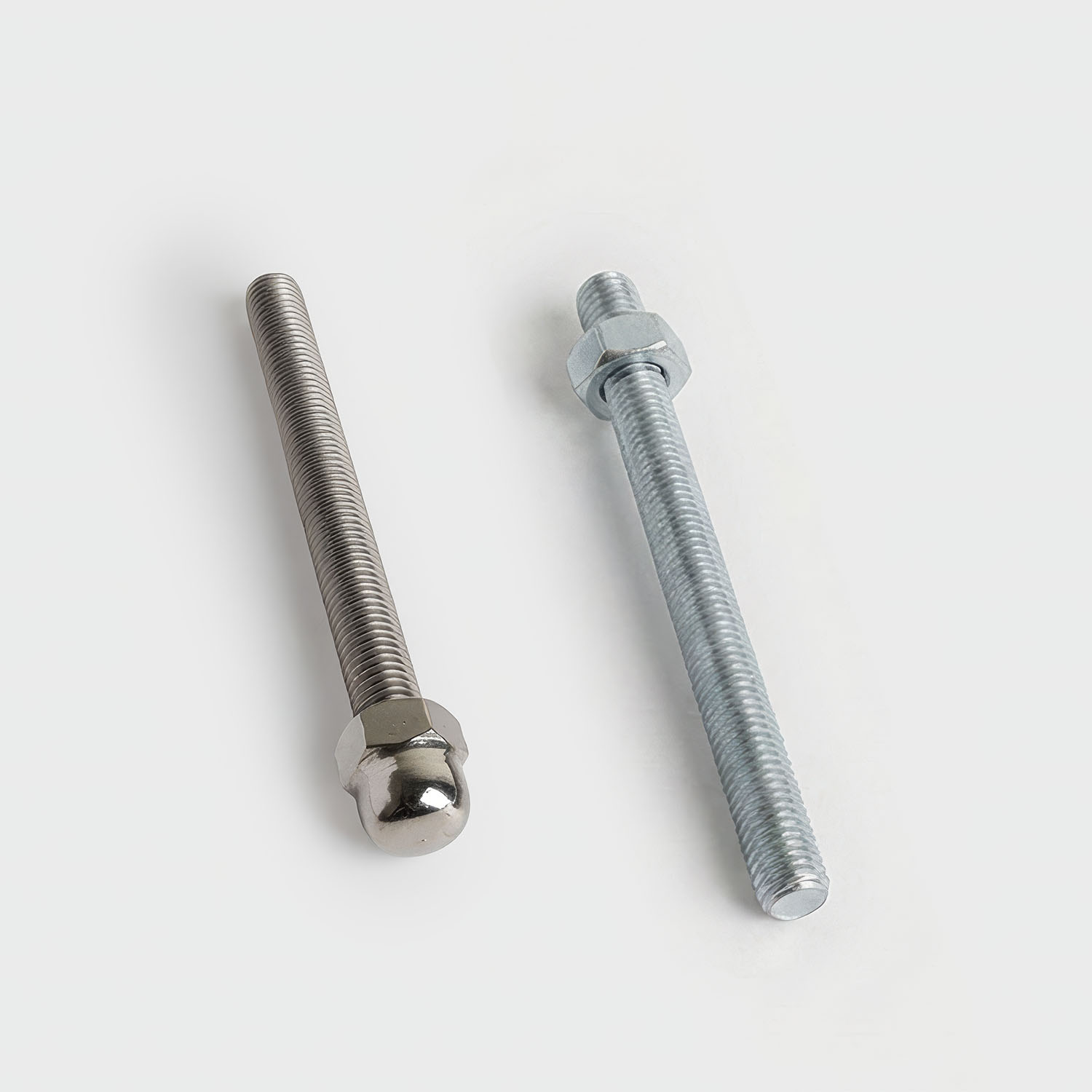

Finish
Two finishes, for two contexts
Galvanised for most outdoor applications, AISI 304 stainless steel where moisture and exposure demand greater corrosion resistance.

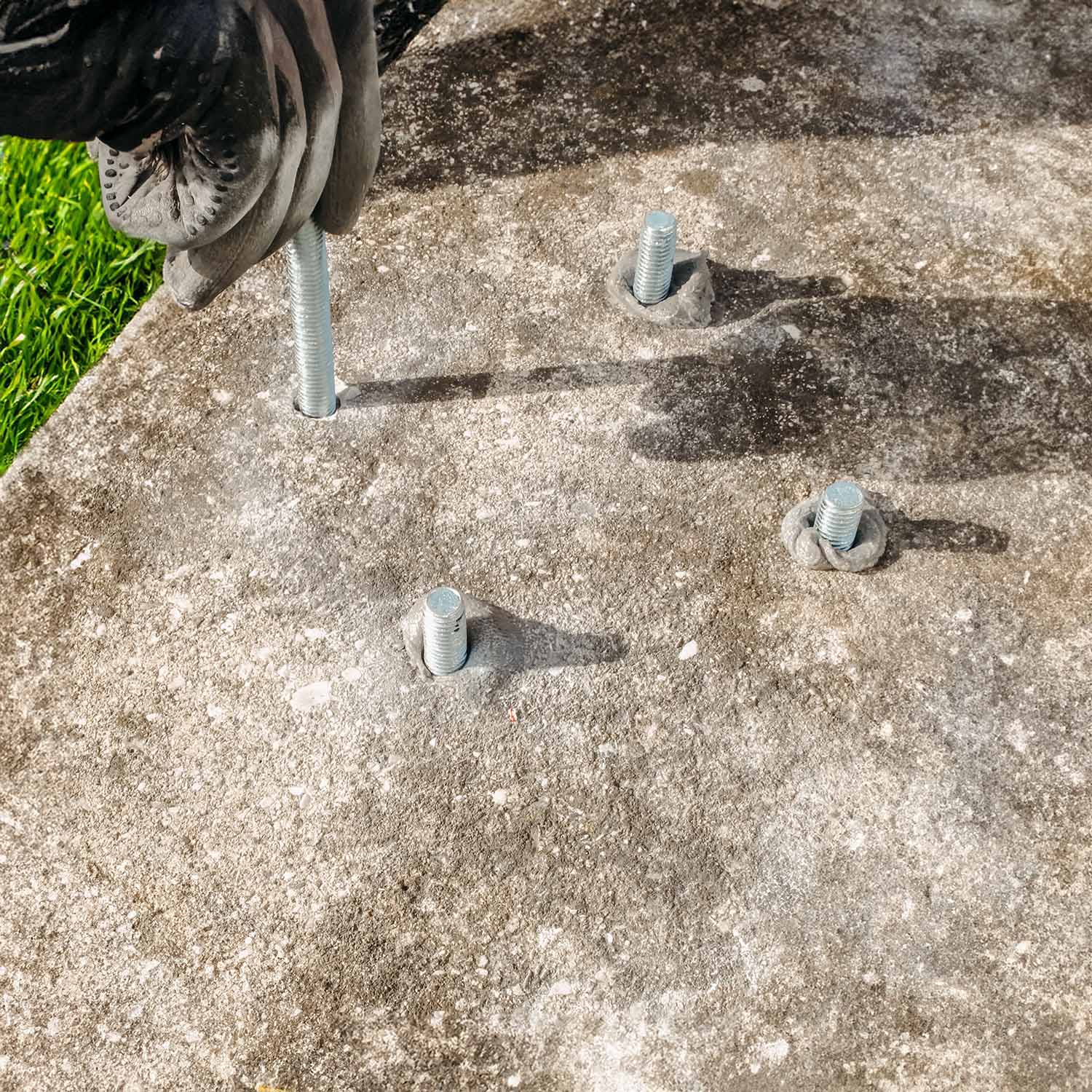

Stability
An anchorage that holds
Distributes the load with nut and washer and withstands tension, outperforming plugs or self-tapping screws.

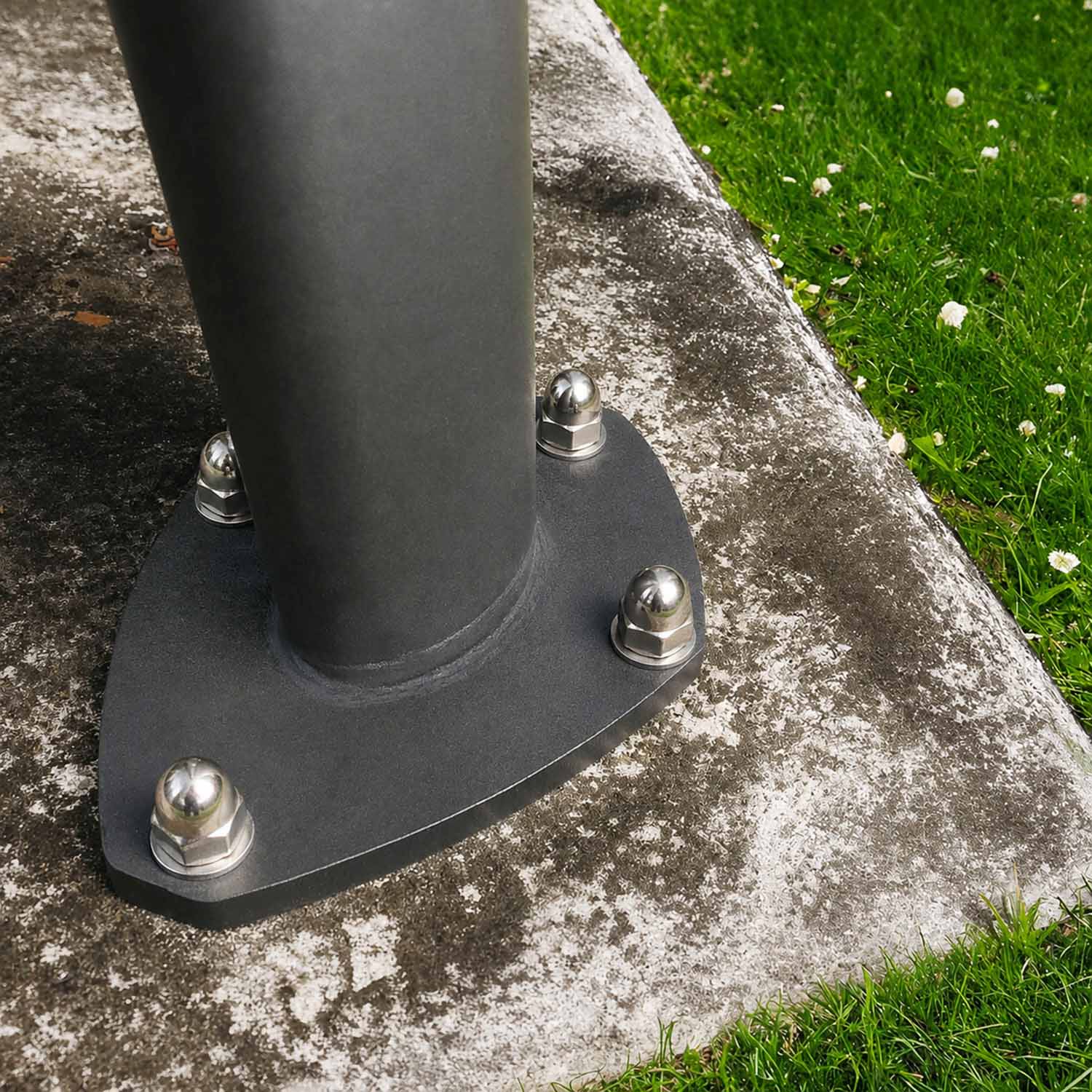

Compatibility
Designed for Maanta poles
M12 x 5 1/8" for bases and wall collars of Alu Simple, Ulisse and EZ Mast; not for wall plates.
Technical data sheet
| Model | Threaded Rods M12 x 5" |
| Available variants | Set of 4 pcs, galvanized or stainless steel finish |
| Included material | 4 M12 threaded rods 5" long, 4 washers, 4 nuts |
| Required material not included | M-Plus injection mortar, mesh/sleeve anchor (for hollow bricks) |
| Material | Galvanized steel or AISI 304 stainless steel |
Components and dimensions |

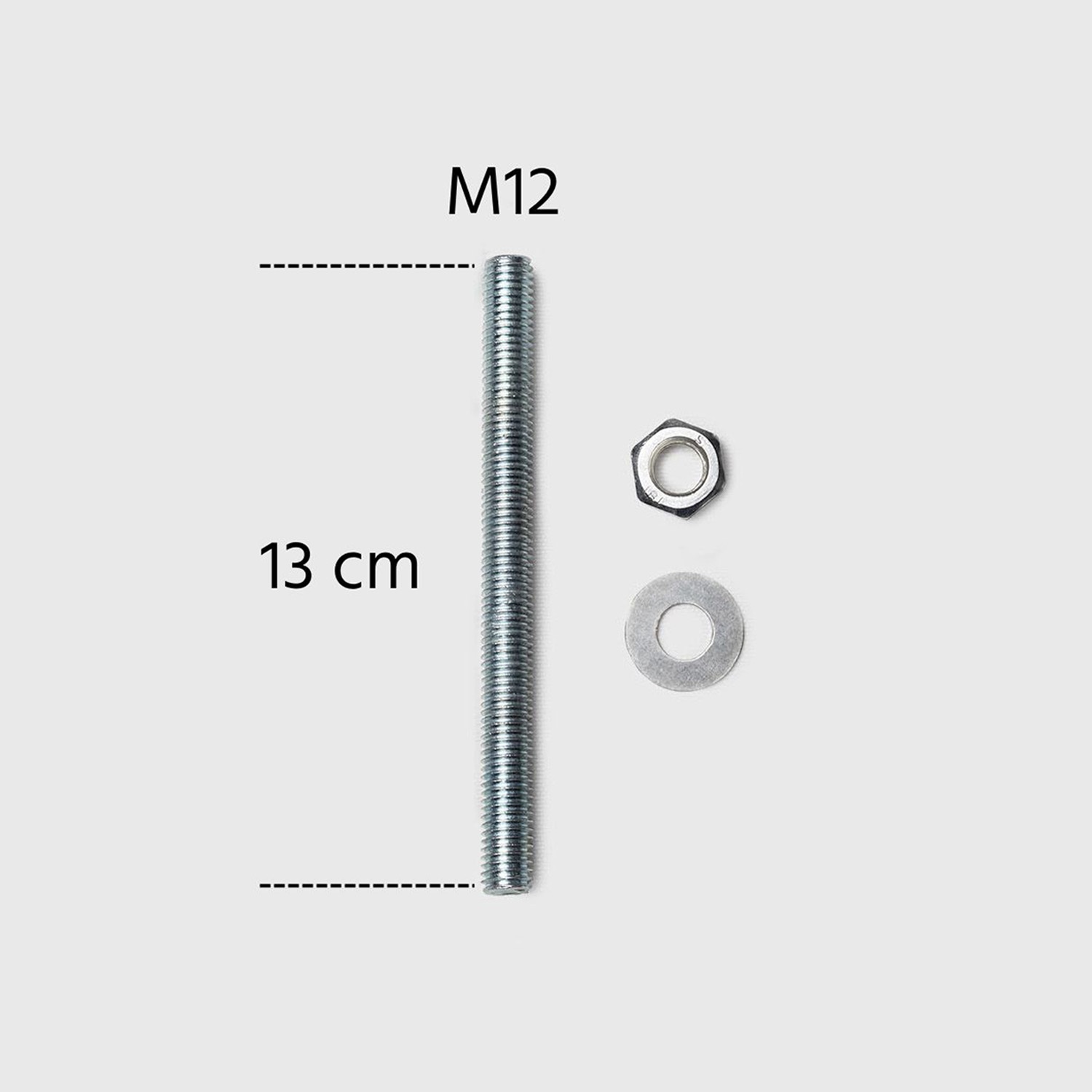

M12 threaded rod: Length 5 1/8", Ø 1/2" M12 nut: 3/4" × 3/4" × 5/16" M12 washer Thread: M12 |
| Finish | Galvanized / polished stainless steel |
| Load direction | Stainless steel: axial (longitudinal) |
| Material tensile strength | Stainless steel: ≥ 600 N/mm² |
| Resistance | Suitable for outdoor use; AISI 304 stainless steel with higher corrosion resistance |
| Compatibility | Alu Simple, Ulisse, EZ Mast, EZ Mast Inox (bases and wall collars). NOT compatible with wall plates |
Packaging and warranty |
|

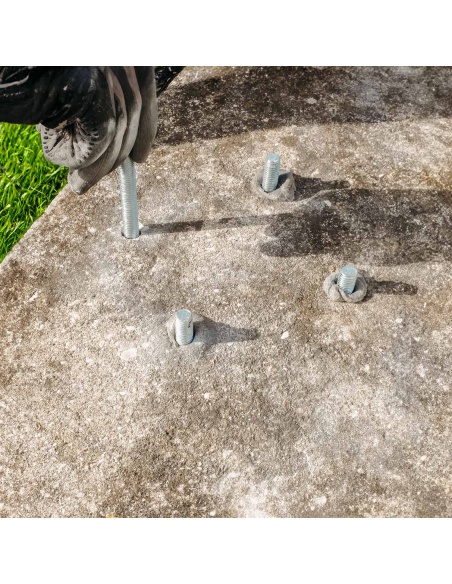

| Recommended installation | Ø 9/16" drill bit; blow out the dust; M-Plus injection mortar; for hollow bricks use a mesh sleeve; insert the rod while rotating it, leaving 3/4" protruding; wait for it to cure; insert base/collar; secure washers and nuts |
| Recommended tightening torque | Concrete 40 Nm; Solid brick 25 Nm; Hollow brick 6 Nm |
| Weight | 0.9 lbs |
| Packaging | 11 3/4" × 9 7/8" |
| Warranty | 2 years |
| Lorem ipsum | Lorem ipsum |
Read less -
Read more +
What you receive with the Threaded Rods for poles
FAQ
FAQ
It depends on where you install it. Galvanized finish works well for most outdoor installations; AISI 304 stainless steel offers higher corrosion resistance and is the better choice in high-humidity environments or where prolonged exposure is expected. It also pairs perfectly with EZ Mast Inox poles.
Because they provide a mechanically stronger hold, ideal for significant static loads and structures subject to constant tension and thrust. The load is distributed evenly through nuts and washers, ensuring greater durability over time.
For base plates and wall collars of Alu Simple, Ulisse, and EZ Mast, including the EZ Mast Inox version. The M12 x 13 cm size is selected for these models.
No, these are designed for pole installation. For wall plates, you'll need a different type of bar, M10 x 12 cm, which you can find on our website.
The set includes 4 bars, the standard supply for one fixing point between base and collar. For multiple poles or additional anchor points, simply add more sets.
Galvanized steel protects against corrosion through a zinc coating; AISI 304 stainless steel resists rust thanks to its alloy composition and performs better in environments with higher humidity and prolonged exposure. The choice comes down to long-term outdoor performance — not sizing, which is identical across both options.
It offers higher corrosion resistance than galvanized steel, but AISI 304 is not a marine-grade stainless steel like AISI 316. In highly saline environments, it holds up well with periodic inspection and an occasional rinse with fresh water.
M12 diameter, 5 1/8" length (130 mm), standard right-hand thread: they use common M12 nuts and washers.
The holding strength depends mainly on the injection mortar used and the type of substrate. The stainless steel rods have a minimum breaking load of 600 N/mm².
Drill with a Ø14 mm bit, blow out the dust, inject the injection mortar M-Plus, and insert the rod by rotating it, leaving about 3/4" protruding. Wait for it to cure, then place the base or collar and secure with a washer and nut.
Solid concrete, reinforced concrete, solid brick, and other hard surfaces. For hollow or fragile substrates, such as hollow bricks, use a mesh sleeve with injection mortar.
Yes, we recommend it: M-Plus injection mortar gives the bar a full and lasting grip in the support.
The torque depends on the substrate: concrete approximately 40 Nm, solid brick approximately 25 Nm, hollow brick approximately 6 Nm.
Yes: it's the size selected for Maanta poles and provides a solid grip depth. Leave about 3/4" of the rod protruding; with the sleeve on, push it all the way in.
Yes: it makes drilling easier and keeps the hole clean, improving the grip of the injection mortar.
Occasionally check the tightening of nuts and washers. For the stainless steel version in humid areas or near the ocean, a rinse with fresh water removes salt deposits and extends their lifespan.
Two years. They are sold directly by Maanta, with the warranty managed directly by us.
Reach out to us: Maanta's support team will get back to you within a few business days and work out a solution with a set date.
