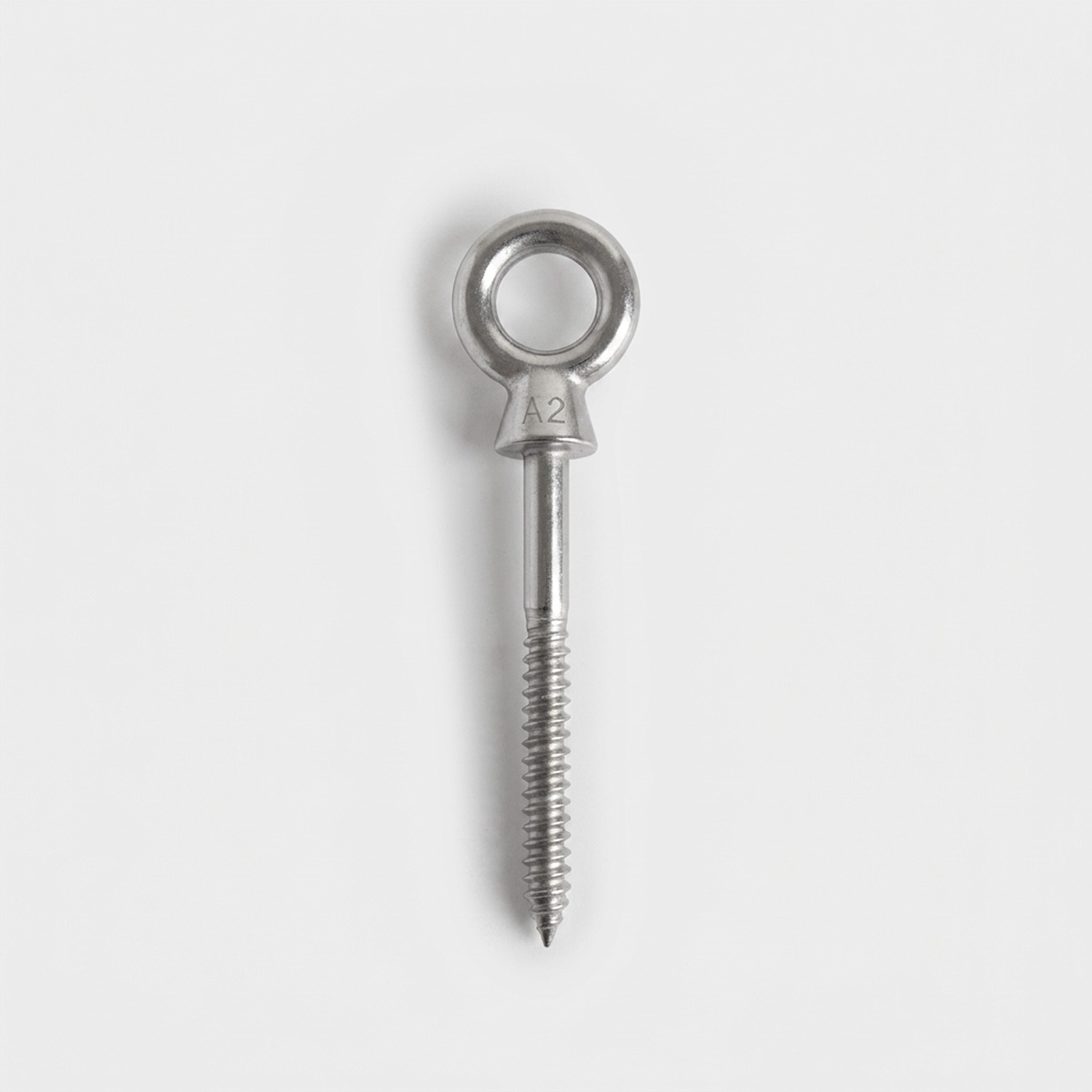

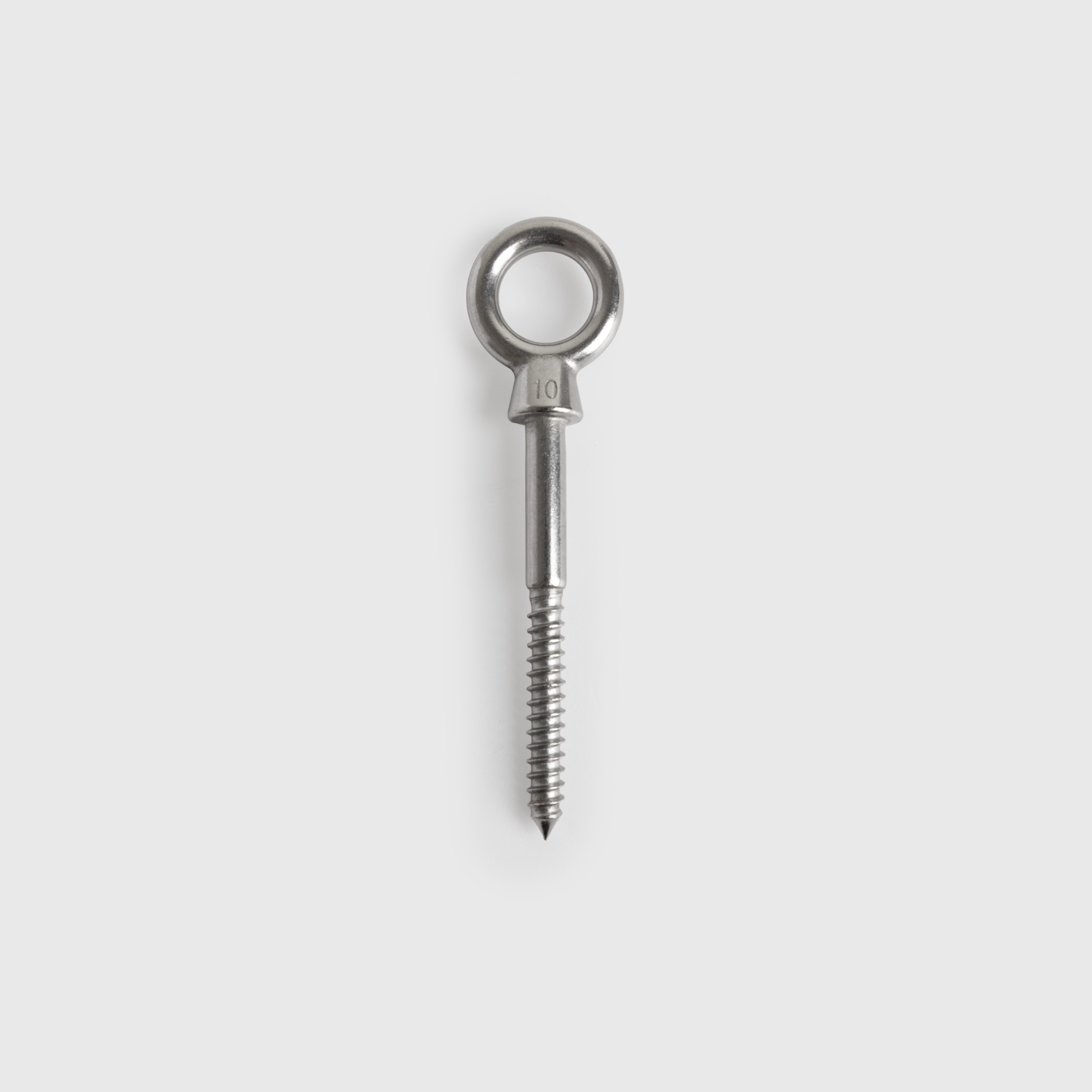

Wood Screw Eye Bolt 304 Stainless Steel Eye Bolt for Shade Sails

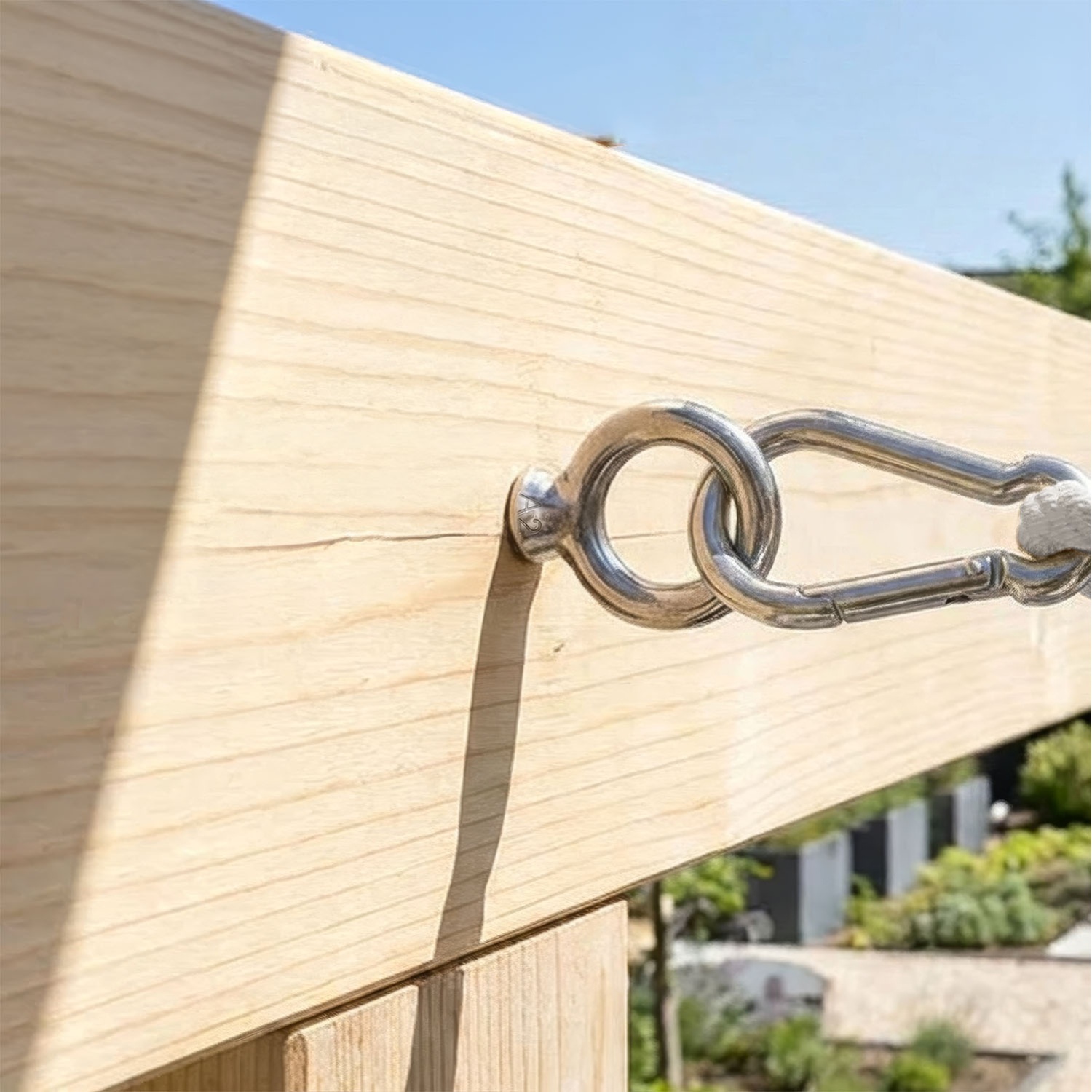

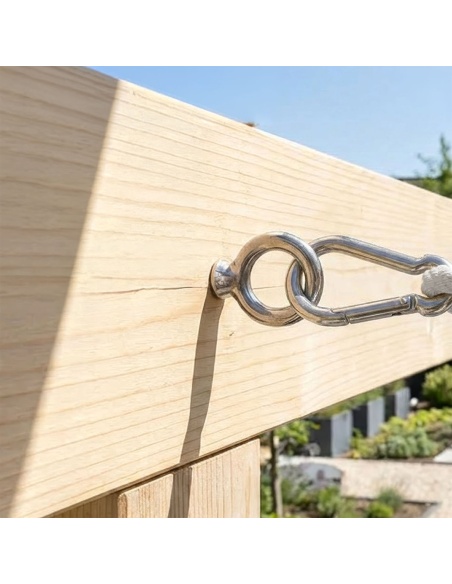

The wood screw eye bolt turns a beam, a joist or a pole into an anchor point for your shade sail. It screws straight into the grain, with no anchors or plates, and the wide eye holds a carabiner and a turnbuckle. It's made of 304 stainless steel, with a declared working load of 331 or 485 lbs.
- Declared working load: 331 lbs (M10×100) and 485 lbs (M12×120), with a fourfold safety margin.

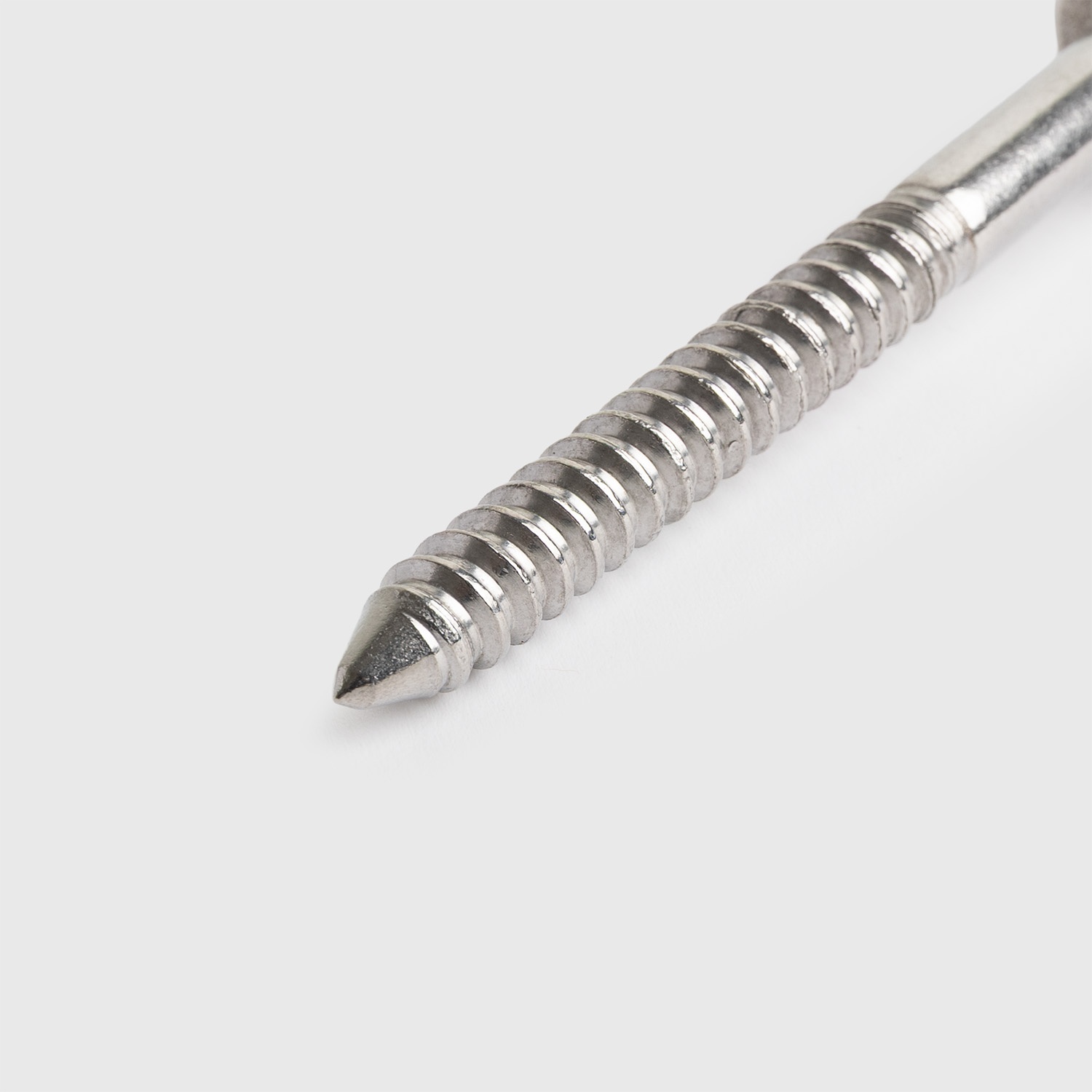

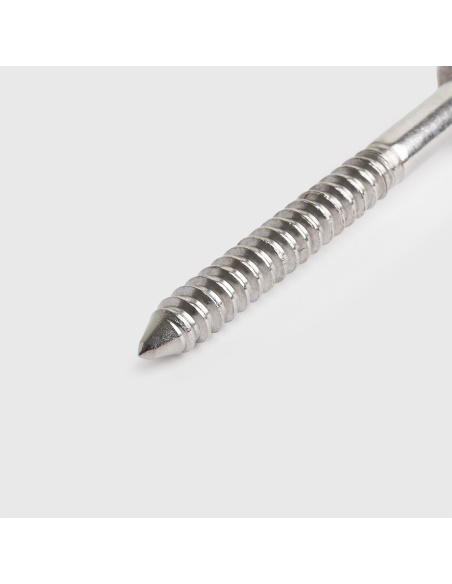

- Deep thread of 2 3/8" or 3 1/8": the grip works inside the beam, not on the surface.

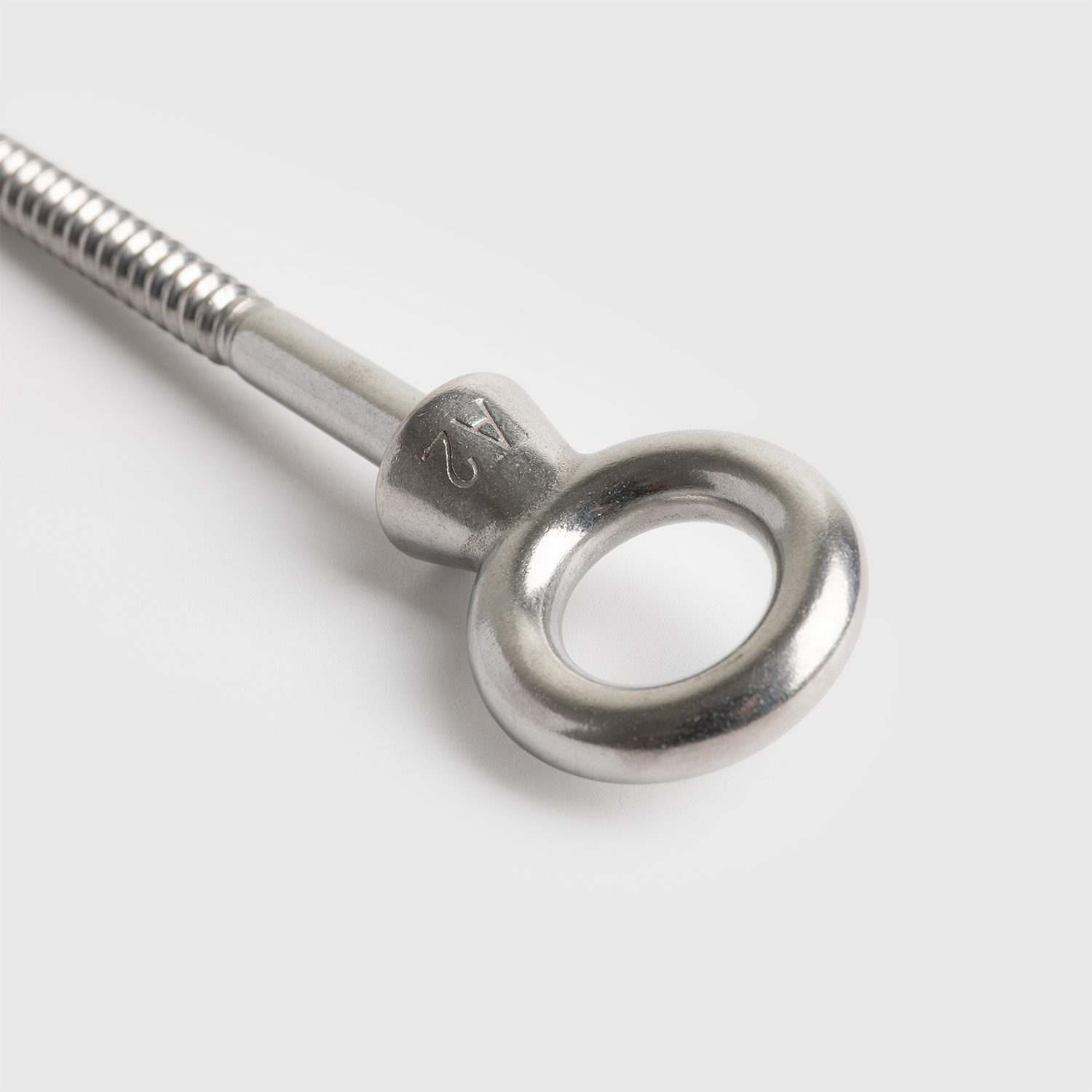

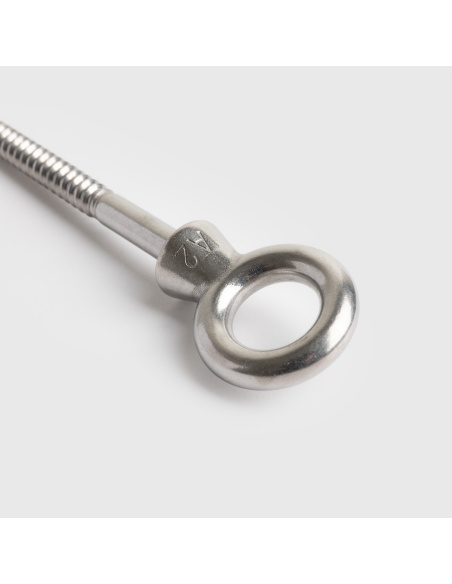

- Oversized eye of 7/8" or 1": a carabiner and a turnbuckle both fit, even together.
- Two sizes available: M10×100 mm and M12×120 mm, to match your shade sail.
Choose options
Free design service
After-Sales Service
Delivery 24 / 48 hours
Product Details
Everything you need: guides and instructions
| Document / Video | Action |
|---|
Technical Sheet
Product type |
Eye bolt with wood screw thread |
Material |
304 stainless steel, turned (rust-free, suitable for permanent outdoor exposure) |
Finish |
Polished |
Available variants |
Eye bolt M10×4" Eye bolt M12×4 3/4" |
Nominal diameter |
Eye bolt M10×4": 3/8" Eye bolt M12×4 3/4": 1/2" |
Total length (ring included) |
Eye bolt M10×4": 6" Eye bolt M12×4 3/4": 7" |
Thread length |
Eye bolt M10×4": 2 3/8" Eye bolt M12×4 3/4": 3 1/8" |
Ring inner diameter |
Eye bolt M10×4": 7/8" Eye bolt M12×4 3/4": 1" |
Working load limit (WLL) |
Eye bolt M10×4": 330 lbs Eye bolt M12×4 3/4": 485 lbs |
Breaking load |
Eye bolt M10×4": 1,320 lbs Eye bolt M12×4 3/4": 1,940 lbs |
Safety factor |
1:4 on breaking load |
Material tensile strength |
≥ 515 N/mm² |
Saline / coastal environments |
Suitable |
Compatible supports |
Load-bearing wood only (beams, joists, poles) Not suitable for masonry and concrete |
Packaging and warranty |
|
Package contents |
1 wood eye bolt |
Weight |
Eye bolt M10×4": 3.4 oz Eye bolt M12×4 3/4": 7.7 oz |
Packaging |
Single protective pouch |
Warranty |
2 years |
Read less -
Read more +
FAQ
FAQ
It creates a fixed, permanent anchor point on a load-bearing wooden structure: once screwed in, the ring stays in place, ready for a carabiner and shade sail tensioner.
The M10×100 has a working load of 330 lbs, a 2 3/8" thread, and a 7/8" ring; the M12×120 goes up to 485 lbs, with a 3 1/8" thread and a 1" ring.
It depends on the size of the fabric and the expected tension: for large or very taut shade sails, go with the M12×120. If you're unsure, our free design service will point you to the right size.
No. The eyebolt is a fastening accessory: the shade sail is sold separately.
One for each corner of the shade sail you want to attach to a wooden structure. The remaining corners can be secured with wall plates or poles.
Compatible with all fixed shade sails in the catalog, using a carabiner and turnbuckle: it is part of the Maanta anchoring system.
Yes: the carabiner connects the corner of the shade sail to the ring, while the turnbuckle adjusts the tension. You can find both among Maanta's anchor accessories.
304 stainless steel, turned and polished: it stays outdoors all year long without rusting.
It is a stainless steel suitable for permanent outdoor exposure, including in coastal areas.
The declared working load is 330 lbs for the M10×100 size and 485 lbs for the M12×120, with verified breaking loads of 1,320 lbs and 1,940 lbs.
It's the weight at which an anchor can safely operate: one quarter of the load that would cause it to fail, leaving a safety margin for gusts and sudden stress.
60 mm (2-3/8") on the M10×100 size, 80 mm (3-1/8") on the M12×120: the grip works inside the beam, not on the surface.
22 mm (7/8") inner diameter on the M10×100, 25 mm (1") on the M12×120: carabiner and tensioner fit together with ease.
5 7/8 in for the M10×100 size, 7 1/8 in for the M12×120, ring included.
97 grams for the M10×100, 219 grams for the M12×120.
Yes, it is rated suitable for saline and coastal environments. If you live near the ocean, we recommend cleaning the surface periodically to keep it in top condition.
The values refer to the eye bolt screwed all the way into sound, load-bearing wood. Degraded wood or partial grip will reduce holding strength: when in doubt, have the structure evaluated by a professional.
It comes down to three things, in order of importance.
- The first is the load acting on the anchor point, which varies with the size of the shade sail, the fabric, and wind exposure.
As a general rule:
the 10×100 (working load 330 lbs) is a good fit for shade sails up to about 11'10" per side, made with breathable shade fabric and installed in a sheltered spot;
the 12×120 (working load 485 lbs) is the right choice for shade sails from around 13' per side and up, in exposed or windy areas, and whenever the sail is tensioned under significant force.
Fabric is the most underestimated factor: a waterproof panel does not let wind pass through, so the load on the anchor point increases considerably. For this reason, with a waterproof shade sail it is advisable to go with the 12×120 even on medium-sized installations. - The second factor is the beam. The 12×120 has an 80 mm thread and requires solid structural wood at least 4" deep in the driving direction. If the beam is narrow — a joist around 2½"–3" — the 10×100 driven all the way in holds better than a 12×120 that only partially engages: the rated load applies only when the full thread is embedded in the wood.
- The third is what needs to fit through the ring. If you plan to attach both a carabiner and a tensioner together, the 1" ring of the 12×120 works more comfortably than the 7/8" ring of the 10×100.
If you are still unsure, our free design service will point you to the right size for your shade sail.
Yes: use a drill bit slightly smaller than the thread core diameter, to a depth roughly equal to the thread length. If you're unsure about the right bit size, our customer service team will point you in the right direction.

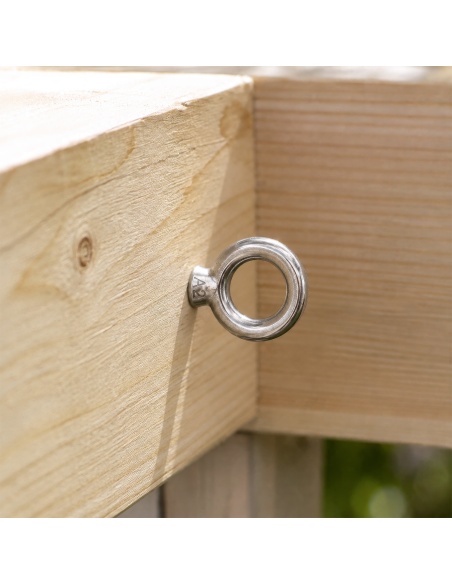

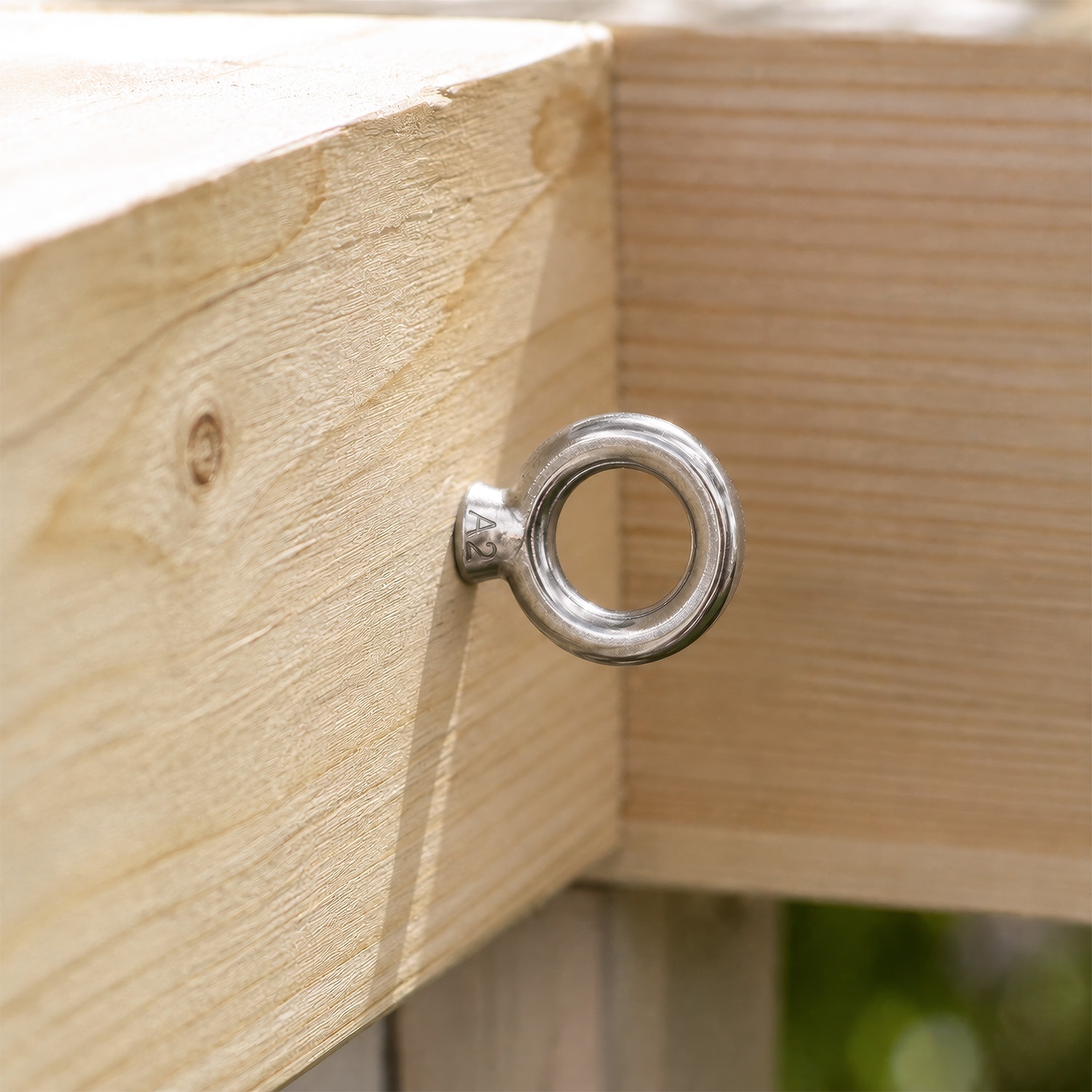

Drill a pilot hole into the beam, then screw in the eye bolt until the entire thread is embedded in the wood, with the ring oriented in the direction of pull.
Into load-bearing wood in good condition: beams, joists, and poles. Never into thin panels or deteriorated wood.
No: the wood thread is not designed for wall anchors. For brick and concrete surfaces, there are wall plates and anchoring solutions available in the product line, such as Landa.
Until the entire thread is engaged in the wood and the ring stays oriented toward the shade sail: that's how the load transfers into the structure.
After pre-drilling, you screw it in by hand; for the last few turns, you can use a bar inserted through the ring as a lever — without marking the surface.
Two years from the date of purchase.
Material and workmanship defects.
It is automatically activated upon delivery.
Reach out to our customer service team with photos and a description of the issue: we'll take care of arranging the replacement for you.
If it hasn't shipped yet, in most cases yes: contact customer service right away.
Our free design service is here to help — just visit the 'Contact' page: we'll guide you through the best fixing points and accessories for your shade sail.
